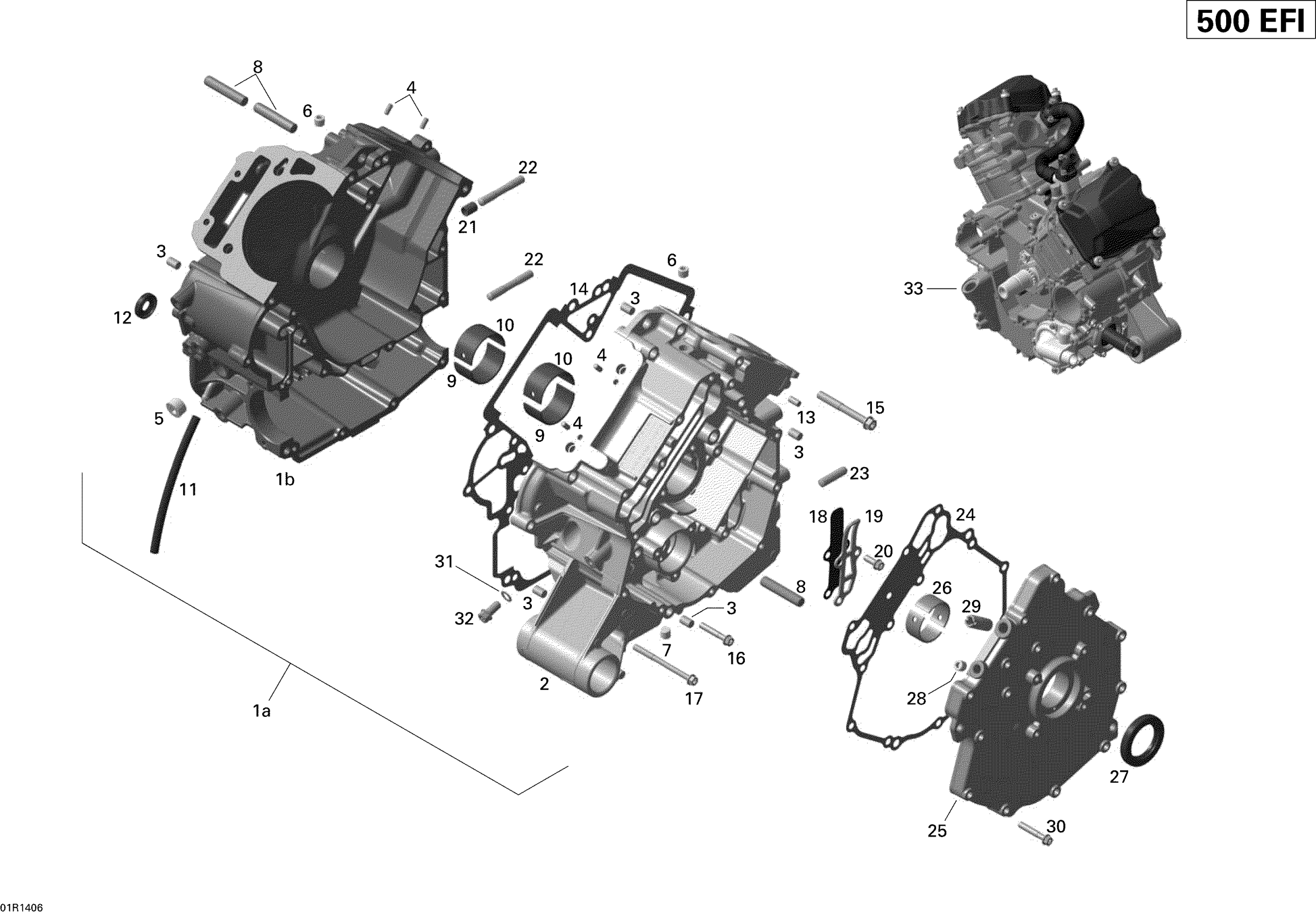

Can-Am Renegade 500EFI STD, 2014 Crankcase Diagram
#
Description
Price
1a
Crankcase Ass'y | Includes 1a to 14
420685317
Unavailable
1b
Not Available As Spare Part - Friction Washer
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Center Pin 8 X 12
420632010
Unavailable
4
Drive Pin 5 X 10
420929650
Unavailable
6
Plug Screw M10 X 1
420641323
Unavailable
9
Plain Bearing
420233960
Unavailable
10
Plain Bearing
420233965
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
13
Needle Pin
420932780
Unavailable
14
Gasket
420651220
Unavailable
15
Torx Flange Screw M8 X 65
420440402
Unavailable
17
Torx Flange Screw M6 X 75
420440657
Unavailable
18
Reed Valve
420224721
Unavailable
19
Reed Valve Stop
420224725
Unavailable
20
Torx Flange Screw M6 X 16
420641048
Unavailable
21
Dowel Pin 10 X 13
420929670
Unavailable
22
Stud
420240816
Unavailable
23
Stud
420840718
Unavailable
24
Gasket
420651211
Unavailable
25
PTO Cover Ass'y | Includes 25a to 29
420612335
Unavailable
26
Bearing Sleeve
420233995
Unavailable
27
Oil Seal
420631933
Unavailable
28
Plug Screw M10 X 1
420641323
Unavailable
29
Hose Nipple
420256332
Unavailable
30
Torx Flange Screw M6 X 35
420440274
Unavailable
32
Torx Flange Screw M8 X 16
420440852
Unavailable
33
Long Block
420049022
Unavailable
