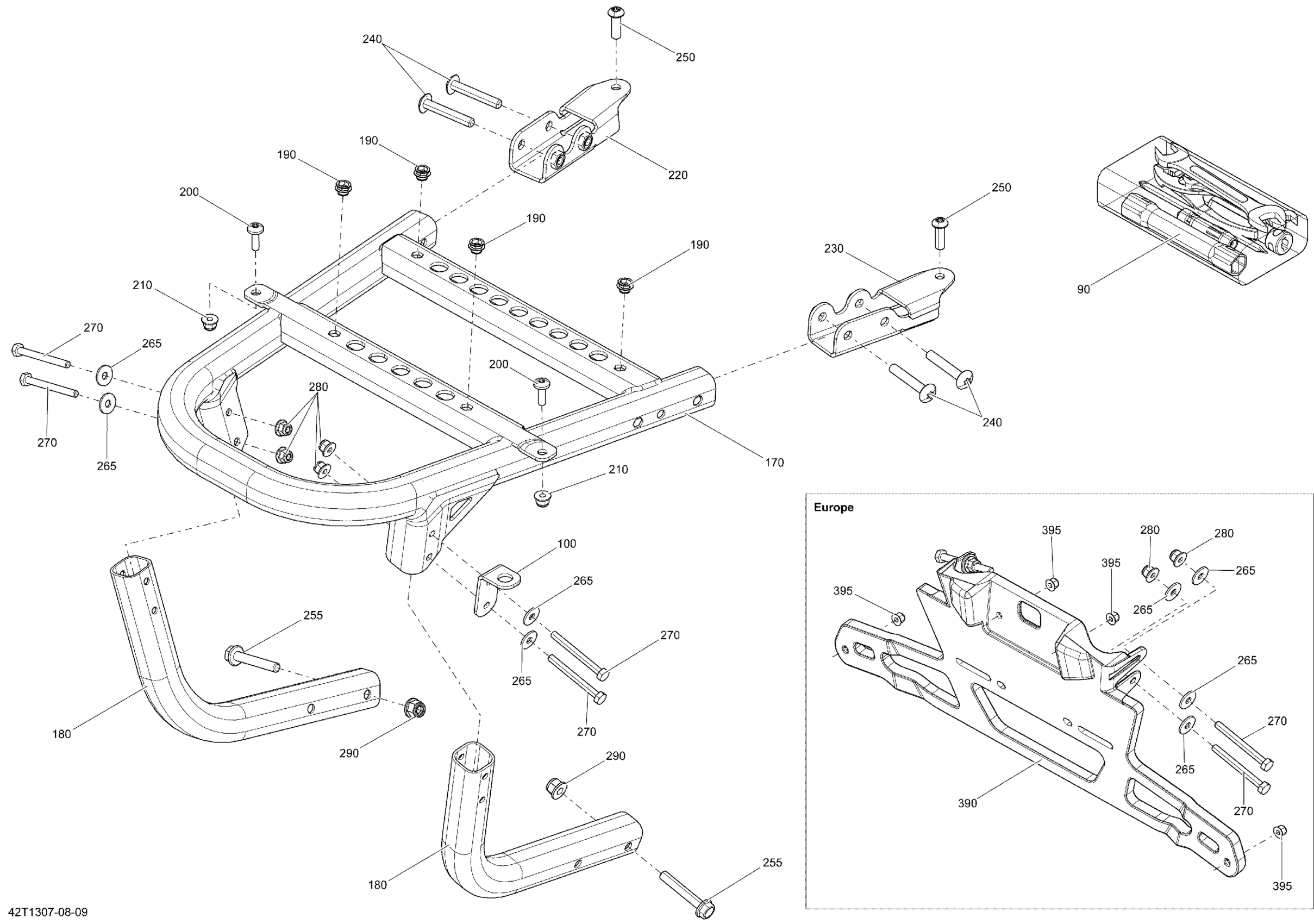

Can-Am Renegade 500EFI STD, 2013 Rear Cargo Box Diagram

Description

Price

Tool Kit

704700162

$44.99

100

Flag Support | Except Europe

705005837

Unavailable

170

Kit Rear Bumper

715001894

$239.97

180

Rear Tube

705004981

$32.28

190

Threaded Insert M6 X 1.0

250100242

Unavailable

200

Torx Screw M6 X 20

250000712

$1.74

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

220

LH Front Bracket

705004977

$32.28

230

RH Front Bracket

705004978

$32.28

240

Torx Truss Screw M8 X 50

250000761

$6.18

250

Torx Screw M8 X 25, Scotch Grip

250000283

$1.91

255

Hex. Flange Screw M8 X 50

207685044

$1.39

265

Flat Washer 6 mm

234062410

$0.64

265

Flat Washer 6 mm

234062410

$0.64

270

Hex. Screw M6 X 60

207066044

$0.56

280

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

290

Hex. Flange Elastic Nut M8

233281414

$1.14

390

Plate Support | Europe

708300553

$22.28

395

Hex. Flange Elastic Nut M5

233251414

$1.66
