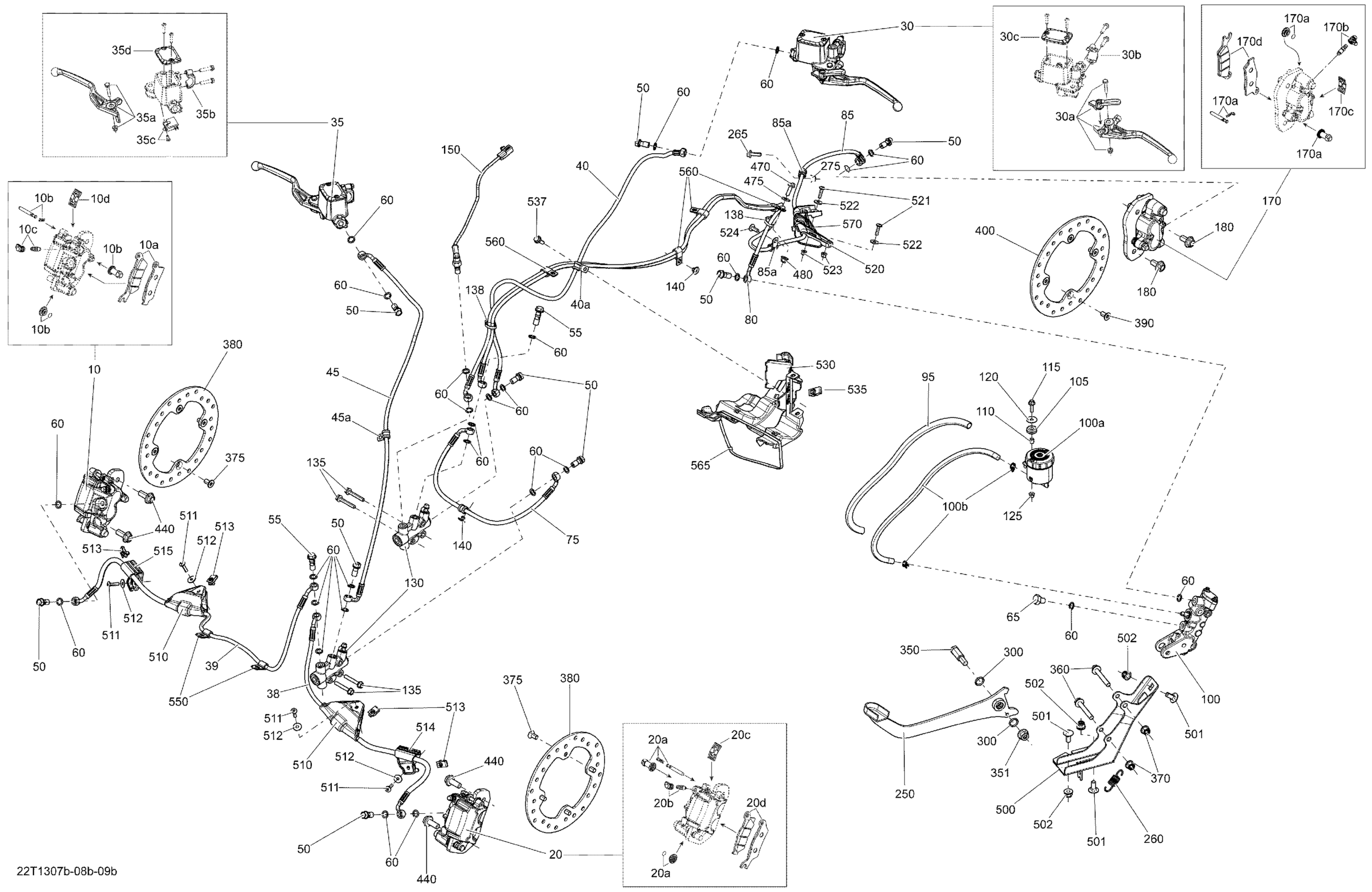

Can-Am Renegade 500EFI STD, 2013 Brakes Europe Diagram

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$218.49

RH Organic Brake Pad Kit

705601014

$40.37

Pin Set

705601016

$9.98

Bleeding Screw

705601017

$6.45

Retaining Spring

705601018

$7.98

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$218.49

Pin Set

705601016

$9.98

Bleeding Screw

705601017

$6.45

Retaining Spring

705601018

$7.98

LH Organic Brake Pad Kit

705601015

$40.37

LH Front Master Cylinder Ass'y | Includes 11 to 14

705601431

$212.28

Lever Set

705601013

$59.97

Clamp And Screw Kit

507032477

$23.05

Cap Set

219800096

$23.05

RH Front Master Cylinder Ass'y | Includes 15 to 19

705601432

$276.89

Lever Set

705601011

$69.20

Clamp And Screw Kit

507032477

$23.05

Kit Switch

705601012

$55.35

Cap Set

219800096

$23.05

LH Front Brake Hose

705601523

$55.35

RH Front Brake Hose

705601522

$55.35

LH BRAKE HANDLE LINE ASS'Y - Call your local BRP dealership | Includes 22 to 23

705601525

Unavailable

Clamp

293650256

$4.36

RH BRAKE HANDLE LINE ASS'Y - Call your local BRP dealership | Includes 24 to 25

705600970

Unavailable

Clamp

293650256

$4.36

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

Banjo Bolt

705600958

$7.60

Copper Washer

705601628

$4.34

Hex. Screw M10 X 14, Scotch Grip

250000163

$3.98

BRAKE LINE - Call your local BRP dealership

705600981

$32.28

OUTLET HOSE, MASTER CYLINDER - Call your local BRP dealership

705600980

$55.35

RH REAR BRAKE LINE ASS'Y - Call your local BRP dealership | Includes 32 to 33

705600971

Unavailable

Clamp

293650256

$4.36

Tubing 10 MM 1000MM Long

219704407

$2.20

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$216.89

Oil Tank

705601020

$36.89

Oil Housing Hose

705601019

$15.35

Grommet

414036300

$2.22

Bushing

293900112

$10.14

Hex.Flange Screw M5 X 20

207652044

$1.56

Flat Washer

224060201

$1.15

Hex. Flange Elastic Nut M5

233251414

$1.66

Splitter

705600994

$147.66

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

Tie-Rap 180 mm

414115200

$0.09

Pop Rivet 3/16"

390406500

$0.70

Brake Switch

705601250

$59.97

RH Rear Brake Caliper | Includes 41 to 45

705602190

$219.97

Pin Set

705601016

$9.98

Bleeding Screw

705601017

$6.45

Retaining Spring

705601018

$7.98

RH Organic Brake Pad Kit

705601014

$40.37

Hex. Flange Screw M10 X 20

207502046

$1.74

Deep Black, Brake Pedal

705602163

$147.66

Brake Pedal Spring

705600792

$9.22

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

O-Ring

293300144

$3.98

Shoulder Screw M10

250000513

$5.54

Hex. Flange Elastic Nut M10

233201436

$1.74

Hex. Flange Screw M8 X 55

207685544

$4.41

Hex. Flange Elastic Nut M8

233281414

$1.14

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

Disc Brake

705600999

$85.49

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

Disc Brake

705600999

$85.49

Hex. Flange Screw M10 X 25

207502546

$1.74

Hex. Flange Screw M6 X 20

207662044

$1.66

Flat Washer 6 mm

234062410

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Brake Pedal Bracket

705202000

$36.89

Carriage Bolt, M8 X 20

207782044

$1.56

Hex. Flange Elastic Nut M8

233281414

$1.14

Hose Guard

705601893

$4.60

Torx Screw M5 X 20

250000724

$1.39

Washer M5

250200025

$0.61

Panel Nut M5 X 0.8

250000958

$3.48

LH Hose Bracket

705601048

$4.60

RH Hose Bracket

705601049

$4.60

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

Torx Screw M5 X 20

250000792

$1.74

Washer M5

250200025

$0.61

Elastic Flange Nut M5

233251494

$1.74

Torx Screw M6 X 16

250000755

$0.72

Front Hose Bracket

705600983

$12.68

Panel Nut M6 X 1.0

250100198

$1.73

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Clamp

293650219

$0.85

Clamp

293650220

$0.85

Tie Rap, 533 mm

293750047

$1.83

Tie Wrap 368 mm

293750008

$0.85
