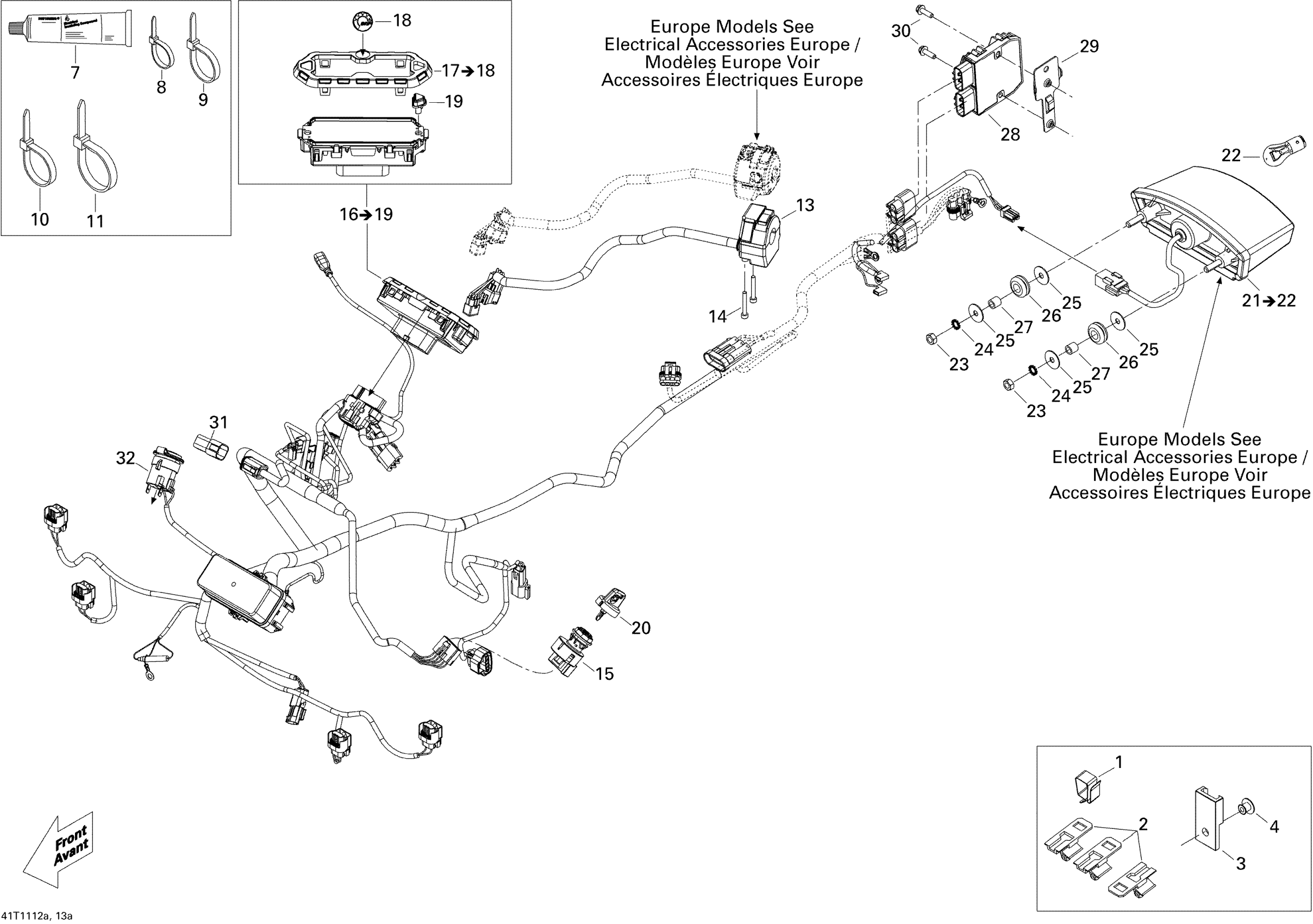

Can-Am Renegade 500 EFI, 2011 Electrical Accessories Diagram

#

Description
Price

1

Clip

414227300

$1.45

2

Housing Support

515175283

$8.43

3

Clip

270000141

$8.33

4

Pop Rivet 3/16"

390402400

Unavailable

7

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

8

Tie Wrap 94 mm | 4X4

293750001

$0.83

9

Tie-Rap 173 mm

293750009

Unavailable

10

Tie-Rap 180 mm

414115200

$0.09

11

Tie Wrap 368 mm

293750008

$0.85

13

Multi-Fonction Handle

710000791

Unavailable

13

Multi-Fonction Handle

710000791

Unavailable

13

Multi-Function Handle

710004040

Unavailable

14

Socket Head Screw M5 X 35

205053588

Unavailable

14

Socket Head Screw M5 X 35

205053588

Unavailable

15

Ignition Switch | Includes 16 to 17

710002324

$77.66

16

Calibrated Speedometer | Includes 16 to 17

710003288

Unavailable

17

Trim Ring Ass'y

710001183

Unavailable

18

BRP Logo13 mm

704904615

$9.66

19

Button

710001473

$12.68

20

Black, Electronic Key

710000817

Unavailable

21

Tail Light Ass'y | Europe Models, Includes 53 To 54

710000760

$55.35

21

Tail Light Ass'y | Includes 19 to 20

710001041

$59.97

21

Tail Light Ass'y | Includes 19 to 20

710001041

$59.97

22

Bulb

520000758

$7.49

23

Hex. Nut M6

232061600

Unavailable

24

External Serrated Lock Washer 6 mm

234461608

Unavailable

25

Flat Washer

224060201

Unavailable

26

Grommet

709000582

$4.38

27

Bushing

293900105

Unavailable

28

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

29

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

30

Hexagonal Head Screw

210262050

$1.74

31

Diagnostic Connector

278002704

Unavailable

32

DC Outlet

710001248

$31.17
