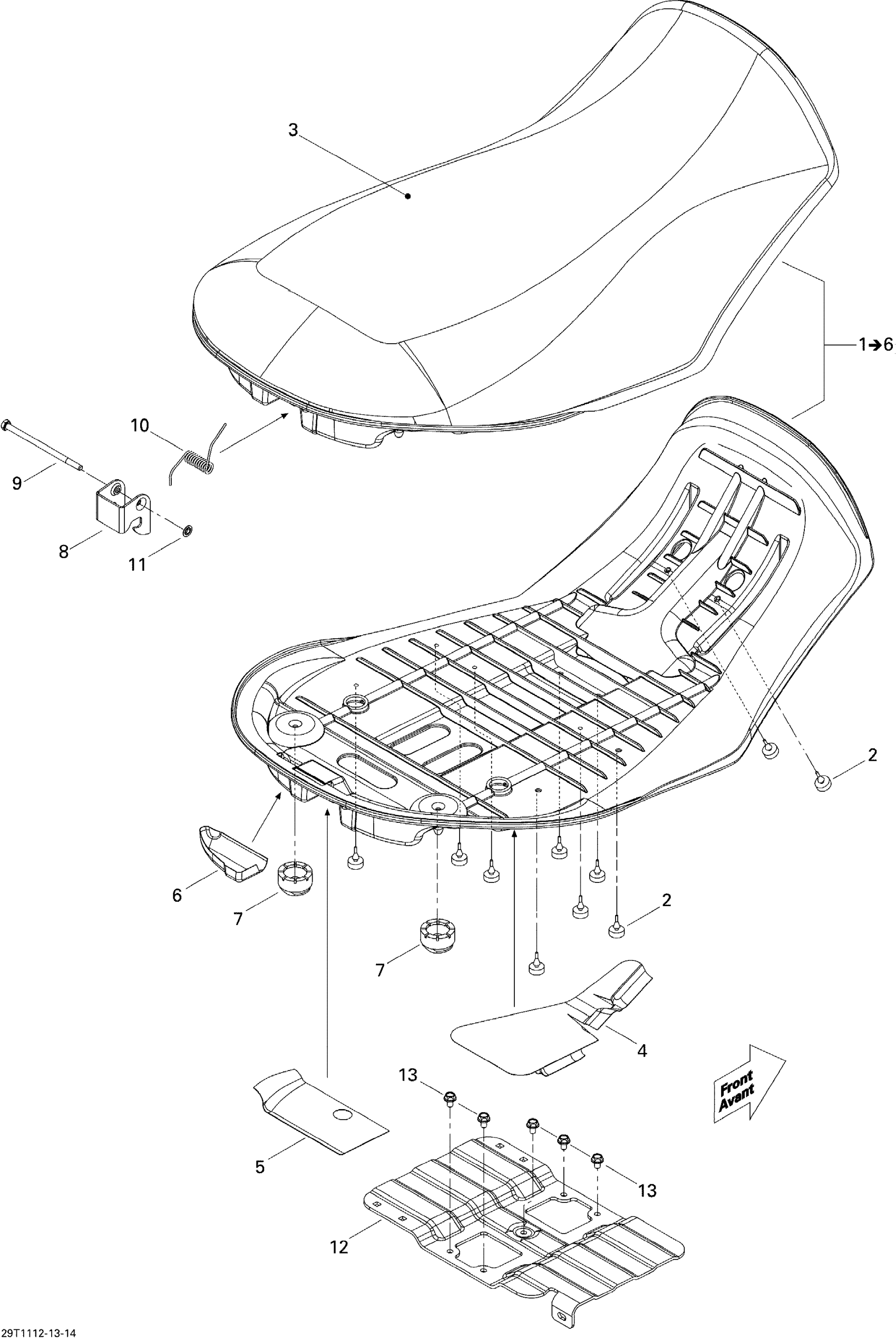

Can-Am Renegade 500 EFI, 2011 Seat Diagram

#

Description

Price

1

SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 3

715500325

$389.99

2

Rubber Stopper

708000759

Unavailable

3

SEAT COVER - Call your local BRP dealership

708000593

Unavailable

4

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

5

REFLECTING SHEET - Call your local BRP dealership

708000470

Unavailable

6

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable

7

Bumper Rubber

708000760

Unavailable

8

Latch, Black

708000144

$11.09

9

Hex. Screw M6 X 110

230061034

Unavailable

10

Spring

708000369

$8.60

11

Push Nut

732610072

Unavailable

12

Seat Reinforcement

708000629

Unavailable

13

Hex. Flange Screw M6 X 12

210261250

$1.56
