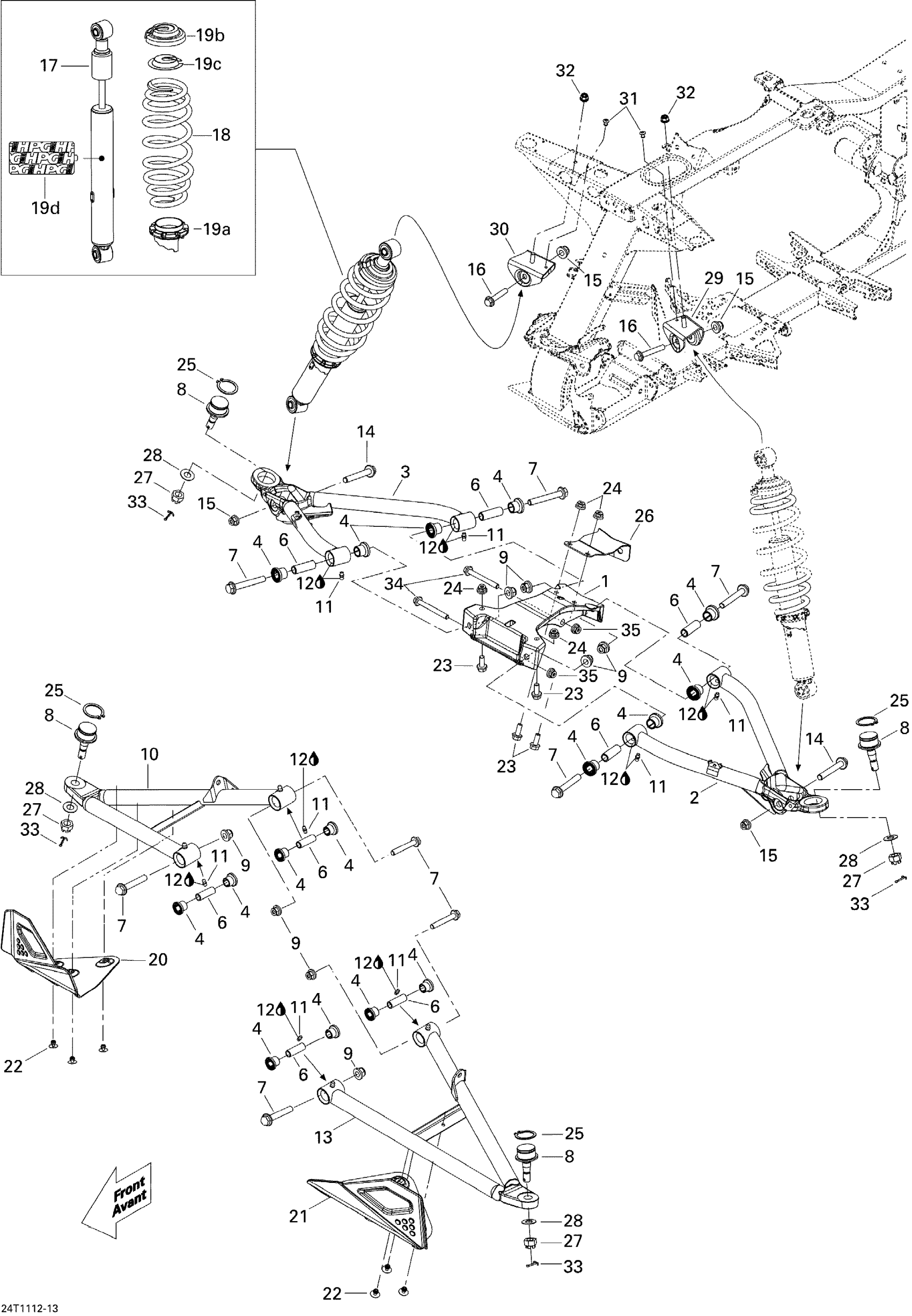

Can-Am Renegade 500 EFI, 2011 Front Suspension Diagram

#

Description
Price

1

Upper Arm Bracket

706201360

$156.89

2

LH PAINT UPPER ARM - Call your local BRP dealership

706201209

Unavailable

3

RH PAINT UPPER ARM - Call your local BRP dealership

706201212

Unavailable

4

Bushing

706200181

$3.68

6

Sleeve

706201587

$4.60

7

Hex. Flange Screw M10 X 70

207607046

$2.91

8

Ball Joint

706200653

$41.51

9

Hex. Flange Elastic Nut M10

233201436

$1.74

10

ARM_SUSPENSION RH ECOAT - Call your local BRP dealership

706201047

Unavailable

11

Grease Fitting

408200700

$2.80

12

Synthetic Grease, 400 G

293550010

Unavailable

13

ARM_SUSPENSION LH ECOAT - Call your local BRP dealership

706201045

Unavailable

14

Hex. Flange Screw M10 X 65

207606536

$3.61

15

Hex. Flange Elastic Nut M10

233201436

$1.74

16

Hex. Flange Screw M10 X 55

207605544

$2.78

17

Front Shock | 500 EFI

706201146

Unavailable

18

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | Yellow

706200829

Unavailable

18

Full Moon Spring | White Models

706201218

Unavailable

19a

Adjuster Ring

706002356

$17.66

19b

Spring Stopper

706200881

$10.30

19c

Cap

706200785

$4.42

19d

Not Available As Spare Parts

XXX

Unavailable

20

RH Protector

706201670

$17.66

21

LH Protector

706201669

$17.66

22

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

23

Hex. Flange Screw M8 X 20

207682044

$0.92

24

Hex. Flange Elastic Nut M8

233281414

$1.14

25

Circlip 32 mm

293370009

$1.49

26

BRACKET - Call your local BRP dealership

706201014

Unavailable

27

Nut M12

250100099

$1.64

28

Hardened Washer

706200281

$2.34

29

LH UPPER ARM BRACKET - Call your local BRP dealership

706201039

Unavailable

30

RH UPPER ARM BRACKET - Call your local BRP dealership

706201040

Unavailable

31

Pop Rivet 3/16"

390402300

$0.75

32

Hex. Elastic Flange Nut M8

233281416

$1.25

33

Cotter Pin

211400017

$0.25

34

Hex. Flange Screw M8 X 70

207687044

$6.11

35

Hex. Flange Elastic Nut M8

233281414

$1.14
