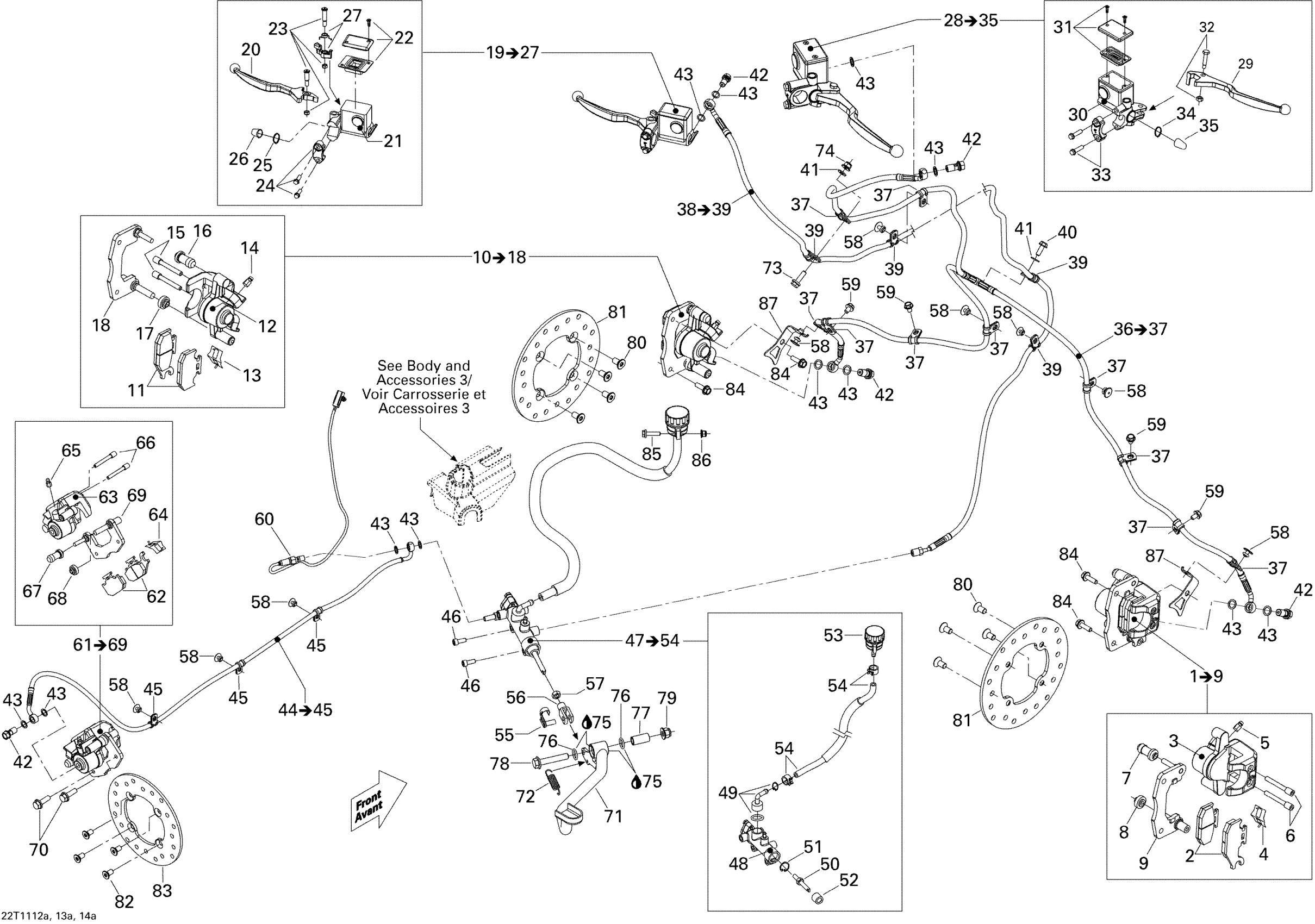

Can-Am Renegade 500 EFI, 2011 Brakes Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

705600593

$186.12

2

Brake Pad Kit

705600004

Unavailable

3

Piston Set

705600078

$36.89

4

Spring

705600079

Unavailable

5

Bleeding Screw

705600080

Unavailable

6

Pin Set (2)

705600081

Unavailable

7

Compression Boot

705600082

Unavailable

8

Compression Boot

705600083

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

705600594

Unavailable

11

Brake Pad Kit

705600014

Unavailable

12

Piston Set

705600078

$36.89

13

Spring

705600079

Unavailable

14

Bleeding Screw

705600080

Unavailable

15

Pin Set (2)

705600081

Unavailable

16

Compression Boot

705600082

Unavailable

17

Compression Boot

705600083

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

LH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 1 to 9

705600845

Unavailable

20

Lever Arm

705600243

$50.74

22

Cap Set

705600084

$23.05

23

Brake Lever Bolt Kit

705600246

$14.75

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

$9.74

27

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

28

RH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 27 to 35

705600956

$160.74

29

LEVER ARM - Call your local BRP dealership

705600629

$41.51

30

SWITCH KIT - Call your local BRP dealership

705600086

$19.97

31

Cap Set

705600084

$23.05

32

BOLT KIT - Call your local BRP dealership

705600085

$13.05

33

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

34

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

35

COMPRESSION BOOT - Call your local BRP dealership

705600089

$9.74

36

FRONT HOSE - Call your local BRP dealership | Includes 28 to 29

705600597

Unavailable

37

Clamp

293650256

Unavailable

38

FRONT HOSE - Call your local BRP dealership | Includes 10 to 11

705600598

Unavailable

39

Clamp

293650256

Unavailable

40

Hex. Flange Screw M6 X 16

210261650

$1.22

41

Flat Washer

224061121

$0.44

42

Banjo Bolt (M10 x 1.25 thread)

705600609

Unavailable

43

Copper Washer

705601628

$4.34

44

Rear Hose | Includes 34 to 35

705600929

$87.66

45

Clamp

293650256

Unavailable

46

Socket Head Screw M8 X 20, Scotch Grip

250000136

Unavailable

47

Master Cylinder | Includes 36 to 44, STD Model

705600751

$212.28

48

Piston Set

705600255

Unavailable

49

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

50

Not Available As Spare Part - Friction Washer

Unavailable

51

Circlip

705600068

Unavailable

52

Compression Boot

705600090

Unavailable

53

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

54

OIL HOUSING HOSE - Call your local BRP dealership

705600754

$66.12

55

Pin Kit

219702305

Unavailable

56

Yoke

705600100

Unavailable

57

Hex. Nut M8

232081414

Unavailable

58

Pop Rivet 3/16”

390910000

$0.48

59

Hex. Flange Screw M6 X 10

210261040

Unavailable

60

Brake Switch

705600798

$50.74

61

Rear Caliper | Includes 39 To 47

705600599

Unavailable

62

Brake Pad Kit

705600014

Unavailable

63

Piston Set

705600078

$36.89

64

Spring

705600079

Unavailable

65

Bleeding Screw

705600080

Unavailable

66

Pin Set (2)

705600081

Unavailable

67

Compression Boot

705600082

Unavailable

68

Compression Boot

705600083

Unavailable

69

Not Available As Spare Part - Friction Washer

Unavailable

70

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

71

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

$56.89

72

Brake Pedal Spring

705600792

Unavailable

73

Hex. Flange Screw M6 X 20

207662044

Unavailable

74

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

75

Synthetic Grease, 400 G

293550010

Unavailable

76

O-Ring

293300144

Unavailable

77

Inner Spacer

705600815

$10.98

78

Hex. Flange Screw M10 X 55

207605544

Unavailable

79

Hex. Flange Elastic Nut M10

233201414

$1.26

80

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

81

Disk Brake

705600604

$56.89

82

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

83

Disk Brake

705600604

$56.89

84

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

85

Hex. Flange Screw M6 X 25

207662544

Unavailable

86

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

87

BRACKET - Call your local BRP dealership

705600795

Unavailable
