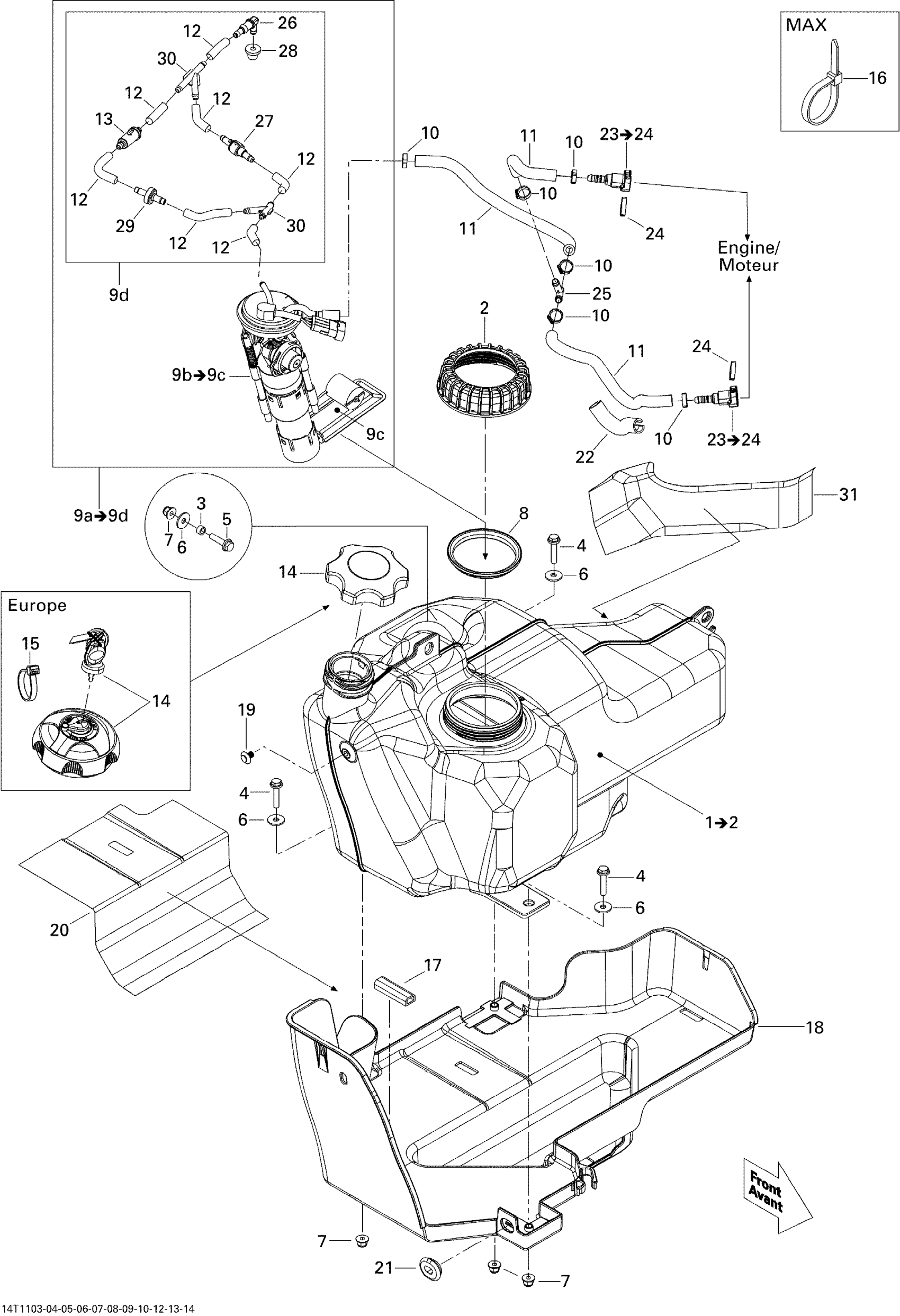

Can-Am Renegade 500 EFI, 2011 Fuel System Diagram

#

Description
Price

1

Fuel Tank Ass'y

709000220

Unavailable

2

Nut, Fuel Pump Module

513033040

$27.66

3

Bushing | DS 650 X

293900104

Unavailable

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

5

Hex. Flange Screw M6 X 25

207662544

Unavailable

6

Washer

224060251

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

8

Seal

709000208

Unavailable

9a

Fuel Pump Kit Ass'y

703500766

$368.77

9b

Not Available As Spare Part - Friction Washer

Unavailable

9c

Fuel Pre-Filter Kit

709000389

Unavailable

9d

Fuel Vent Kit

715001288

$32.28

10

Oetiker Clamp

293650046

Unavailable

11

Was 709000163 Fuel Line

219704440

Unavailable

12

Polyurethane Hose 10000Mm Long

219704410

Unavailable

13

Filter

709000330

Unavailable

14

Fuel Tank Cap

513033025

$19.47

14

Fuel Tank Cap | Europe

709000267

Unavailable

15

Tie Wrap 94 mm | 4X4

293750001

$0.83

16

Tie Wrap 368 mm

293750008

$0.85

17

Was 293200017 Neoprene Seal

219704365

Unavailable

18

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

19

PLASTIC TUKLOCK RIVET - Call your local BRP dealership

293150168

$1.62

20

REFLECTIVE SHEET - Call your local BRP dealership

709000149

Unavailable

21

Oval Washer

705005156

Unavailable

22

Was 409901800 Tubing (13 mm)

219704400

Unavailable

23

Female Quick Fitting Ass'y

709000125

Unavailable

24

Locking Clip

513033135

$5.11

25

Y-Fitting, 5/16''

293710136

Unavailable

26

Elbow Male Connector

414580600

$3.50

27

Check Valve

513033469

$25.32

28

Grommet

293720029

Unavailable

29

Check Valve

275500398

Unavailable

30

Y-Fitting

293710059

Unavailable

31

REFLECTING SHEET - Call your local BRP dealership

709000204

Unavailable
