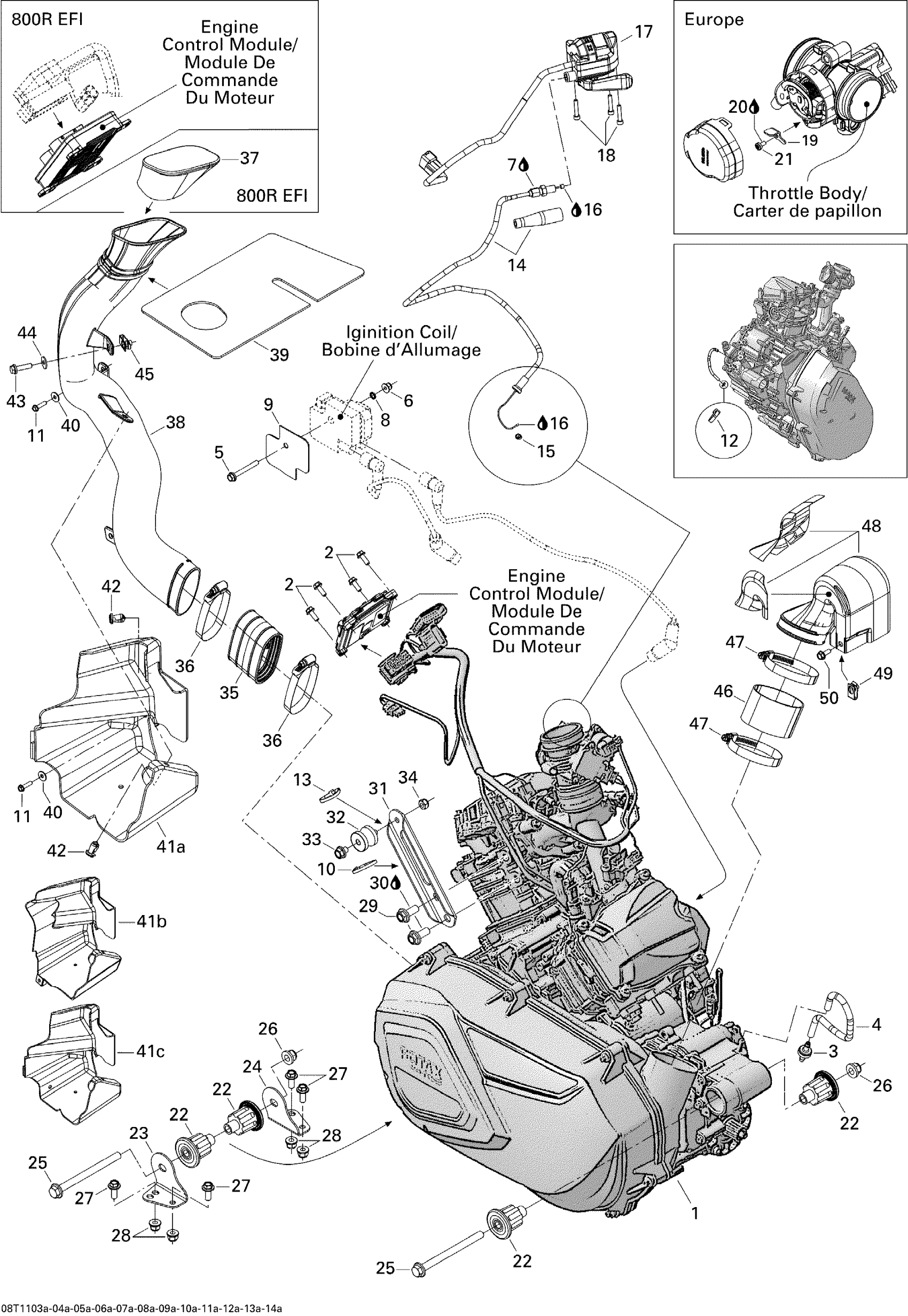

Can-Am Renegade 500 EFI, 2011 Engine 1 Diagram
#
1
LONG BLOCK, 500 EFI - Call your local BRP dealership
420049038
Unavailable
3
Check Valve
275500398
Unavailable
4
Hose 6 Mm 15000Mm Long
219704360
Unavailable
5
Hex. Flange Screw M6 X 50
207665044
Unavailable
6
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
7
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
8
External Serrated Lock Washer 6 mm
234461608
Unavailable
9
Insulator Pad
710000073
Unavailable
11
Screw-Forming Hex.Hd.Fl.Bzn M5 X 20
250000992
Unavailable
12
Tie Wrap 142 mm
293750002
Unavailable
15
Cable Guide
707000434
Unavailable
16
CABLE LUBRICANT, 400 G - Call your local BRP dealership
293600041
Unavailable
17
Throttle Handle | 4X4
707000595
Unavailable
18
Socket Head Screw M5 X 25
205052588
Unavailable
21
TORX SCREW M4 X 8 - Call your local BRP dealership | Europe
250000332
Unavailable
22
Vibration Damper
707001169
Unavailable
25
Hex. Flange Screw M10 X 125
230602546
Unavailable
26
Hex. Flange Elastic Nut M10
233201436
Unavailable
27
Hex. Flange Screw M8 X 20
207682044
Unavailable
28
Hex. Flange Elastic Nut M8
233281414
Unavailable
29
Hex. Flange Screw M10 X 25
207602544
Unavailable
32
Rubber Isolator
707000949
Unavailable
33
Flange Screw M8 x 10, Scotch Grip
207581046
Unavailable
34
Hex. Elastic Stop Nut M8
232581414
Unavailable
35
Flexibale Adaptor
707002585
Unavailable
36
Norma Clamp
293650091
Unavailable
37
Not Available As Spare Parts
XXX
Unavailable
38
AIR INLET - Call your local BRP dealership
707000777
Unavailable
40
Flat Washer 5 mm, Stainless
234052600
Unavailable
41a
Not Available As Spare Parts
XXX
Unavailable
41c
Not Available As Spare Parts
XXX
Unavailable
42
Tuflok Plastic Rivet
293150230
Unavailable
43
Hex. Flange Screw M6 X 25
207662544
Unavailable
44
Flat Washer M6, Stainless
234062600
Unavailable
45
Panel Nut M6 X 1.0
250100198
Unavailable
47
Norma Gear Clamp
293650118
Unavailable
48
AIR OUTLET ASS'Y - Call your local BRP dealership
707000459
Unavailable
49
Panel Nut M6 X 1.0
250100198
Unavailable
