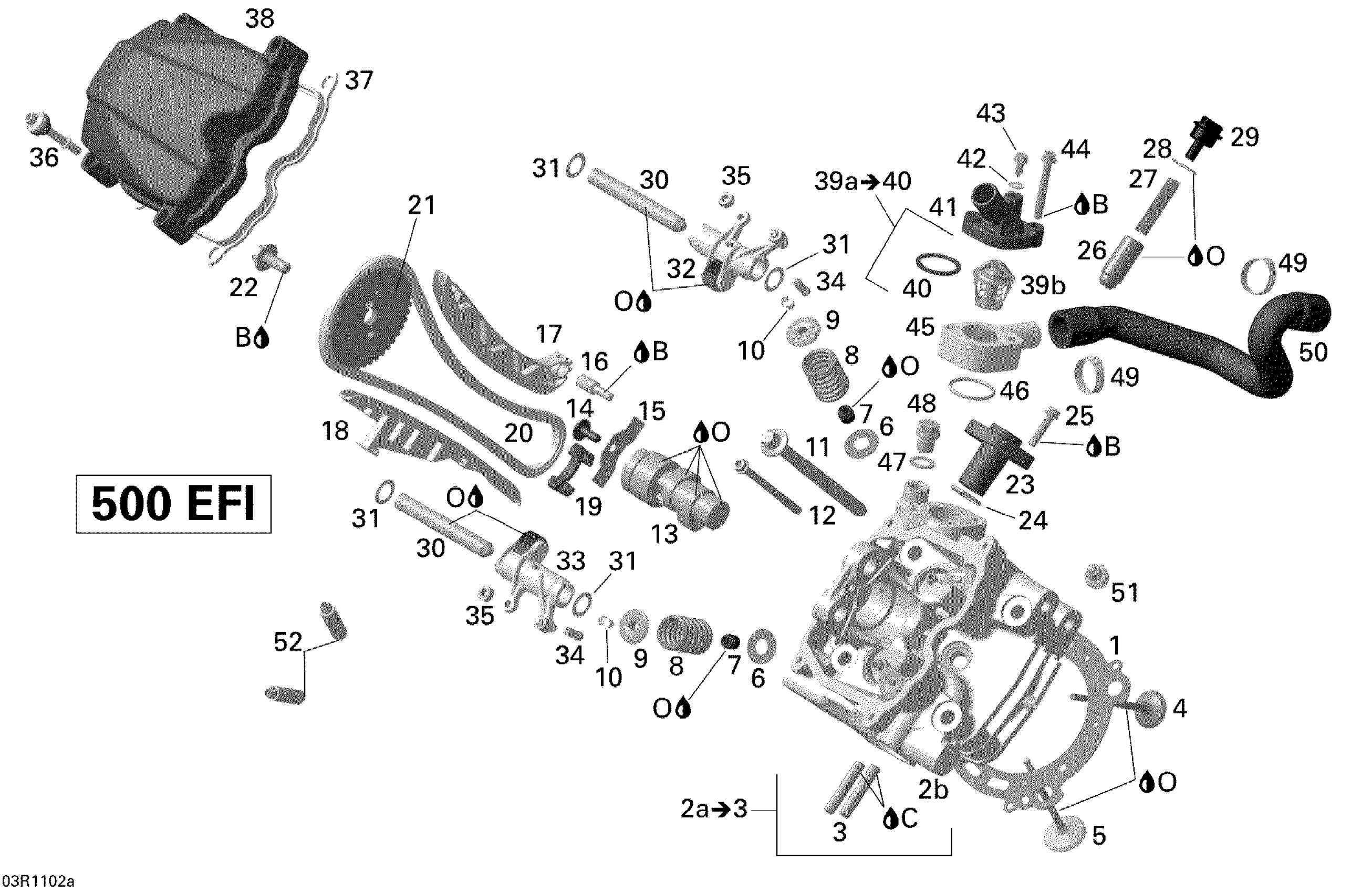

Can-Am Renegade 500 EFI, 2011 Cylinder Head, Front Diagram

#

Description
Price

1

Cylinder Head Gasket | 330HO

420630850

$58.18

2a

Cylinder Head | Includes 2a to 3

420623941

$660.49

2b

Not Available As Spare Part - Friction Washer

Unavailable

3

Stud M8 x 26

420941014

$12.15

4

Intake Valve 31MM

420254359

$34.30

5

Exhaust Valve 27MM

420254368

$66.39

6

Thrust Washer

420627525

$1.72

7

Valve Stem Seal

420230515

$11.54

8

Valve Spring

420239295

$13.18

9

Valve Spring Retainer

420254132

$13.18

10

Cotter Valve

420254120

$3.88

11

Torx Screw M10X140

420641551

$13.18

12

Torx Flange Screw M6 X 85

420641228

$7.01

13

CAMSHAFT - Call your local BRP dealership

420620747

Unavailable

14

Torx Screw M6 X 16

420241529

$1.79

15

Holding Strip

420627743

$17.13

16

Bearing Screw M6

420240943

$4.16

17

Chain Tension Guide

420436015

$23.10

18

Chain Guide

420236584

$7.09

19

Chain Guide

420236351

$13.70

20

Silent Chain

420297063

$61.91

21

Camshaft Sprocket

420254434

$35.04

22

Hex. Collar Screw M8 X 20 | 330HO

420241721

$7.01

23

Chain Tensioner Housing

420236510

$10.76

24

O-Ring

420430373

$3.01

25

Torx Flange Screw M6 X 25

420641238

$3.07

26

Chain Tensioner Plunger

420236521

$14.04

27

Spring

420238120

$7.01

28

O-Ring

420250890

$2.87

29

Plug Screw

420641150

$7.01

30

Pin #12, Small, M6 X 90

420229712

$14.90

31

Shim

420944382

$3.88

32

Inlet Rocker Arm

420254907

$134.30

33

Exhaust Rocker Arm

420254911

$137.28

34

Adjustment Screw M6 X 0.75

420241337

$4.75

35

Hex Nut M6

420242913

$0.51

36

Allen Screw M6 x 30,5

420440561

$4.21

37

Gasket

420630260

$8.09

38

Valve Cover

420610393

$25.34

39a

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

420222494

$48.48

39b

Not Available As Spare Part - Friction Washer

Unavailable

40

Thermostat Gasket

420650300

$8.09

41

Thermostat Cover

420222696

$3.00

42

Gasket Ring

420650255

$3.88

43

Screw M5 X 16

420441621

$3.01

44

Torx Flange Screw M6 X 45

420641198

$3.88

45

Connection Socket

420222894

$45.49

46

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$9.03

47

Copper Washer

420250640

$0.93

48

Plug screw

420841924

$13.18

49

Clamp

420251578

$8.09

50

Water Tube

420822353

$18.63

51

Spark Plug, NGK DCP-R8E

715900637

$6.49

52

Valve Guide

420254374

$28.99

B

Loctite 243, 10 ml

293800060

$21.49

C

Sealant Loctite 648

219703000

$41.01

O

Not Available As Spare Part - Friction Washer

Unavailable
