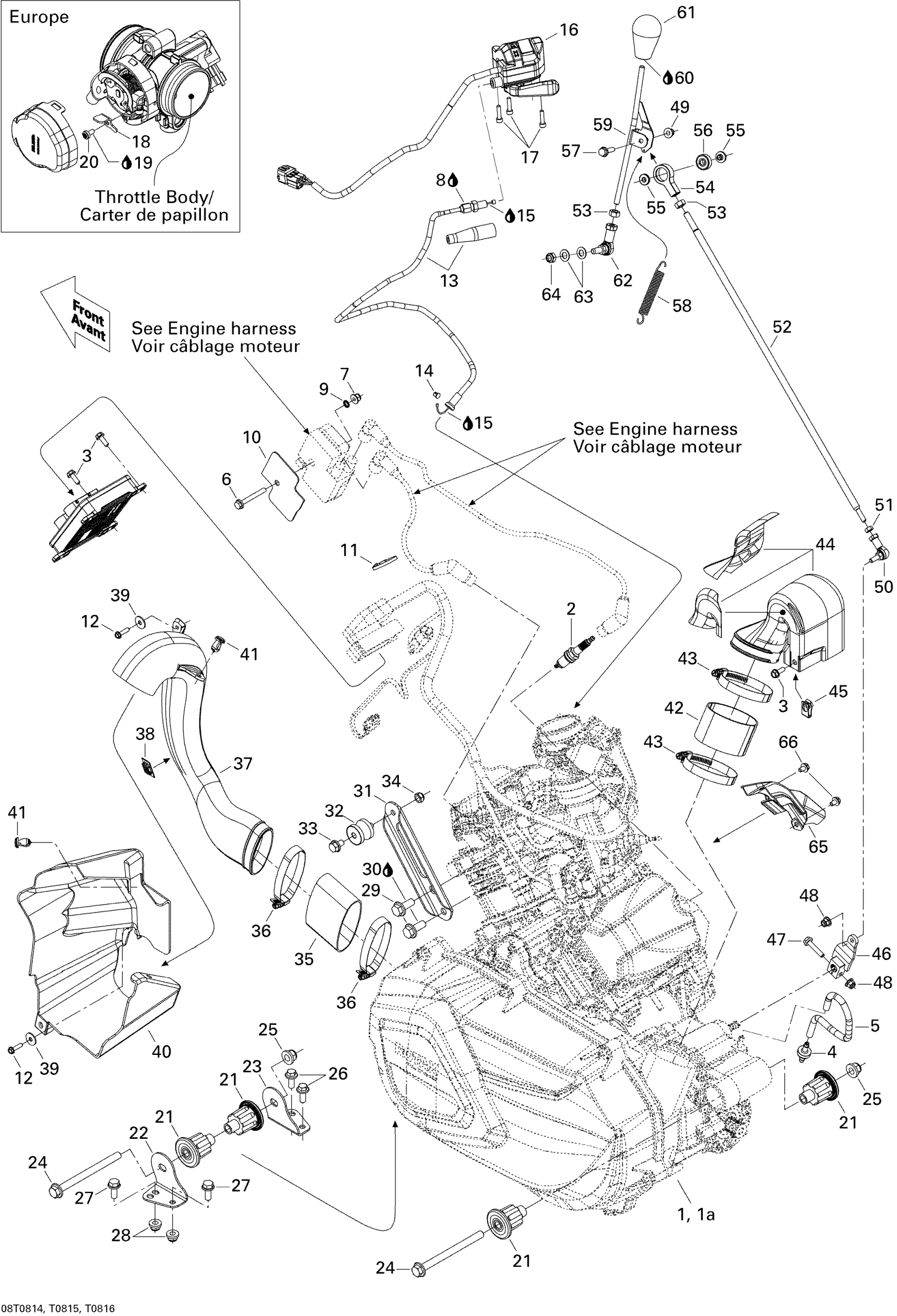

Can-Am Renegade 500, 2008 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1a

LONG BLOCK, 500 EFI - Call your local BRP dealership

420049038

Unavailable

2

Spark Plug, NGK DCP-R8E

715900637

Unavailable

3

Hex. Flange Screw M6 X 16

210261650

$1.22

4

Check Valve

275500398

Unavailable

5

Hose 6 Mm 15000Mm Long

219704360

Unavailable

6

Hex. Flange Screw M6 X 50

207665044

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

8

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

9

External Serrated Lock Washer 6 mm

234461608

Unavailable

10

Insulator Pad

710000073

Unavailable

11

Tie-Rap 180 mm

414115200

$0.09

12

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

Unavailable

13

Throttle Cable

707000393

$12.91

14

Cable Guide

707000434

Unavailable

15

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

16

Throttle Handle | 4X4

707000595

Unavailable

17

Socket Head Screw M5 X 25

205052588

Unavailable

18

Speed Limiter | Europe

707000563

Unavailable

19

Loctite 243, 10 ml

293800060

$20.77

20

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

21

Vibration Damper

707001169

Unavailable

22

ENGINE BRACKET - Call your local BRP dealership

707000802

$10.57

23

ENGINE BRACKET - Call your local BRP dealership

707000803

$8.94

24

Hex. Flange Screw M10 X 125

230602546

Unavailable

25

Hex. Flange Elastic Nut M10

233201436

Unavailable

26

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

27

Hex. Flange Screw M8 X 20

207682044

Unavailable

28

Hex. Flange Elastic Nut M8

233281414

Unavailable

29

Hex. Flange Screw M10 X 25

207602544

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

UPPER ENGINE BRACKET, BLACK - Call your local BRP dealership

707000883

$10.74

32

Rubber Isolator

707000949

Unavailable

33

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

Unavailable

34

Hex. Elastic Stop Nut M8

232581414

Unavailable

35

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

36

Norma Clamp

293650091

Unavailable

37

AIR INLET - Call your local BRP dealership

706600008

Unavailable

38

Tie-rap Mount (square - self-adhsive)

293750040

$3.09

39

Flat Washer

250200082

Unavailable

40

WATER DEFLECTOR - Call your local BRP dealership

707000509

$14.23

41

Tuflok Plastic Rivet

293150230

Unavailable

42

Adaptor

707000789

$10.98

43

Norma Gear Clamp

293650118

Unavailable

44

AIR OUTLET ASS'Y - Call your local BRP dealership

707000459

Unavailable

45

Panel Nut M6 X 1.0

250100198

Unavailable

46

Lever

707000691

$23.05

47

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

49

Hex. Flange Nut M6

233061414

Unavailable

50

LH BALL JOINT - Call your local BRP dealership

707000545

Unavailable

51

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

52

THREADED ROD - Call your local BRP dealership

707000579

Unavailable

53

Hex. Nut M8

232081414

Unavailable

54

PIVOT - Call your local BRP dealership

707000575

Unavailable

55

BUSHING - Call your local BRP dealership

707000576

Unavailable

56

BALL BEARING - Call your local BRP dealership

293350039

$12.28

57

Hex. Flange Screw M6 X 25

207662544

Unavailable

58

Spring

707000577

Unavailable

59

Lever Arm

707000783

$16.89

60

Loctite 243, 10 ml

293800060

$20.77

61

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

62

RH Ball Joint

707001959

Unavailable

63

Washer

506151252

Unavailable

64

Hex. Elastic Stop Nut M8

232581414

Unavailable

65

Cover OPS

707000410

Unavailable

66

Hex. Flange Screw M6 X 12

210261250

$1.56
