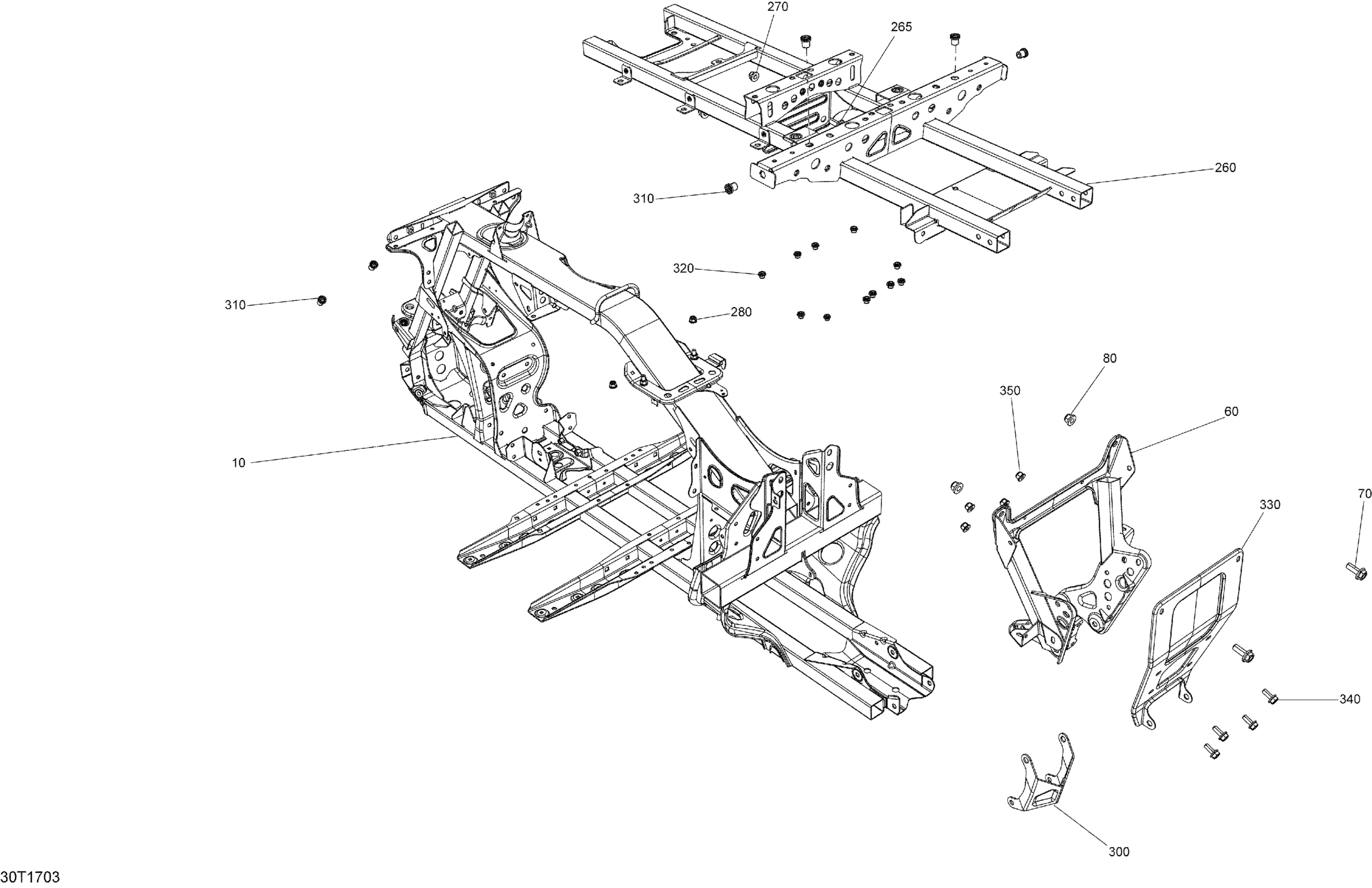

Can-Am Renegade, 2017 Frame - All Models Diagram

Description

Price

Black Frame | Outlander

705206365

$1,049.99

Rear Pillar

705210818

$69.99

Hex. Flange Screw M10 X 25

207602546

$1.74

Hex. Flange Elastic Nut M10

233201436

$1.74

260

Chassis Extension

705210821

$158.39

265

Hex. Flange Screw M10 X 25

207602546

$1.74

270

Hex. Flange Elastic Nut M10

233201436

$1.74

280

Hex. Flange Elastic Nut M8

233281414

$1.14

300

Differential Protector | Renegade

705203701

$41.51

310

Insert Half Hex Body M8 x 1.25

293450307

$2.03

320

Threaded Insert M6 X 1.0

250100242

$2.54

330

Rear Support

705203301

$41.51

340

Hex. Flange Screw M8 X 20

207682046

$1.82

350

Hex. Elastic Flange Nut M8

233281416

$1.25
