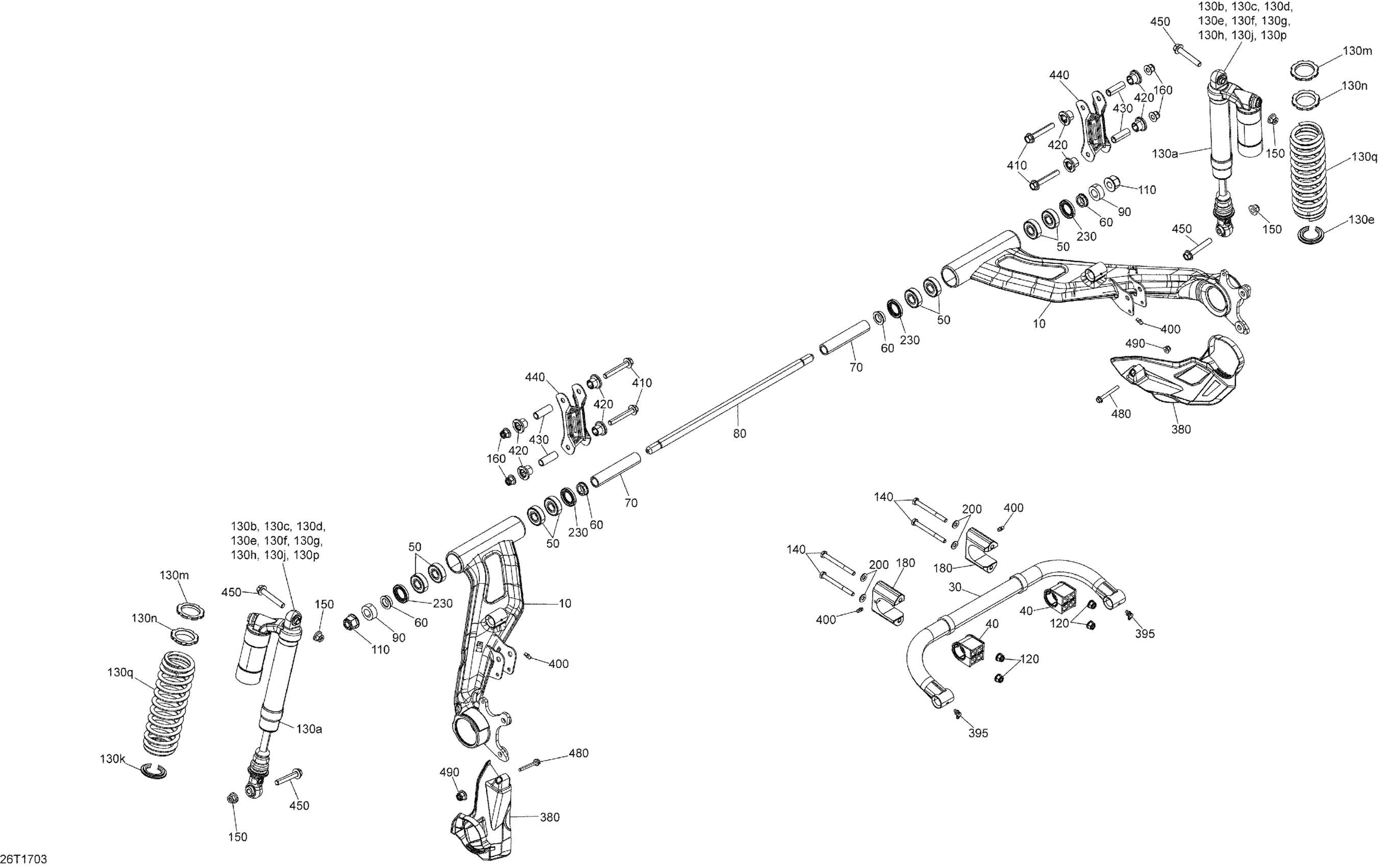

Can-Am Renegade, 2017 Rear Suspension - All Models Diagram

#

Description
Price

10

Black LH Swing Arm | Except Package XMR Red/White/Black

706002414

$290.74

10

Black RH Swing Arm | Except Package XMR Red/White/Black

706002415

$290.74

10

Black LH Swing Arm | Except Package XMR Red/White/Black

706002414

$290.74

10

Black RH Swing Arm | Except Package XMR Red/White/Black

706002415

$290.74

10

Black LH Swing Arm | Except Package XMR Red/White/Black

706002414

$290.74

10

Black RH Swing Arm | Except Package XMR Red/White/Black

706002415

$290.74

10

Red LH Swing Arm | Package XMR Red/White/Black

706002634

$290.74

10

Black RH Swing Arm | Except Package XMR Red/White/Black

706002415

$290.74

10

Red LH Swing Arm | Package XMR Red/White/Black

706002634

$290.74

10

Black RH Swing Arm | Except Package XMR Red/White/Black

706002415

$290.74

30

Swaybar

706000988

$124.58

40

Stabilizer Bar Bushing

706004640

$9.22

50

Ball Bearing

293350145

$12.91

60

Spacer

706001282

$10.98

70

Spacer

706002259

$27.66

80

Axial Pivot M16

706001664

$69.20

90

Flat Washer M17

250200112

$6.34

110

Hex. Flange Elastic Nut M16

233211466

$1.53

120

Hex. Flange Elastic Nut M8

233281434

$1.74

130a

Rear Shock

706000958

$175.35

130a

Rear Shock | Includes 40 to 42

706001904

$316.12

130a

Rear Shock | Includes 40 to 42

706001904

$316.12

130a

Rear Shock | Package-XXC, Includes 33a to 33d, 41, 42, 44

706001908

$719.99

130a

REAR SHOCK - Call your local BRP dealership | Package XMR, Engine 1000R

706002603

Unavailable

130b

Spherical Bearing

715900251

$76.12

130b

Ball Journal

715900336

$81.51

130c

O-Ring Bushing

715900209

$13.52

130d

Retaining Ring

715900252

$10.98

130e

Bushing Sleeve | XTP

706201585

$27.66

130f

Bushing Sleeve | XTP

706201586

$27.66

130g

Interior Bushing | XTP

715900210

$14.75

130h

Bushing | XTP

706201648

$13.83

130j

Protector

715900331

$13.83

130k

Spring Guide

503187500

$7.37

130m

Spring Stopper

706200881

$10.30

130n

Adjustment Cam

505073625

$12.18

130p

Cap

706200785

$4.42

130q

SPRING_COMPRESSION B-352 PAINTED - Call your local BRP dealership | Package XMR Blue

706002583

$89.20

130q

SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | Renegade Model Engine 570 Package STD

706002470

$87.66

130q

SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | Renegade Model Engine 850, 1000 Package STD

706002582

Unavailable

130q

SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | Renegade Model Engine 850, 1000 Package STD

706002582

Unavailable

130q

SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | Package XMR Red

706002584

$90.74

130q

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | Package XXC, Model Black

706002493

Unavailable

130q

JOUSI_PURISTUSVAIMENNUS B-101A MAALATTU - Call your local BRP dealership | Package XXC Red Model

706002581

$90.74

140

Hex. Screw M8 X 85

250001035

$1.46

150

Hex. Flange Elastic Nut M10

233201436

$1.74

160

Hex. Flange Elastic Nut M10

233201414

$1.26

180

Bushing Holder

706001099

$31.51

200

Flat Washer M8

234081430

$1.74

230

Seal

293200144

$4.60

380

LH Protector

706002482

$14.37

380

RH Protector

706002483

$14.75

395

Grease Fitting 90°

293550056

$1.37

400

Grease Fitting

250000315

$4.82

410

Hex. Flange Screw M10 X 65

207606536

$3.61

420

Bushing

706200181

$3.68

430

Sleeve

706201587

$4.60

440

Sway Bar Linkage

706001020

$12.68

450

Hex. Flange Screw M10 X 6

207606046

$3.38

480

Torx Screw M6 X 20

250000712

$1.74

490

Hex. Flange Elastic Nut M6

233261494

$1.26
