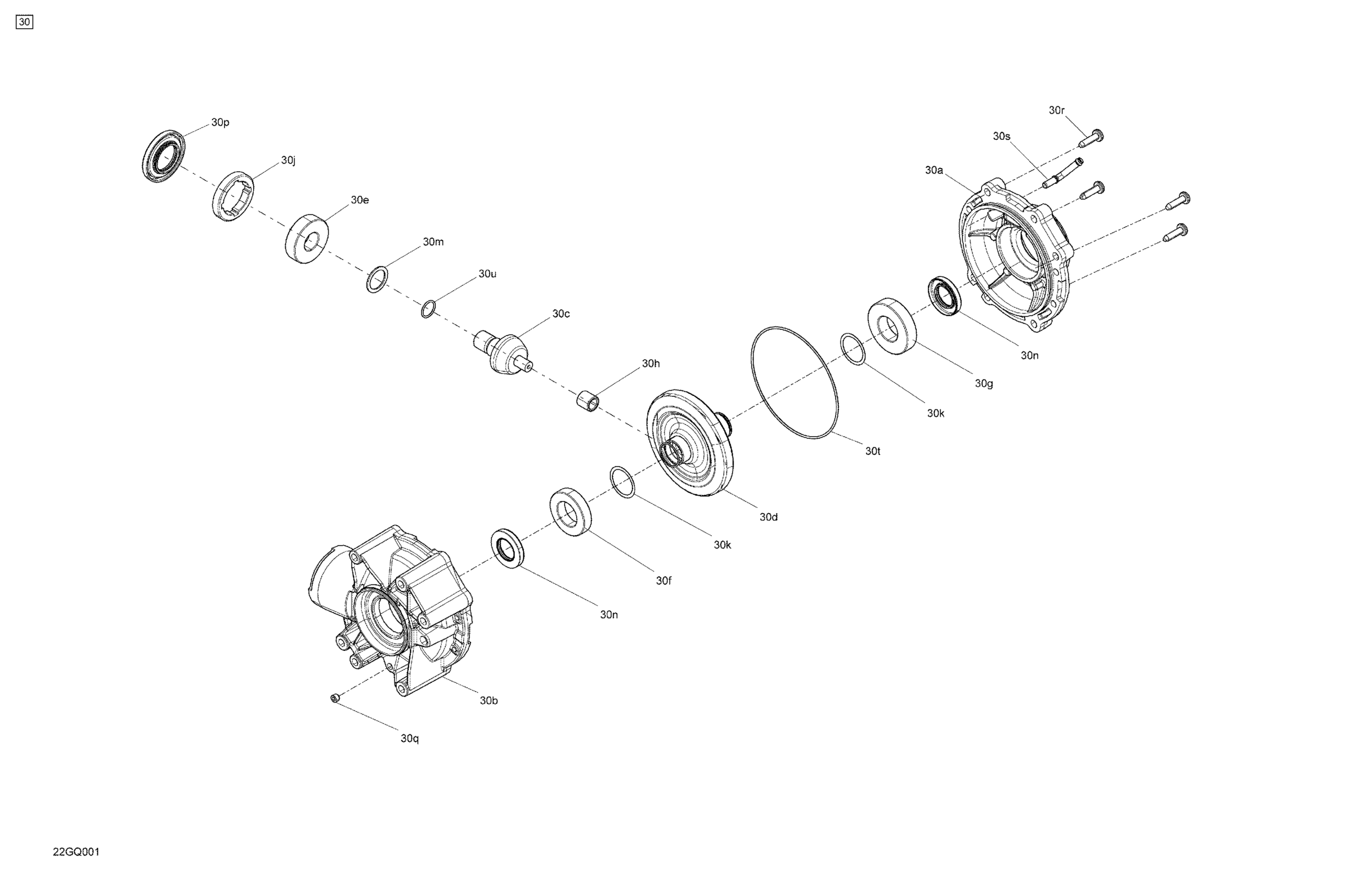

Can-Am Renegade, 2017 Drive - Final Drive Unit Diagram

Description

Price

Final Drive Unit | Includes 30 to 30u

703501019

$904.58

30a

REAR COVER - Call your local BRP dealership

705502051

$155.35

30b

Rear Pinion Cover

705502052

$207.66

30c

Pinion 10 Teeth

705502053

$198.43

30d

Gear 36 Teeth

705502682

$175.35

30e

Ball Bearing

705502055

$30.74

30f

Ball Bearing

705502737

$46.12

30g

Ball Bearing

705502738

$56.89

30h

Needle Bearing

705502058

$47.66

30j

Nut

705502059

$32.28

30k

Differential Shim 0.02 mm

705502060

$13.83

30m

Pinion Gear Shim 1.67 mm

705502061

$16.12

30n

Oil Seal

705501556

$17.66

30p

Oil Seal

705502062

$23.05

30q

Plug Drain

705501724

$5.98

30r

Screw

705502063

$3.08

30s

Breather Tube

705501584

$13.86

30t

Seal

705502064

$8.31

30u

O-Ring

705502065

$5.98

30v

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

30w

Flat Washer M10 | 4X4

250200014

$1.17
