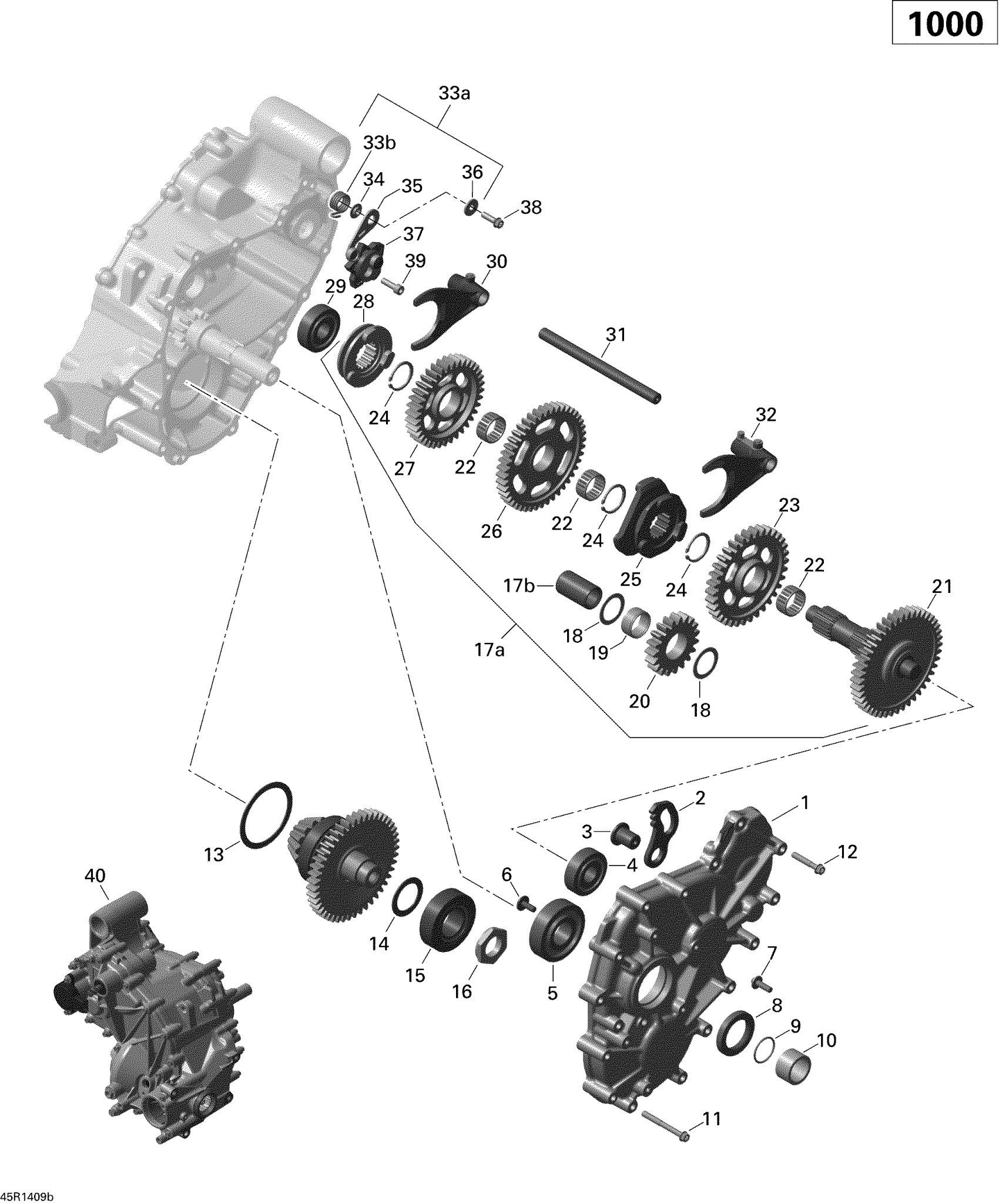

Can-Am Renegade 1000 EFI STD, XXC, 2014 Gear Box 2 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Parking Lock Lever

420257659

$78.43

3

Collar Sleeve

420647123

$36.89

4

Ball Bearing

420932816

$40.37

5

Ball Bearing

420932822

$28.97

6

Torx Screw M6 X 16

420241529

$1.56

7

Distance Screw M6

420441433

$3.68

8

Oil Seal

420950089

$18.43

9

O-Ring

420631612

$3.52

10

Distance Ring

420247118

Unavailable

11

Torx Flange Screw M6 X 55

420440702

$2.54

12

Torx Flange Screw M6 X 35

420440274

$0.83

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17a

Gear Set | Includes 17a to 28

420281151

$699.97

17b

Not Available As Spare Part - Friction Washer

Unavailable

18

Thrust Washer

420427011

$5.52

19

Needle Bearing

420932930

$26.12

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Needle Bearing

420632070

$23.05

23

Gear Pinion, 34 Teeth

420434873

$83.05

24

Retaining Ring

420845772

$6.98

25

Shifting Sleeve

420257954

$83.05

26

Gear Pinion, 44 Teeth

420434861

Unavailable

27

Gear Pinion, 37 Teeth

420434855

$196.12

28

Shifting Sleeve

420257945

$96.89

29

Ball Bearing

420932816

$40.37

30

Shift Fork

420657365

$110.74

31

Pivot

420258394

$23.05

32

Shift Fork Ass'y

420657355

$119.97

33a

Index Lever | Includes 33a to 37

420248533

$64.58

33b

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Torx Flange Screw M6 X 20

420440207

$2.54

39

Allen Screw M6 X 20

420241939

$0.68

40

Boite Vitesses *Gear Box

420685804

$2,924.99
