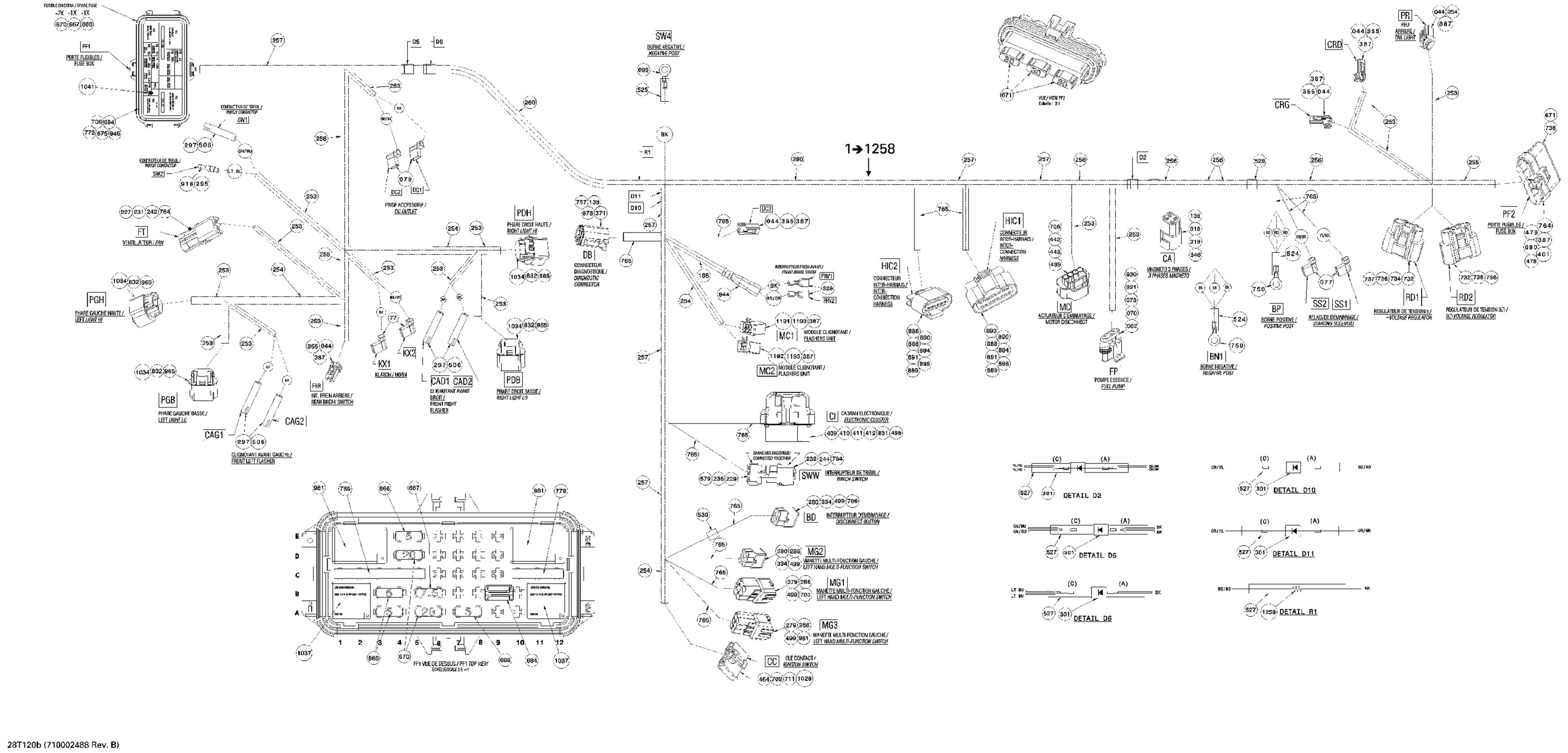

Can-Am Renagade 500EFI STD, 2012 Main Harness Europe Diagram

#

Description
Price

1

Main Harness Ass'y | Includes 1 to 1258

710002488

Unavailable

33

Wire Seal

278000999

$2.55

44

Female Terminal

515175231

$4.12

54

Female Housing, 3 Circuits

515175495

$15.35

62

Female Terminal

278001014

$2.72

70

Female Housing, 4 Circuits

409209700

$12.97

73

Wire Seal

278001013

$2.72

77

Female Terminal

409010300

$4.12

79

Female Terminal

710000038

$4.60

99

Open Barrel

278000992

$1.79

138

Sealing Cap

293000052

$2.55

185

Not Available As Spare Part - Friction Washer

Unavailable

188

Tubing 12 mm

409902000

Unavailable

227

Male Terminal

409004300

$5.46

229

Female Terminal

278000223

$2.55

231

Female Housing, 2 Circuits

278000217

$7.59

232

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

238

Male Housing, 3 Circuits

278000273

$7.59

242

Wire Seal

278000218

$3.48

244

Wire Seal

278000216

$2.55

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

256

Tubing 16 Mm 1000Mm Long

219704408

$6.23

257

Was 409901600 Tubing 19mm

219704398

$89.97

260

Was 515175319 Tubing 22 mm

219704423

$11.84

279

Male Terminal

409011300

$5.78

280

Female Terminal

409012100

$3.73

286

Seal

409012300

$4.38

295

Insulated Sheath

278001008

$3.20

297

Insulated Sheath

278001007

$3.22

301

Diode

409012700

$10.83

318

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

$29.20

319

Male Terminal

515175568

$7.48

329

Female Terminal

710000082

$6.03

334

Female Housing, 6 Circuits

710000081

$8.29

346

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

$2.86

355

Female Housing, 2 Circuits

515175658

$15.35

371

Male Wedge, 6 Circuits

515175678

$5.11

401

WIRE SEAL - Call your local BRP dealership

278001505

$5.45

409

Plug

515175812

$1.70

410

Female Housing, 24 Circuits

515175801

$9.00

411

Retainer Block

515175802

$10.66

412

Wire Seal

515175803

$2.41

442

Male Housing, 4 Circuits

710000329

$14.75

443

Female Terminal

710000335

$1.80

464

Female Terminal

710000274

$8.98

478

Housing, 6 Circuits

710000888

$16.89

479

Lock

710000889

$4.60

484

Seal

415128501

$1.51

498

Female Housing

710000399

$14.02

499

Wire Seal

710000402

$4.42

506

Female Terminal

710000421

$5.46

524

Not Available As Spare Part - Friction Washer

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

527

Not Available As Spare Part - Friction Washer

Unavailable

579

Wire Seal

710000504

$4.60

641

Male Housing, 2 Circuits

710000667

$7.48

666

Little Fuse, 5 Amperes

710000742

$7.24

667

Little Fuse, 7.5 Amperes

710000743

$8.02

670

Little Fuse, 20 Amperes

710000746

$6.77

671

Little Fuse, 30 Amperes

710000747

$6.77

675

Fuse Box Base Ass´y

415129856

$41.57

684

Fuse Puller

710000781

$8.29

690

Female Terminal

710000890

$3.73

700

Male Terminal Housing, 6 Circuits

710000835

$16.89

702

Female Terminal

710000836

$5.46

706

Cap

710000840

$5.49

709

Lock

710000848

$3.98

711

Male Housing, 6 Circuits

710000849

$7.55

732

Female Terminal

710000877

$6.32

734

Female Housing, 3 Circuits

710000879

$21.42

735

Housing, 3 Circuits

710000880

$17.52

736

Seal

710000881

$14.27

737

Cap

710000882

$9.19

738

Cover

710000897

$12.62

750

Terminal

710000913

$5.46

757

Female Terminal

278001665

$3.73

764

Clip

710000992

$4.00

769

Bus Bar

278002165

$7.24

773

Fuse Cover

710001026

$17.52

778

Bus Bar

278002165

$7.24

831

Female Terminal

710001131

$7.00

832

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

$14.06

886

Housing

710001232

$13.80

888

Seal

710001230

$2.75

889

Seal

710001233

$2.55

890

Terminal

710001229

$3.02

891

Terminal

710001228

$2.72

893

Housing

710001226

$11.83

894

Cap

710001225

$7.27

898

LOCK - Call your local BRP dealership

710001221

$8.68

918

Female Terminal

278002261

$6.20

921

Female Terminal

710001340

$5.11

930

Wire Seal

515176621

$7.00

944

CAP - Call your local BRP dealership

710001350

$4.03

946

Foam

278002172

$5.49

961

Male Housing Terminal, 6 Circuits

710001446

$4.60

965

Wire Seal

710001427

$1.83

976

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

981

Relay, 30 AMP

515176774

$19.20

1028

Terminal | Canada/Usa

710001635

$3.98

1034

Terminal

710001873

$2.02

1037

Relay

715900824

$16.22

1041

DECAL FUSE RELAY - Call your local BRP dealership

710001783

$2.99

1191

Housing

710002313

$18.43

1192

Housing

710002314

$16.89

1193

Terminal

710002315

$4.60

1258

Resistor

710002674

$3.22
