Description

Price

1

BLACK FRAME - Call your local BRP dealership

705202416

Unavailable

2

PROTECTION PLATE - Call your local BRP dealership

705202399

$59.97

3

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

4

REINFORCEMENT - Call your local BRP dealership

705201877

$62.99

5

Battery Support Base

705201942

$34.99

6

Rear Support, Black

705203842

$42.99

7

HEAD SHIELD - Call your local BRP dealership

705201510

$13.82

8

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

9

Hex. Flange Elastic Nut M8

233281414

$1.14

10

Hex. Flange Screw M8 X 45

207684544

$3.68

11

Hex. Elastic Flange Nut M8

233281416

$1.25

12

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

13

SPACER - Call your local BRP dealership

705202084

Unavailable

14

Torx Screw M4 X 8

250000127

$1.09

15

Elastic Stop Nut M4

232541484

$0.61

16

SUPPORT, BLACK - Call your local BRP dealership

705201504

Unavailable

17

Hex. Flange Screw M10 X 25

207602544

$1.33

18

Hex. Flange Elastic Nut M10

233201436

$1.74

19

SUPPORT PLATE, BLACK - Call your local BRP dealership

705202402

Unavailable

20

REAR FOOTREST - Call your local BRP dealership

705202085

Unavailable

21

MID TUBE - Call your local BRP dealership

705201992

$26.12

22

Hex. Flange Screw M8 x 60

207686044

$2.56

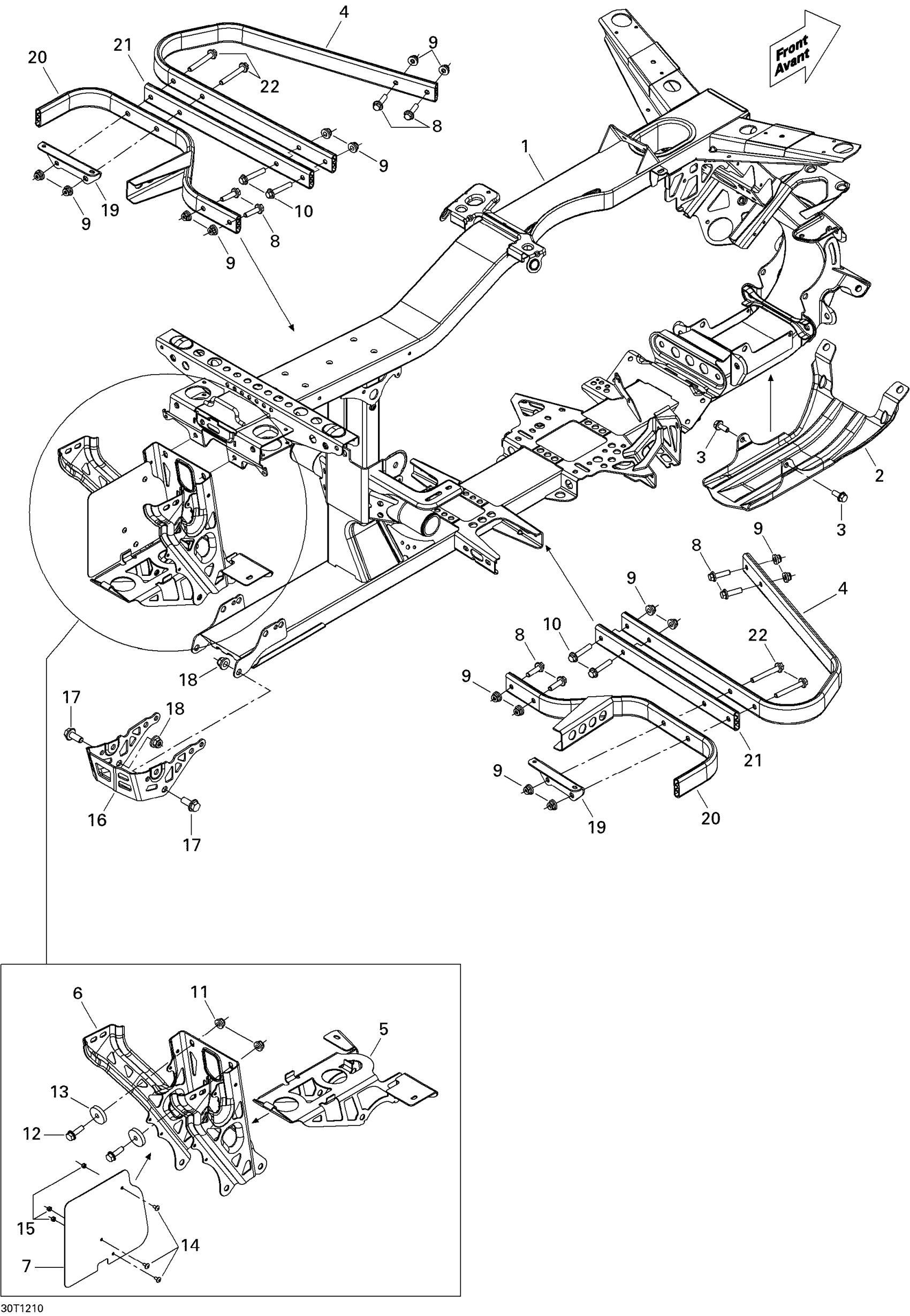

Can-Am Renagade 500EFI STD, 2012 Frame Diagram

BLACK FRAME - Call your local BRP dealership

SPACER - Call your local BRP dealership

SUPPORT, BLACK - Call your local BRP dealership

SUPPORT PLATE, BLACK - Call your local BRP dealership

REAR FOOTREST - Call your local BRP dealership
