Description

Price

1

FRONT PROCTECTION PLATE - Call your local BRP dealership

705002248

$14.58

2

Hex. Flange Screw M6 X 45

207664544

$1.07

3

Hex. Flange Screw M6 X 50

207665044

$3.38

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

5

Spacer

705005809

$11.98

6

Hex. Flange Screw M6 X 20

207662044

$1.66

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Lever Indicator

705003838

$27.66

9

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Flat Washer

224061201

$1.11

12

WELDED SUPPORT - Call your local BRP dealership

705003657

Unavailable

13

U Reinforcement

705003647

$6.92

14

Hex. Flange Screw M8 X 50

207685044

$1.39

16

Hex. Flange Elastic Nut M8

233281414

$1.14

17

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

18

Hex. Flange Screw M6 X 45

207664544

$1.07

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

FUSE HOLDER SUPPORT - Call your local BRP dealership

705002671

Unavailable

21

WELDED SUPPORT - Call your local BRP dealership

705003663

Unavailable

22

LH INNER FENDER - Call your local BRP dealership

705003379

$26.12

23

Tuflok Plastic Rivet

293150230

$1.21

24

RH INNER FENDER - Call your local BRP dealership

705002241

$25.35

25

Reflective Sheet

705002451

$8.98

26

Knob

517303439

$3.73

27

Hex. Screw K50 X 45

241154540

$1.74

28

Washer | DS 650 X

391301600

$0.48

29

Grommet

709000582

$4.38

30

Thread Cover

705004036

$19.20

31

Hex. Flange Screw M6 X 16

207661654

$1.74

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

33

Amber Reflector | Except Europe Model

705011222

$12.32

34

Red Reflector

705011221

$12.32

35

Hex. Flange Elastic Nut M5

233251414

$1.66

36

LH REFLECTOR SUPPORT - Call your local BRP dealership | Except Europe Model

705002456

$6.89

37

RH REFLECTOR SUPPORT - Call your local BRP dealership | Except Europe Model

705002459

$6.89

38

MASTER CYLINDER COVER - Call your local BRP dealership

705003650

Unavailable

39

Pop Rivet 3/16"

293150103

$0.54

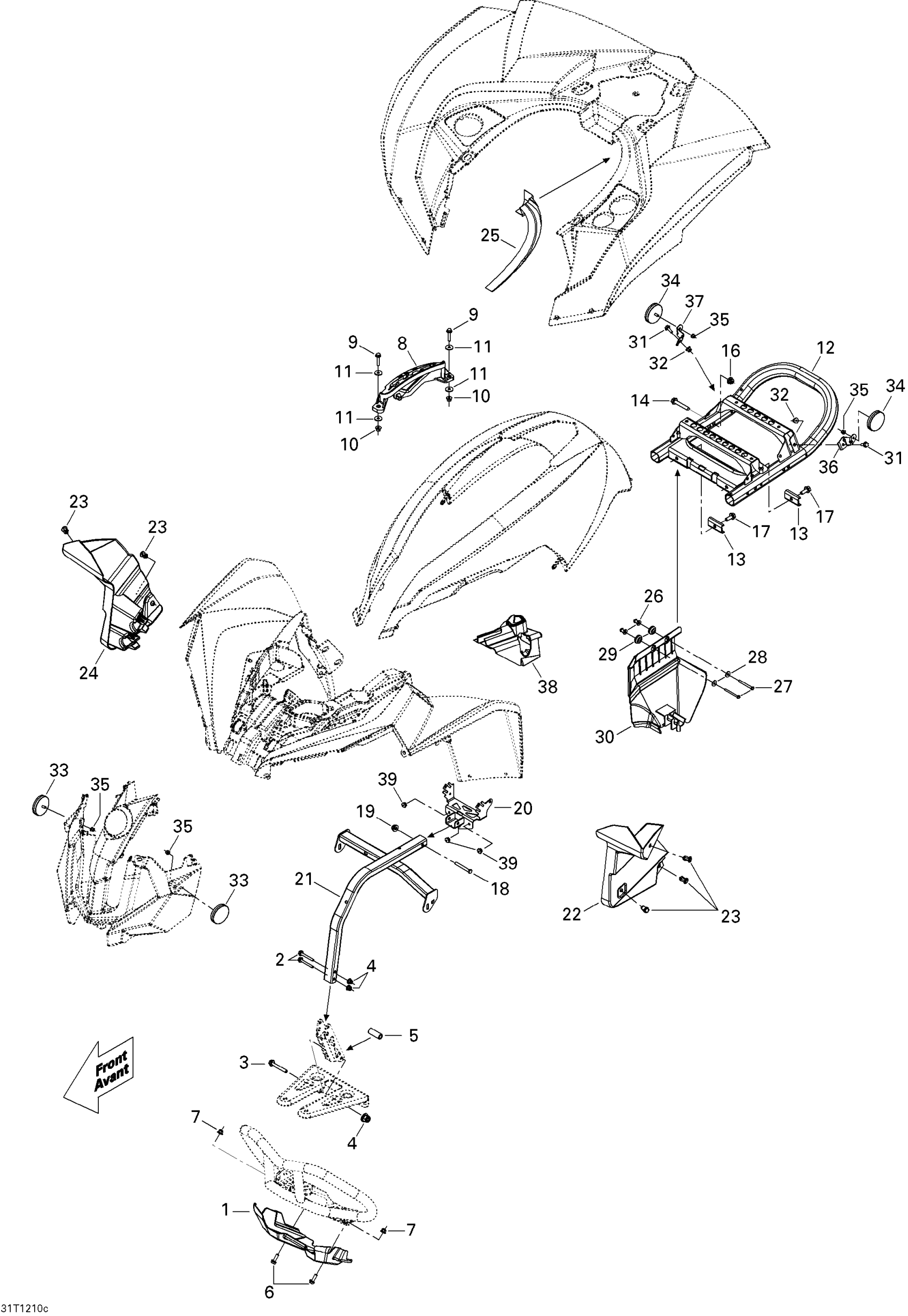

Can-Am Renagade 500EFI STD, 2012 Body And Accessories 3 Diagram
