Description

Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

705600593

$186.12

2

Brake Pad Kit

705600004

$49.97

3

Piston Set

705600078

$36.89

4

Spring

705600079

$14.37

5

Bleeding Screw

705600080

$15.22

6

Pin Set (2)

705600081

$19.20

7

Compression Boot

705600082

$10.14

8

Compression Boot

705600083

$10.14

10

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

705600594

Unavailable

11

Brake Pad Kit

705600014

$49.97

12

Piston Set

705600078

$36.89

13

Spring

705600079

$14.37

14

Bleeding Screw

705600080

$15.22

15

Pin Set (2)

705600081

$19.20

16

Compression Boot

705600082

$10.14

17

Compression Boot

705600083

$10.14

19

LH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 1 to 9

705600845

Unavailable

20

Lever Arm

705600243

$50.74

21

Cap Set

705600084

$23.05

22

Brake Lever Bolt Kit

705600246

$14.75

23

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

24

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

25

COMPRESSION BOOT - Call your local BRP dealership

705600089

$9.74

26

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

28

RH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 27 to 35

705600956

$160.74

29

LEVER ARM - Call your local BRP dealership

705600629

$41.51

30

SWITCH KIT - Call your local BRP dealership

705600086

$19.97

31

Cap Set

705600084

$23.05

32

BOLT KIT - Call your local BRP dealership

705600085

$13.05

33

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

34

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

35

COMPRESSION BOOT - Call your local BRP dealership

705600089

$9.74

36

Brake Hose, Front | Includes 36 to 37

705600699

Unavailable

37

Clamp

293650256

$4.36

38

BRAKE HOSE, FRONT LH - Call your local BRP dealership | Includes 38 to 39

705601054

$56.12

39

Clamp

293650256

$4.36

40

BRAKE HOSE, FRONT RH - Call your local BRP dealership | Includes 40 to 41

705600698

$64.58

41

Clamp

293650256

$4.36

42

Hex. Flange Screw M6 X 16

210261650

$1.22

43

Flat Washer

224061121

$0.44

44

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

45

Banjo Bolt

705600958

$7.60

46

Copper Washer

705601628

$4.34

47

BRAKE HOSE - Call your local BRP dealership | Includes 80 to 81

705600700

$146.89

48

Clamp

293650256

$4.36

49

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

50

Master Cylinder | Includes 36 to 44, STD Model

705600751

$212.28

51

Piston Set

705600255

Unavailable

52

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

53

Circlip

705600068

Unavailable

54

Compression Boot

705600090

Unavailable

55

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

56

OIL HOUSING HOSE - Call your local BRP dealership

705600754

$66.12

58

Pin Kit

219702305

$26.62

59

Yoke

705600100

Unavailable

60

Hex. Nut M8

232081414

$0.60

61a

Pop Rivet 3/16"

293150103

$0.54

61b

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

61c

Pop Rivet 3/16”

390910000

$0.48

62

Hex. Flange Screw M6 X 10

210261040

$1.25

63

Brake Switch

705600798

$50.74

64

REAR CALIPER - Call your local BRP dealership | Includes 55 to 62

705600791

$217.66

65

LH Brake Pad Kit

705600398

$49.97

66

Spring

705600079

$14.37

67

Bleeding Screw

705600080

$15.22

68

Pin Set (2)

705600081

$19.20

69

Compression Boot

705600082

$10.14

70

Compression Boot

705600083

$10.14

73

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

75

SPLITTER - Call your local BRP dealership

705600800

$139.97

76

HEX HEAD PIPE PLUG M10 DIN910 - Call your local BRP dealership

250100122

$3.38

77

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

$5.28

78

Bushing | DS 650 X

293900104

$5.26

80

BRAKE HOSE, REAR - Call your local BRP dealership | Includes 47 to 48

705600960

$103.82

81

Clamp

293650256

$4.36

82

BRAKE HOSE, REAR - Call your local BRP dealership

705600701

Unavailable

83

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

$56.89

84

Brake Pedal Spring

705600792

$9.22

85

Hex. Flange Screw M6 X 20

207662044

$1.66

86

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

88

O-Ring

293300144

$3.98

89

Inner Spacer

705600815

$10.98

90

Hex. Flange Screw M10 X 55

207605544

$2.78

91

Hex. Flange Elastic Nut M10

233201414

$1.26

92

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

93

Disk Brake

705600604

$56.89

94

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

95

Disk Brake

705600604

$56.89

96

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

97

Hex. Flange Screw M6 X 25

207662544

$0.53

98

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

99

BRACKET - Call your local BRP dealership

705600795

Unavailable

A

Tie-Rap 180 mm

414115200

$0.09

B

Tie Wrap 368 mm

293750008

$0.85

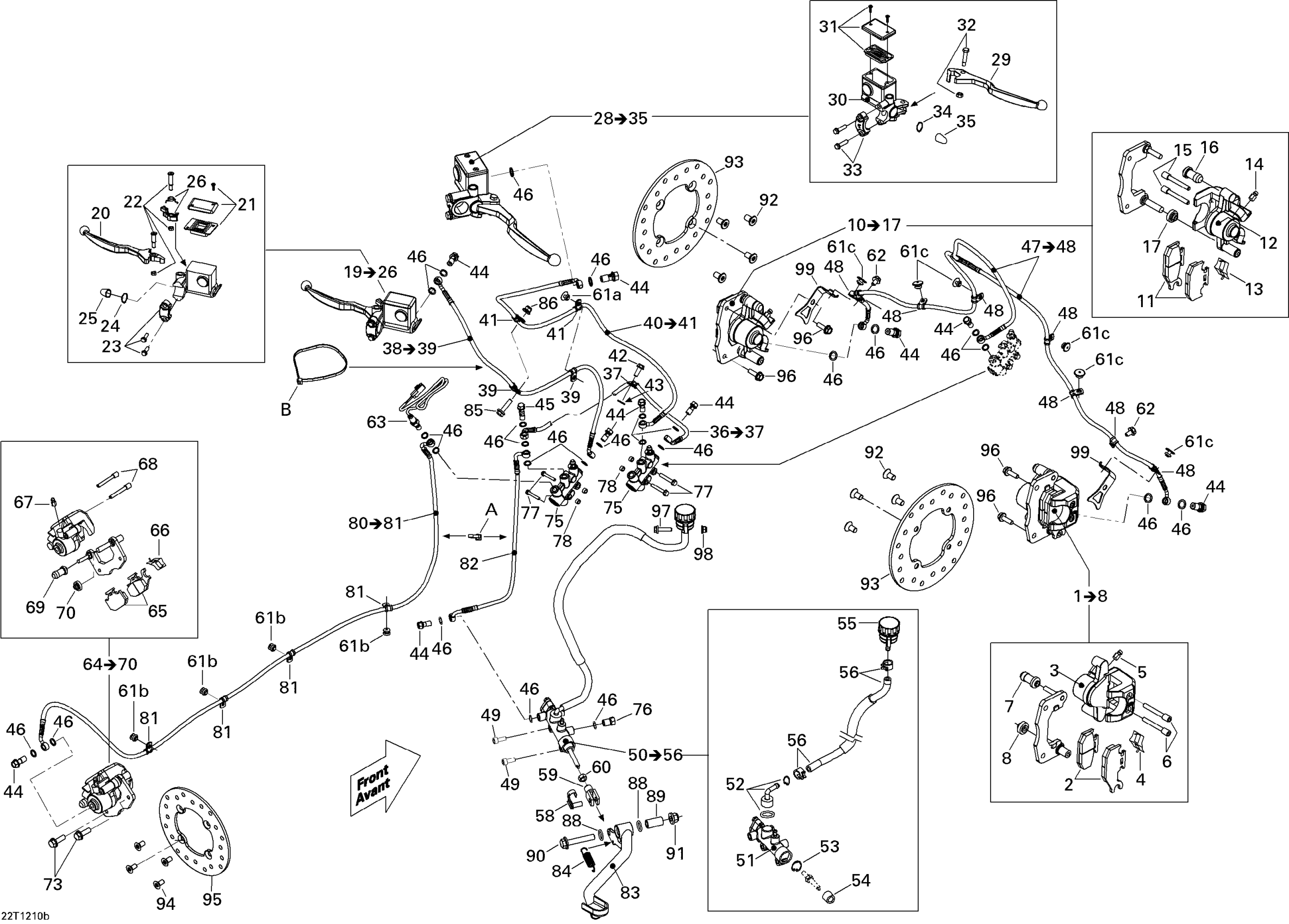

Can-Am Renagade 500EFI STD, 2012 Brakes Europe Diagram
