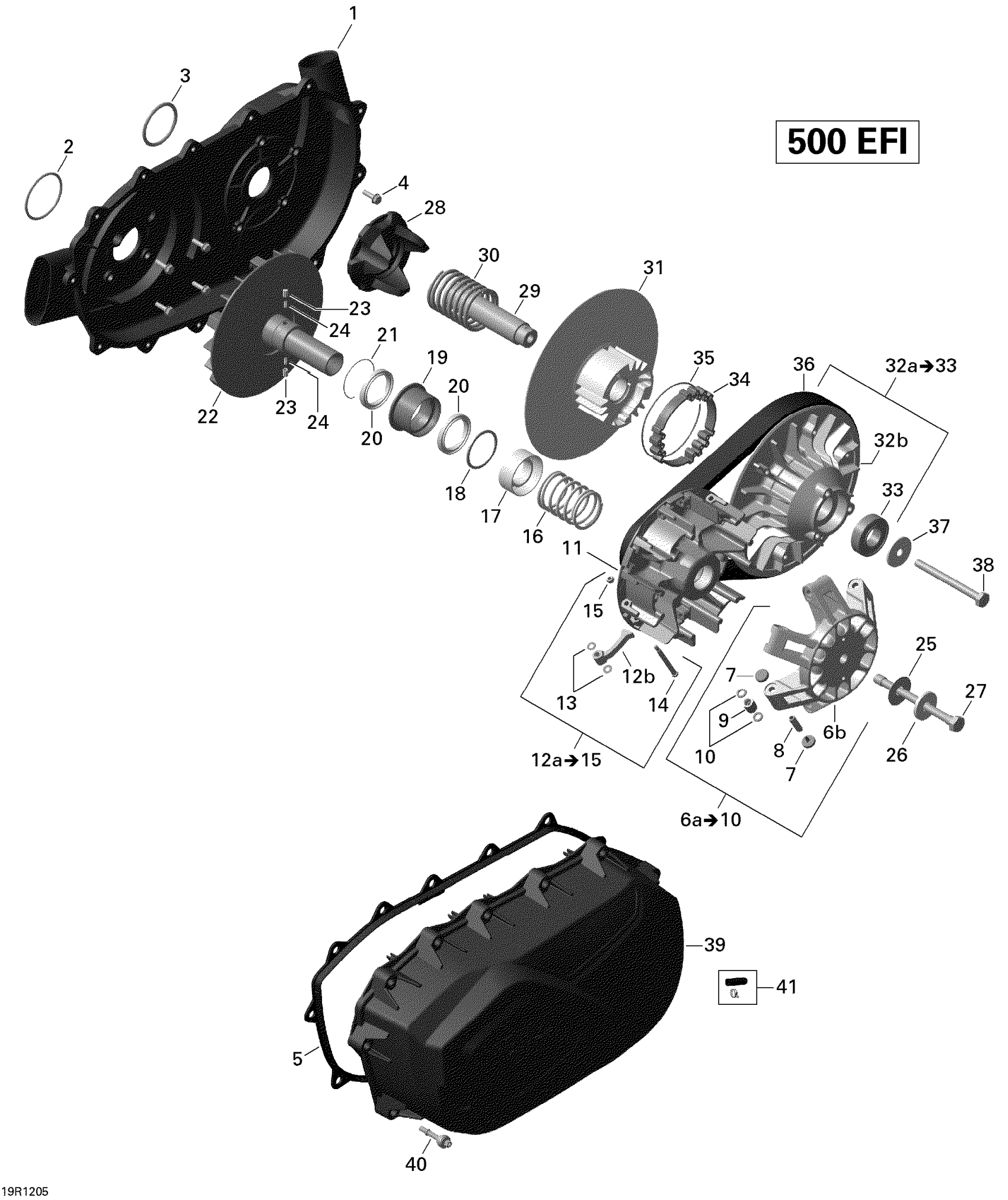

Can-Am Renagade 500EFI STD, 2012 Transmission Diagram

#

Description
Price

1

CVT Air Guide

420612304

$172.36

2

O-Ring

420430408

$4.87

3

O-Ring

420631089

$4.87

4

Hex.Screw M6 X 20

420441311

$4.87

5

Gasket

420430126

$38.78

6a

Governor Cup Ass'y | Includes 6 to 9

420280522

$241.76

6b

Not Available As Spare Part - Friction Washer

Unavailable

7

Slider Shoe Set

420281296

$41.01

8

Roller Axle

417223257

$6.37

9

Roller

417223767

$7.15

10

Roller

417223767

$7.15

11

Outer Haft

420280467

$188.03

12a

Centrifugal Lever Set | Includes 14a to 17

420248555

$146.99

12b

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Compression Spring

420238166

$32.06

17

Seat Spring

420627578

$32.81

18

Friction Washer

420460430

$12.37

19

Drive Pulley Clutch

420257195

$109.24

20

Ball Bearing

420632377

$46.24

21

Retaining Ring

420245951

$5.39

22

Inner Half

420280374

$170.12

23

Spring Sleeve

420229577

$17.13

24

Spring

420239134

$2.90

25

Thrust Washer

420627920

$6.93

26

Spring Washer

420627768

$18.63

27

Hex. Screw M12 X 140

420641859

$23.10

28

Driven Pulley Cam

420280199

$88.78

29

Driven Pulley Shaft

420220914

$115.64

30

Compression Spring, Driven Pulley

420238173

$51.46

31

Inner Half Ass'y | Includes 33 to 35

420248233

$293.54

32a

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.76

32b

Not Available As Spare Part - Friction Washer

Unavailable

33

Ball Bearing

420932421

$26.09

34

Torque Gear

420660124

$21.61

35

Retaining Ring

420245911

$5.31

36

V-Belt

422280366

$167.13

37

Thrust Washer

420627594

$11.81

38

Hex. Screw M10 X 110

420441485

$11.37

39

Variator Cover

420611397

$196.99

40

Allen Screw M6 x 30,5

420440561

$4.21

41

Drain Plug Kit

707001179

$8.93
