Description

Price

1

Fuel Tank Ass'y

709000220

$235.35

2

Nut, Fuel Pump Module

513033040

$27.66

3

Bushing | DS 650 X

293900104

$5.26

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

5

Hex. Flange Screw M6 X 25

207662544

$0.53

6

Washer

224060251

$0.57

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Seal

709000208

$12.54

9

Fuel Pump Kit Ass'y

703500766

$368.77

10

Fuel Vent Kit

715001288

$32.28

11

Fuel Pre-Filter Kit

709000389

$78.43

12

Not Available As Spare Parts

XXX

Unavailable

13

Was 709000163 Fuel Line

219704440

$108.43

14

Not Available As Spare Parts

XXX

Unavailable

15

Not Available As Spare Parts

XXX

Unavailable

16

Polyurethane Hose 10000Mm Long

219704410

$46.12

17

Polyurethane Hose 10000Mm Long

219704410

$46.12

18

Polyurethane Hose 10000Mm Long

219704410

$46.12

19

Polyurethane Hose 10000Mm Long

219704410

$46.12

20

Filter

709000330

$8.29

21

Not Available As Spare Parts

XXX

Unavailable

22

Fuel Tank Cap

513033025

$19.47

23

Fuel Tank Cap | Europe

709000267

$56.89

24

Tie Wrap 94 mm | 4X4

293750001

$0.83

25

Not Available As Spare Parts

XXX

Unavailable

26

Was 293200017 Neoprene Seal

219704365

$118.27

27

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

28

PLASTIC TUKLOCK RIVET - Call your local BRP dealership

293150168

$1.62

29

REFLECTING SHEET - Call your local BRP dealership

709000360

$4.03

30

Oval Washer

705000321

$4.64

31

Was 709000163 Fuel Line

219704440

$108.43

32

Was 709000163 Fuel Line

219704440

$108.43

33

Was 409901800 Tubing (13 mm)

219704400

$9.40

34

Female Quick Fitting Ass'y

709000125

$11.12

35

Locking Clip

513033135

$5.11

36

Y-Fitting, 5/16''

293710136

$6.45

37

Elbow Male Connector

414580600

$3.50

38

Check Valve

513033469

$25.32

39

Grommet

293720029

$1.13

40

Check Valve

275500398

$8.57

41

Y-Fitting

293710059

$8.19

42

REFLECTING SHEET - Call your local BRP dealership

709000204

$6.49

43

Oetiker Clamp

293650046

$2.33

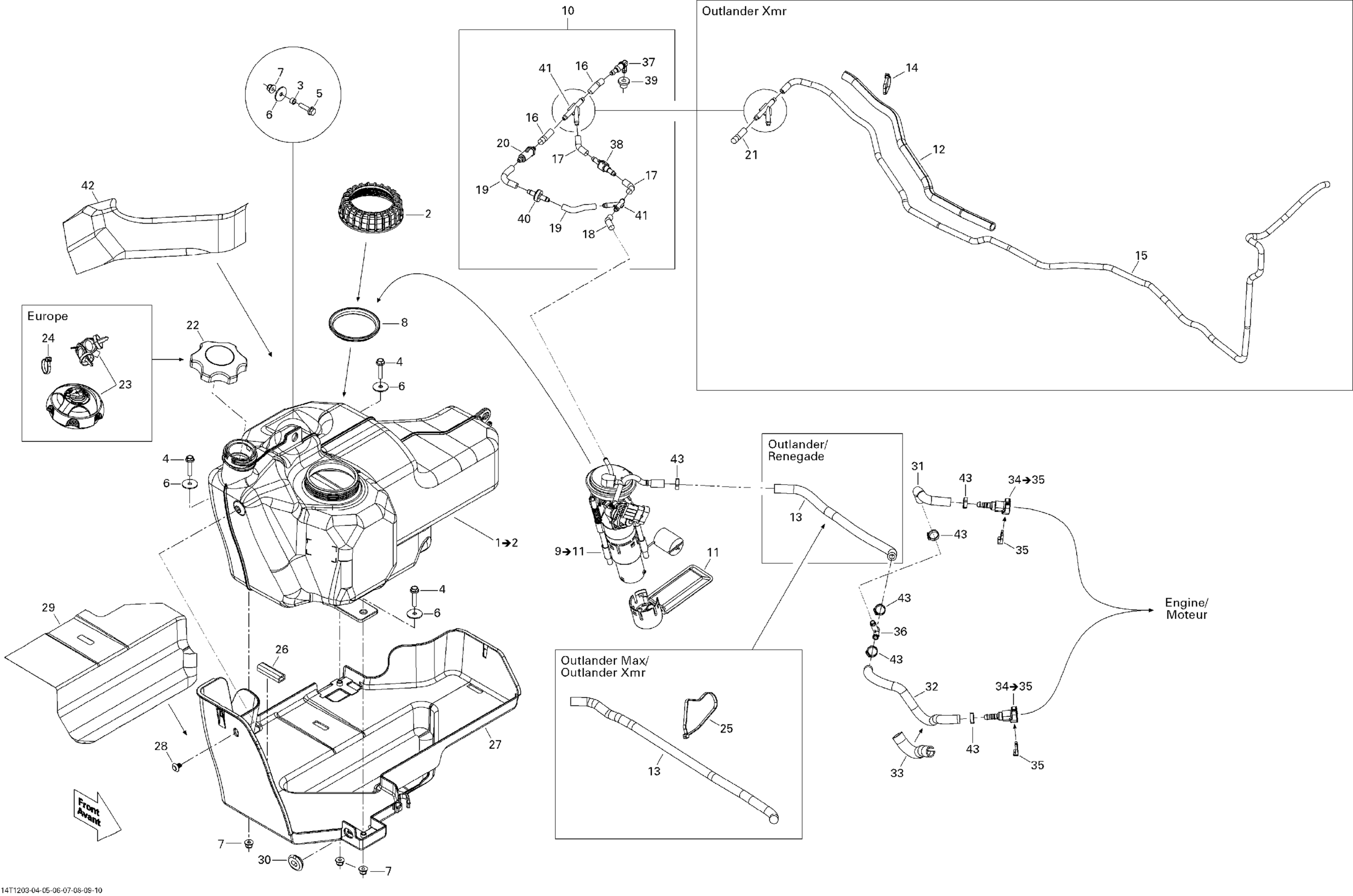

Can-Am Renagade 500EFI STD, 2012 Fuel System Diagram

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

TANK PROTECTOR - Call your local BRP dealership
