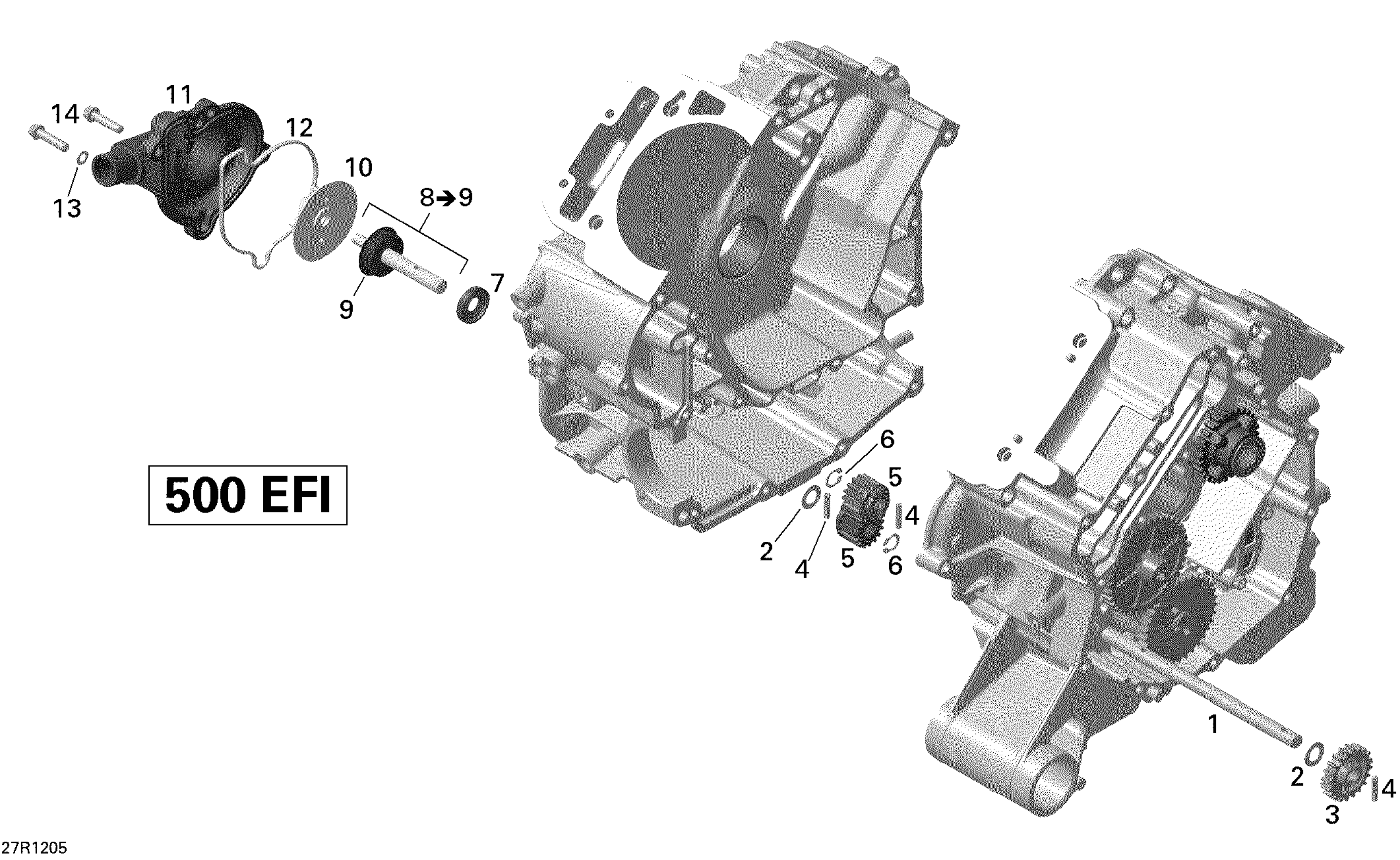

Can-Am Renagade 500EFI STD, 2012 Engine Cooling Diagram

#

Description
Price

1

Intermediate Shaft

420620500

$34.30

2

Thrust Washer

420827590

$3.75

3

Water Pump Gear

420434330

$10.76

4

Needle Pin

420232420

$3.75

5

Pump Gear, 15 Teeth

420234627

$10.76

7

Oil Seal

420650315

$11.04

6

Snap Ring

420245330

$1.64

8

Water Pump Shaft Ass'y | Includes 8a to 8b

420620175

$67.88

9

Rotary Seal

420650371

$41.01

10

Water Impeller

420222505

$17.13

11

Kit Water Pump Housing

703501124

$48.48

12

Gasket

420651190

$8.09

13

Seal Washer

420230415

$1.72

14

Torx Flange Screw M6 X 25

420641238

$3.07
