Description

Price

1

Cylinder Head Gasket | 330HO

420630850

$59.97

2a

Cylinder Head | Includes 2a to 3

420623941

$689.97

2b

Not Available As Spare Part - Friction Washer

Unavailable

3

Stud M8 x 26

420941014

$10.58

4

Intake Valve 31MM

420254359

$35.35

5

Exhaust Valve 27MM

420254368

$68.43

6

Thrust Washer

420627525

$1.50

7

Valve Stem Seal

420230515

$11.89

8

Valve Spring

420239295

$13.58

9

Valve Spring Retainer

420254132

$13.58

10

Cotter Valve

420254120

$4.00

11

Torx Screw M10X140

420641551

$13.58

12

Torx Flange Screw M6 X 85

420641228

$6.11

13

CAMSHAFT - Call your local BRP dealership

420620747

$327.99

14

Torx Screw M6 X 16

420241529

$1.56

15

Holding Strip

420627743

$17.66

16

Bearing Screw M6

420240943

$4.29

17

Chain Tension Guide

420436015

$23.82

18

Chain Guide

420236584

$7.31

19

Chain Guide

420236351

$14.12

20

Silent Chain

420297063

$63.82

21

Camshaft Sprocket

420254434

$36.12

22

Hex. Collar Screw M8 X 20 | 330HO

420241721

$7.23

23

Chain Tensioner Housing

420236510

$11.09

24

O-Ring

420430373

$2.63

25

Torx Flange Screw M6 X 25

420641238

$2.68

26

Chain Tensioner Plunger

420236521

$14.48

27

Spring

420238120

$7.23

28

O-Ring

420250890

$2.50

29

Plug Screw

420641150

$7.23

30

Pin #12, Small, M6 X 90

420229712

$15.35

31

Shim

420944382

$4.00

32

Inlet Rocker Arm

420254907

$138.43

33

Exhaust Rocker Arm

420254911

$141.51

34

Adjustment Screw M6 X 0.75

420241337

$4.89

35

Hex Nut M6

420242913

$0.52

36

Allen Screw M6 x 30,5

420440561

$3.67

37

Gasket

420630260

$8.34

38

Valve Cover

420610393

$26.12

39a

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

420222494

$50.74

39b

Not Available As Spare Part - Friction Washer

Unavailable

40

Thermostat Gasket

420650300

$8.34

41

Thermostat Cover

420222696

$3.09

42

Gasket Ring

420650255

$4.00

43

Screw M5 X 16

420441621

$3.11

44

Torx Flange Screw M6 X 45

420641198

$3.38

45

Connection Socket

420222894

$46.89

46

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$7.87

47

Copper Washer

420250640

$0.81

48

Plug screw

420841924

$13.58

49

Clamp

420251578

$7.05

50

Water Tube

420822353

$19.20

51

Spark Plug, NGK DCP-R8E

715900637

$5.66

52

Valve Guide

420254374

$28.99

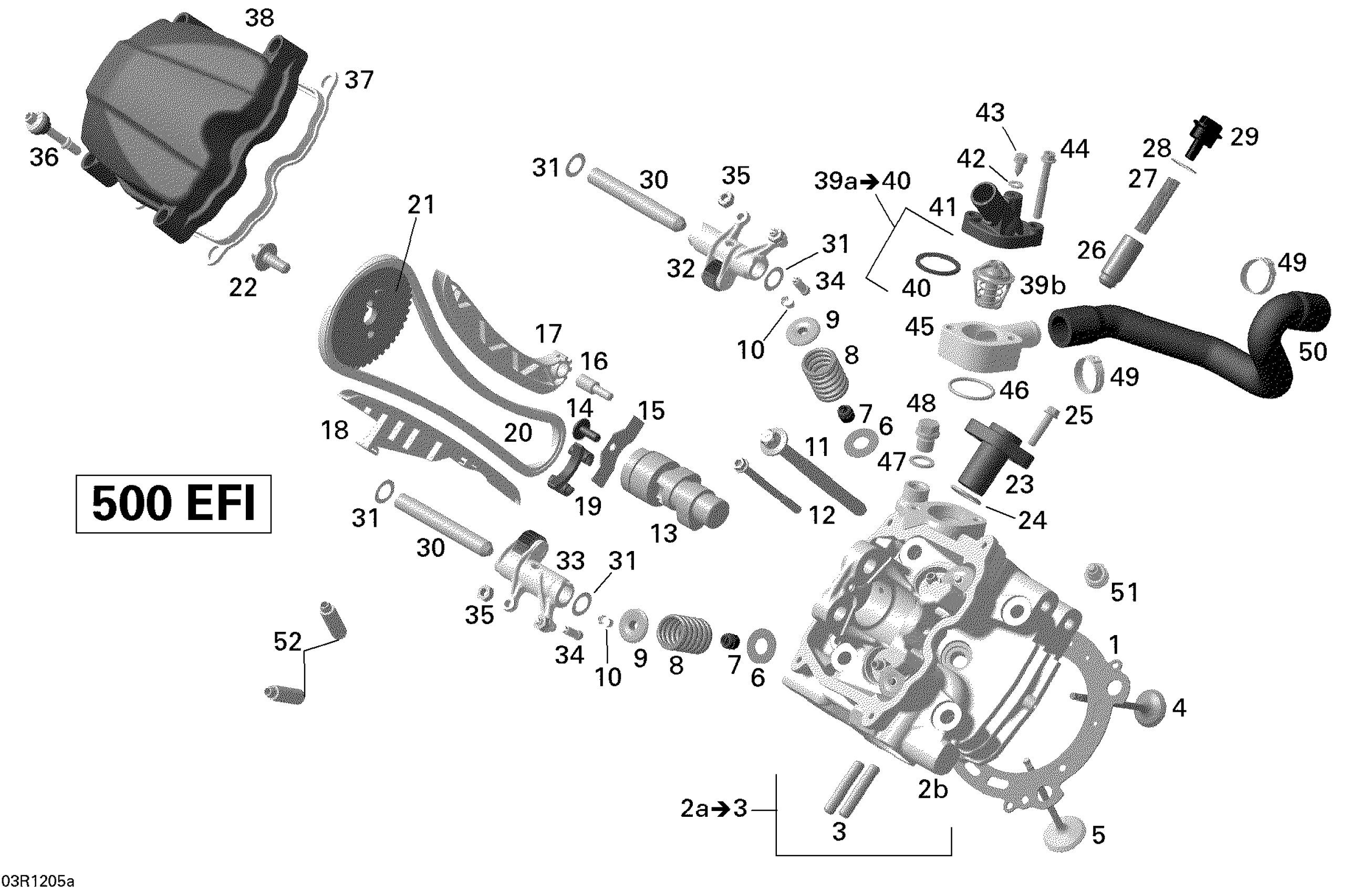

Can-Am Renagade 500EFI STD, 2012 Cylinder Head, Front Diagram
