1976 Suzuki RE5 Rear HUB Diagram

← All diagrams

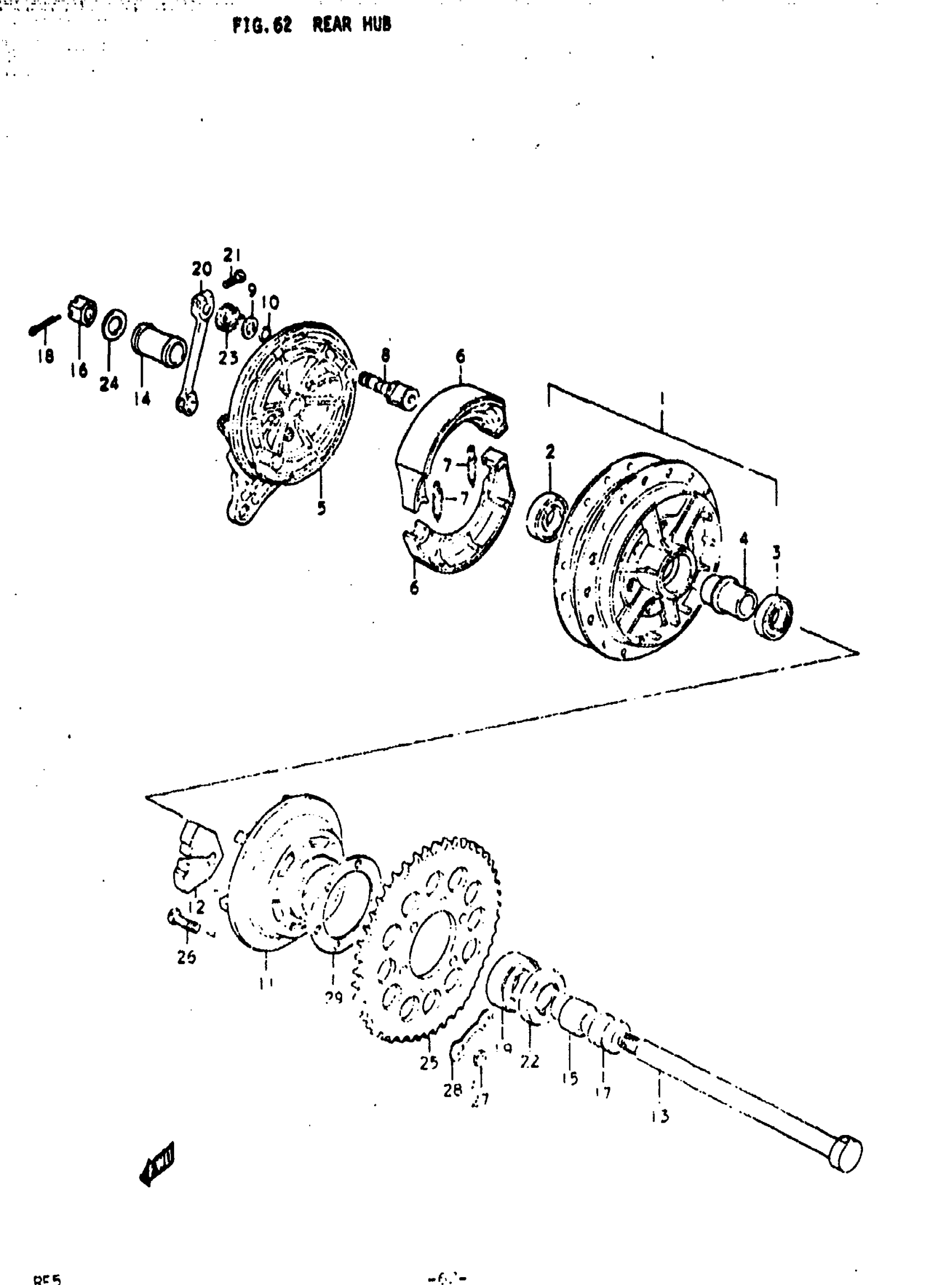

Find the part on the Rear HUB diagram for your 1976 Suzuki RE5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Suzuki RE5 Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB | M,A; Includes Item(s) 2 - 4

64100-31830

1
Out of stock

3

BEARING, LH | M,A This part replaces 08143-62040.

09262-20042

1
Out of stock

4

SPACER, BEARING | M,A

64730-31000

1
Out of stock

5

PANEL | M,A

64210-31002

1
Out of stock

6

SHOE SET, BRAKE | M,A This part replaces 64410-31000.

64400-31830

2
Out of stock

7

SPRING | M,A

55420-30000

2
Out of stock

8

CAM, BRAKE | M,A This part replaces 54440-11003.

64440-38A00

1
Out of stock

9

WASHER | M,A; 15x24x1.6 This part replaces 09160-15001.

09160-15048

1
Out of stock

10

O RING (ID:14.8,D:2.40) | M,A This part replaces 09280-15001.

09280-15003

1
Out of stock

11

DRUM, SPROCKET | M,A This part replaces 64611-31000.

64611-31003

1
Out of stock

12

SHOCK ABSORBER, HUB | M,A This part replaces 64651-31000.

64651-31001

6
Out of stock

13

AXLE | M,A

64711-37000

1
Out of stock

14

SPACER, RH | M,A; L:49

09180-20053

—
Out of stock

15

SPACER,RR HUB B | M,A This part replaces 64733-31000.

64733-3100V

1
Out of stock

16

NUT | M,A This part replaces 08314-31188.

08314-3118A

1
Out of stock

17

SPACER, LH | M,A; 20x33x28.3

09180-20054

1
Out of stock

18

PIN, REAR AXLE | M,A This part replaces 04111-40308.

04111-4030A

1
Out of stock

19

BEARING, DRUM | M,A; FROM 08113-63050 This part replaces 08113-63054.

09262-25073

1
Out of stock

20

LEVER, BRAKE CAM | M,A

64451-37000

1
Out of stock

21

BOLT | M,A This part replaces 01112-06258.

01500-06257

1
Out of stock

22

OIL SEAL | M,A

09285-33001

1
Out of stock

23

SPRING | M,A This part replaces 09448-30001.

09448-30001-XC0

1
Out of stock

24

WASHER | M,A; 19x34x4

09160-19008

1
Out of stock

25

SPROCKET | M,A; NT:43, #630

64511-37000

1
Out of stock

26

BOLT | M,A This part replaces 09119-10002.

09105-10001

6
Out of stock

27

NUT | M,A

09140-10018

—
Out of stock

28

WASHER | M,A

09169-10007

3
Out of stock

29

SPACER, SPROCKET | M,A

64531-37000

—
Out of stock
