1976 Suzuki RE5 OIL Cooler Diagram

← All diagrams

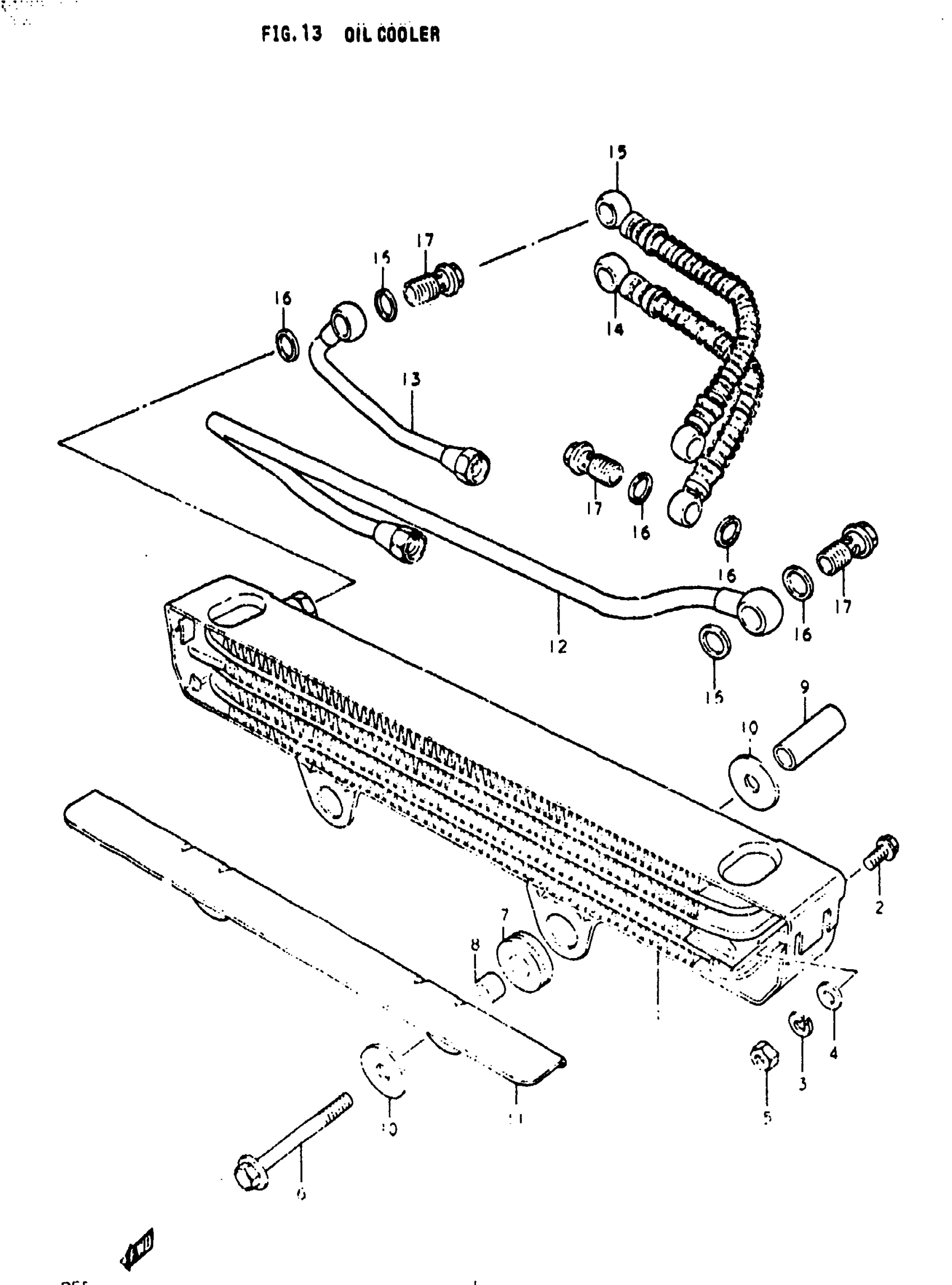

Find the part on the OIL Cooler diagram for your 1976 Suzuki RE5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Suzuki RE5 OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COOLER ASSY, OIL | M; TO 16600-37011 WITH REF. NO. 14~17. This part replaces 16600-37010.

16600-37011

1
Out of stock

1

COOLER ASSY, OIL | A

16600-37011

1
Out of stock

2

BOLT | M,A This part replaces 01511-06128.

01550-06127

2
Out of stock

3

2

$2.28

In stock

4

.WASHER | M,A This part replaces 08322-11068.

08322-0106B

2
Out of stock

5

.NUT | M,A This part replaces 08311-11068.

08310-00067

2
Out of stock

6

BOLT | M,A This part replaces 01511-08658.

01550-08657

2
Out of stock

7

CUSHION | M,A

16611-37000

—
Out of stock

8

SPACER, TAIL COVER RR RR | M,A; 8.6x13.8x9 This part replaces 09180-08050.

09180-08199

4
Out of stock

9

SPACER | M,A

16621-37000

2
Out of stock

10

WASHER | M,A; 8.5x29x2

09160-08006

4
Out of stock

11

PROTECTOR, OLL COOLER | M,A

16622-37000

1
Out of stock

12

PIPE, COOLING OLL NO.1 | M

16460-37011

1
Out of stock

13

PIPE, COOLING OLL NO.2 | M

16470-37011

1
Out of stock

14

HOSE, COOLING OLL NO. 1 | A

16460-37012

1
Out of stock

15

HOSE, COOLING OLL NO.2 | A

16470-37012

1
Out of stock

16

GASKET | M,A

09168-14007

4
Out of stock

17

UNION BOLT | MA

09360-14001

—
Out of stock
