1976 Suzuki RE5 AIR Inlet Diagram

← All diagrams

Find the part on the AIR Inlet diagram for your 1976 Suzuki RE5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

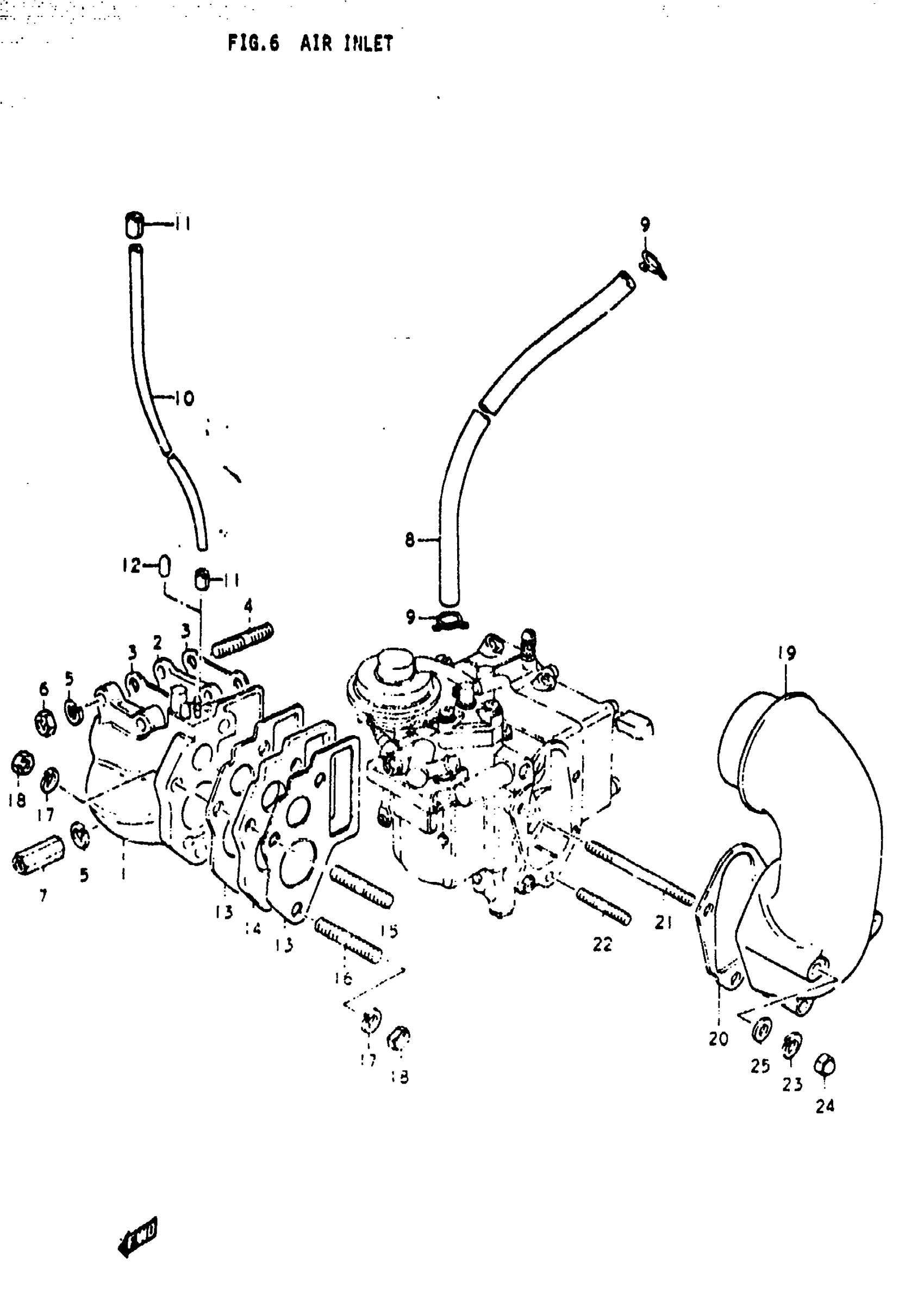

1976 Suzuki RE5 AIR Inlet Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD, INTAKE | M,A

13110-37001

1
Out of stock

2

SPACER | A

13122-37990

1
Out of stock

3

GASKET | MA

13121-37001

1
Out of stock

4

BOLT,STUD | M,A This part replaces 01421-08258.

01421-0825A

4
Out of stock

6

3

$1.93

In stock

7

NUT | M,A

09159-08017

—
Out of stock

8

HOSE, FUEL COCK BOOST | M,A; 5x8.2x110

09343-05057

—
Out of stock

9

CLIP | M,A

09401-08401

2
Out of stock

10

.HOSE (3X5X600) | M; 3x5x200 This part replaces 09343-03009.

09352-30504-600

1
Out of stock

11

CLIP | M

09401-04401

2
Out of stock

12

CAP, VACUUM SWITCH UNION | A

13112-37990

—
Out of stock

13

GASKET, CARBURETOR | M; FROM 13125-37001M; FROM 13125-37001

13125-37002

1
Out of stock

14

SPACER, CARBURETOR | A

13129-37000

1
Out of stock

15

NO DESCRIPTION AVAILABLE | M This part replaces 01411-08258.

01411-08253

2
Out of stock

15

STUD BOLT | A

01411-08358

1
Out of stock

16

BOLT,STUD | M This part replaces 01411-08308.

01411-0830A

1
Out of stock

17

3

$2.28

In stock

18

3

$1.93

In stock

19

CONNECTOR, AIR INLET HOSE | M,A

13871-37000

1
Out of stock

20

GASKET | M,A

13879-37000

1
Out of stock

21

STUD BOLT | M,A

01411-06608

2
Out of stock

22

NO DESCRIPTION AVAILABLE | M,A This part replaces 01411-06258.

01411-06253

1
Out of stock

23

3

$1.97

In stock

24

NUT, LICENSE HOLDER | M,A This part replaces 08313-11067.

08313-10067

3
Out of stock

25

WASHER | M,A This part replaces 08322-21068.

08322-01067

3
Out of stock
