1973 Yamaha RD60 (RD60) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1973 Yamaha RD60 (RD60), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

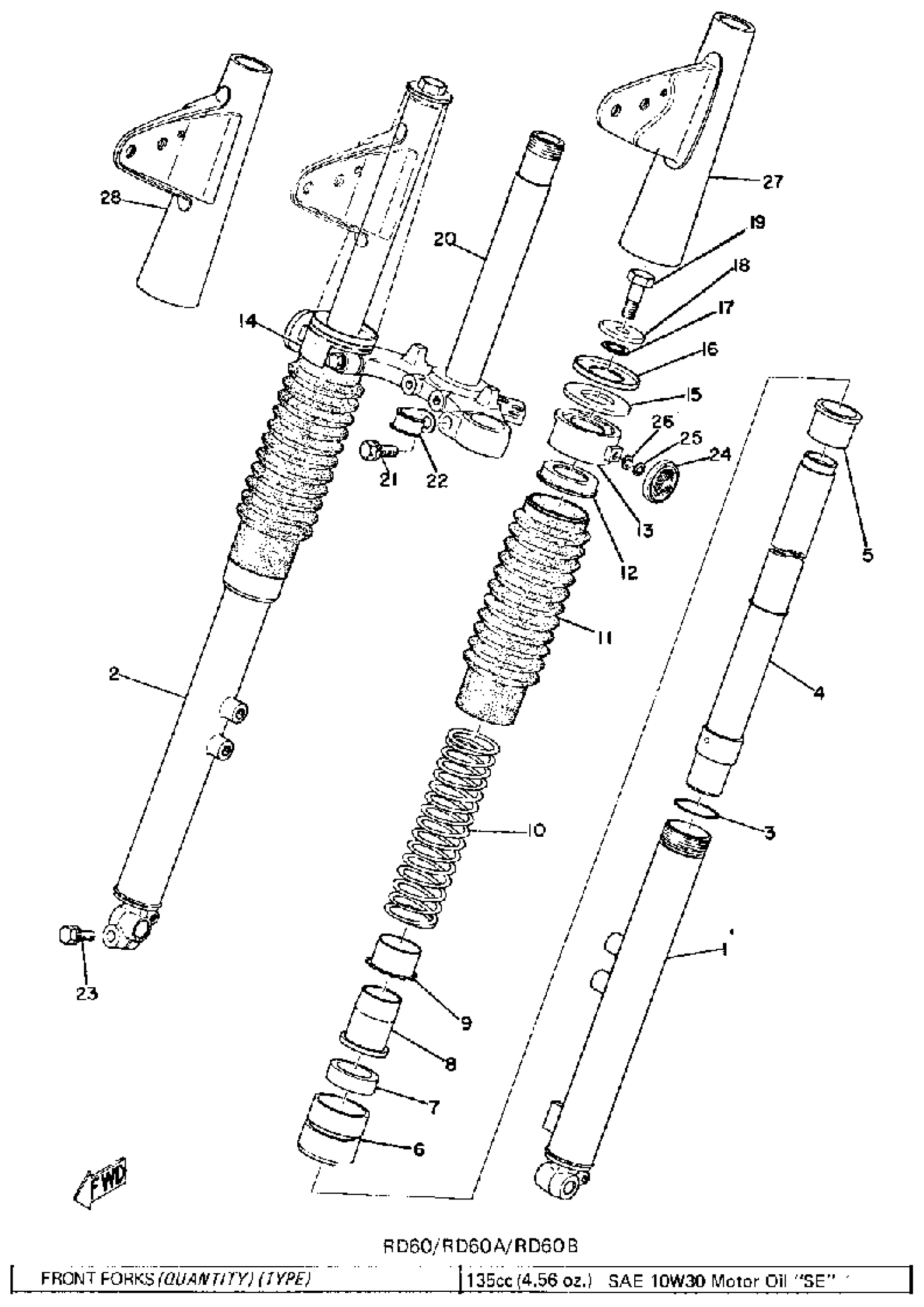

1973 Yamaha RD60 (RD60) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, OUTER 1

(353-23126-91-35)

1
Out of stock

1

FRONT FORK ASSEMBLY

(388-23101-60-00)

1
Out of stock

2

TUBE, OUTER 2

(353-23136-91-35)

1
Out of stock

3

O-RING

207-23147-00-00

1

$10.29

In stock

4

TUBE, INNER 1

(353-23124-90-00)

1
Out of stock

4

TUBE, INNER 2

(353-23134-90-00)

1
Out of stock

5

. METAL, SLIDE 1

109-23125-00-00

1
Out of stock

6

OUTER NUT

(209-23150-40-00)

1
Out of stock

7

OIL SEAL

109-23145-01-00

1

$26.86

In stock

8

SEAT, SPRING LOWER

(109-23143-00-00)

1
Out of stock

9

GUIDE, SPRING

(207-23117-00-00)

1
Out of stock

10

. SPRING FRONT FORK

355-23141-00-00

1
Out of stock

11

. BOOT, FRONT FORK

196-23191-40-00

1
Out of stock

12

SEAT, SPRING UPPER

(209-23142-40-00)

1
Out of stock

13

COVER, OUTER 1

(353-23122-90-00)

1
Out of stock

14

COVER, OUTER 2

(353-23132-90-00)

1
Out of stock

15

GASKET

(207-23163-00-00)

1
Out of stock

16

GUIDE, COVER LOWER

(207-23116-01-00)

1
Out of stock

17

GASKET

307-23114-00-00

—
Out of stock

18

WASHER, CAP

207-23112-00-00

—

$21.37

In stock

19

BOLT, CAP

205-23111-40-00

—

$9.55

In stock

20

UNDER BRACKET

(353-23340-91-33)

1
Out of stock

21

BOLT 1

122-23346-02-00

—

$6.25

In stock

22

. HOLDER, CABLE 1

260-23318-40-00

1
Out of stock

23

BOLT, WITH WASHER

(90119-08010-00)

1
Out of stock

24

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

25

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

26

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

27

COVER, UPPER 1

(388-23121-60-66)

1
Out of stock

27

COVER, UPPER 1

(388-23121-60-F2)

1
Out of stock

27

COVER, UPPER 1

(388-23121-60-K7)

1
Out of stock

28

COVER, UPPER 2

(388-23131-60-66)

1
Out of stock

28

COVER, UPPER 2

(388-23131-60-F2)

1
Out of stock

28

COVER, UPPER 2

(388-23131-60-K7)

1
Out of stock
