1973 Yamaha RD60 (RD60) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1973 Yamaha RD60 (RD60), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

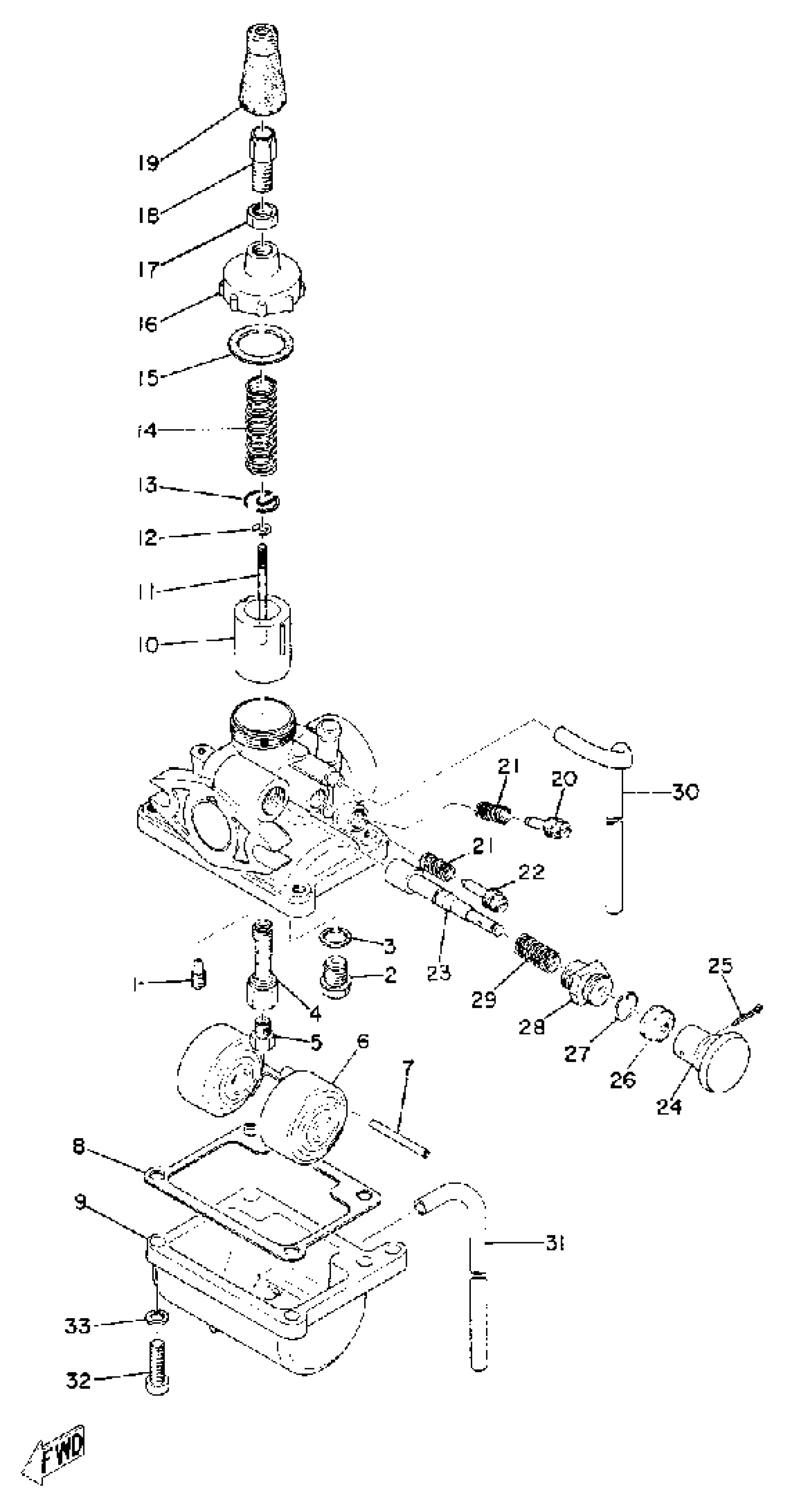

1973 Yamaha RD60 (RD60) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JET, PILOT (# 25)

260-14142-25-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(388-14101-00-00)

1
Out of stock

2

VALVE SEAT ASSY (#1.2)

2E9-14190-12-00

1

$48.30

In stock

3

WASHER, VALVE SEAT

127-14195-00-00

1

$6.40

In stock

4

NOZZLE, MAIN(FSI)

127-14141-14-00

1
Out of stock

5

JET, MAIN #90

(127-14143-18-00)

1
Out of stock

5

. JET, MAIN #95

127-14143-19-00

1
Out of stock

5

JET, MAIN (NO.100)

127-14143-20-00

1
Out of stock

5

JET, MAIN (NO.110)

127-14143-22-00

—

$8.89

In stock

6

. FLOAT

353-14185-01-00

1
Out of stock

7

PIN, FLOAT

353-14186-00-00

1

$6.72

In stock

8

GASKET, FLOAT CHAMBER

353-14184-00-00

—
Out of stock

10

. VALVE, THROTTLE 1

353-14112-20-00

1
Out of stock

11

NEEDLE

(353-14116-02-00)

1
Out of stock

12

CLIP

(353-14137-00-00)

1
Out of stock

13

. SEAT, SPRING

439-14136-01-00

1
Out of stock

14

. SPRING, THRTL VALVE

353-14131-00-00

1
Out of stock

15

. GASKET

353-14126-00-00

1
Out of stock

16

TOP, MIXING CHAMBER

(353-14158-00-00)

1
Out of stock

17

NUT, WIRE ADJUSTING

802-14161-00-00

—

$6.65

In stock

18

CABLE ADJUST SCREW SET

12G-14106-00-00

—

$17.66

In stock

19

CAP

8A7-14169-00-00

—

$15.80

In stock

20

AIR SCREW SET

36R-14104-00-00

—

$8.77

In stock

21

SPRING, AIR ADJUSTING

127-14134-00-00

—

$6.37

In stock

22

THROTTLE SCREW SET

12G-14103-00-00

—
Out of stock

23

. PLUNGER, STARTER

304-14171-00-00

1
Out of stock

24

HOLDER

304-14261-00-00

—

$35.95

In stock

25

PIN, COTTER

91490-16020-00

1

$6.23

In stock

26

COVER, PLUNGER CAP

132-14173-00-00

—

$8.70

In stock

27

CLIP, PLUNGER

353-14138-00-00

—

$5.23

In stock

28

CAP, PLUNGER

152-14174-00-00

—

$28.48

In stock

29

SPRING, PLUNGER

156-14135-00-00

—

$7.72

In stock

30

PIPE, AIRVENT

(353-14197-00-00)

1
Out of stock

31

PIPE, OVERFLOW

(353-14196-00-00)

1
Out of stock

32

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

33

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock
