1979 Yamaha RD400 (RD400F) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

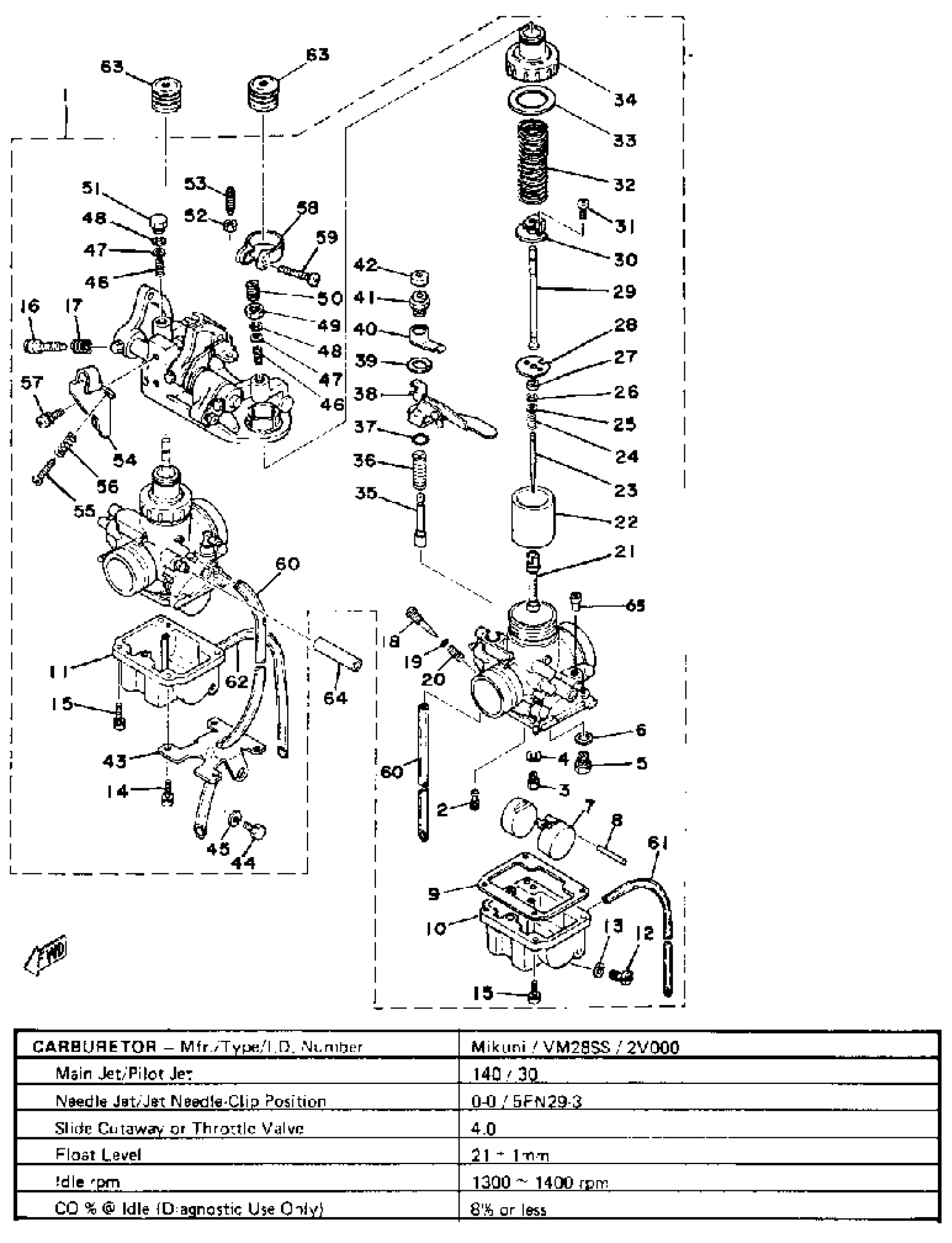

1979 Yamaha RD400 (RD400F) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY

(2V0-14100-00-00)

1
Out of stock

2

JET, PIL0T (# 30)

193-14142-30-A0

—
Out of stock

3

JET, MAIN #140

137-14143-28-A0

—

$8.78

In stock

4

WASHER,MAIN JET

137-14153-00-00

1
Out of stock

5

NEEDLE VALVE SET

23L-14107-25-00

1
Out of stock

6

WASHER, VALVE SEAT

214-14195-00-00

1

$6.11

In stock

7

. FLOAT

1A0-14185-00-00

1
Out of stock

8

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

9

GASKET, FLOAT CHAMBER

360-14184-01-00

1

$31.99

In stock

10

BODY, FLOAT CHMBR 1

(2V0-14181-08-00)

1
Out of stock

11

BODY, FLOAT CHMBR 2

(2V0-14183-00-00)

1
Out of stock

12

PLUG, DRAIN

68V-14191-00-00

1
Out of stock

13

. GASKET

266-14126-00-00

1
Out of stock

14

SCREW, PAN HEAD

98507-04018-00

1
Out of stock

15

SCREW, PAN HEAD

98517-04016-00

1
Out of stock

16

SCREW, THROTTLE

(2V0-14122-00-00)

1
Out of stock

17

SPRING, THRTL STOP

(2V0-14133-00-00)

1
Out of stock

18

SCREW, PILOT

(2N6-14923-00-00)

1
Out of stock

19

O-RING, PILOT SCREW

2H0-14147-00-00

—

$3.60

In stock

20

. SPRING, PILOT ADJUSTING

2H0-14212-00-00

1
Out of stock

21

NOZZLE, MAIN

(2V0-14141-30-00)

1
Out of stock

22

VALVE, THROTTLE 1

(2V0-14112-40-00)

1
Out of stock

23

. NEEDLE

644-14116-29-00

1
Out of stock

24

SPRING

(2N6-14589-03-00)

1
Out of stock

25

. WASHER

2N6-14227-01-00

1
Out of stock

26

CLIP

3FA-14137-00-00

—

$6.80

In stock

27

. RING

2N6-14918-01-00

1
Out of stock

28

PLATE, NEEDLE FTNG

(2V0-14946-00-00)

1
Out of stock

29

ROD

(2V0-14577-00-00)

1
Out of stock

30

PLATE

(2V0-14243-00-00)

1
Out of stock

31

SCREW PAN HEAD

98580-03010-00

—

$6.68

In stock

32

SPRING, THROTTLE VALVE

2V0-14131-00-00

—
Out of stock

33

GASKET

(2V0-14126-00-00)

1
Out of stock

34

TOP, MIXING CHAMBER

(2V0-14158-00-00)

1
Out of stock

35

. PLUNGER, STARTER

1A0-14171-00-00

1
Out of stock

36

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

37

O-RING (248)

93220-09001-00

—

$3.98

In stock

38

LEVER, STARTER 1

(2V0-14175-00-00)

1
Out of stock

39

WASHER, STARTER LEVER

(1A0-14179-00-00)

1
Out of stock

40

. PLATE, STARTER LEVER

(170-14178-00-00)

1
Out of stock

41

CAP, PLUNGER

(500-14174-00-00)

1
Out of stock

42

. COVER, PLUNGER CAP

802-14173-00-00

1
Out of stock

43

PLATE

(2V0-14146-00-00)

1
Out of stock

44

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

45

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

46

SPRING

(2V0-14275-00-00)

1
Out of stock

47

WASHER

(2V0-14285-00-00)

1
Out of stock

48

. CLIP

2V0-14137-00-00

1
Out of stock

49

NUT

(2V0-14594-00-00)

1
Out of stock

50

SCREW

(2V0-14567-00-00)

1
Out of stock

51

SCREW, STOP

(2V0-14565-00-00)

1
Out of stock

52

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

53

SCREW

(2V0-14216-00-00)

1
Out of stock

54

BRACKET 1

(2V0-14291-00-00)

1
Out of stock

55

STOP SCREW SET

(31A-1490K-00-00)

1
Out of stock

56

SPRING, THRTL STOP

(2V0-14333-00-00)

1
Out of stock

57

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

58

CLIP

(2V0-14159-00-00)

1
Out of stock

59

SCREW, PAN HEAD

98517-05030-00

—

$7.92

In stock

60

HOSE

88R-14987-00-00

1
Out of stock

61

HOSE (L700)

90445-05M07-00

1
Out of stock

62

HOSE (L700)

90445-05M07-00

1
Out of stock

63

CAP

2V0-14169-00-00

1
Out of stock

64

PIPE, STARTER CON

(2V0-14988-00-00)

1
Out of stock

65

CAP

895-14169-00-00

—

$4.02

In stock
