1978 Yamaha RD400 (RD400E) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1978 Yamaha RD400 (RD400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

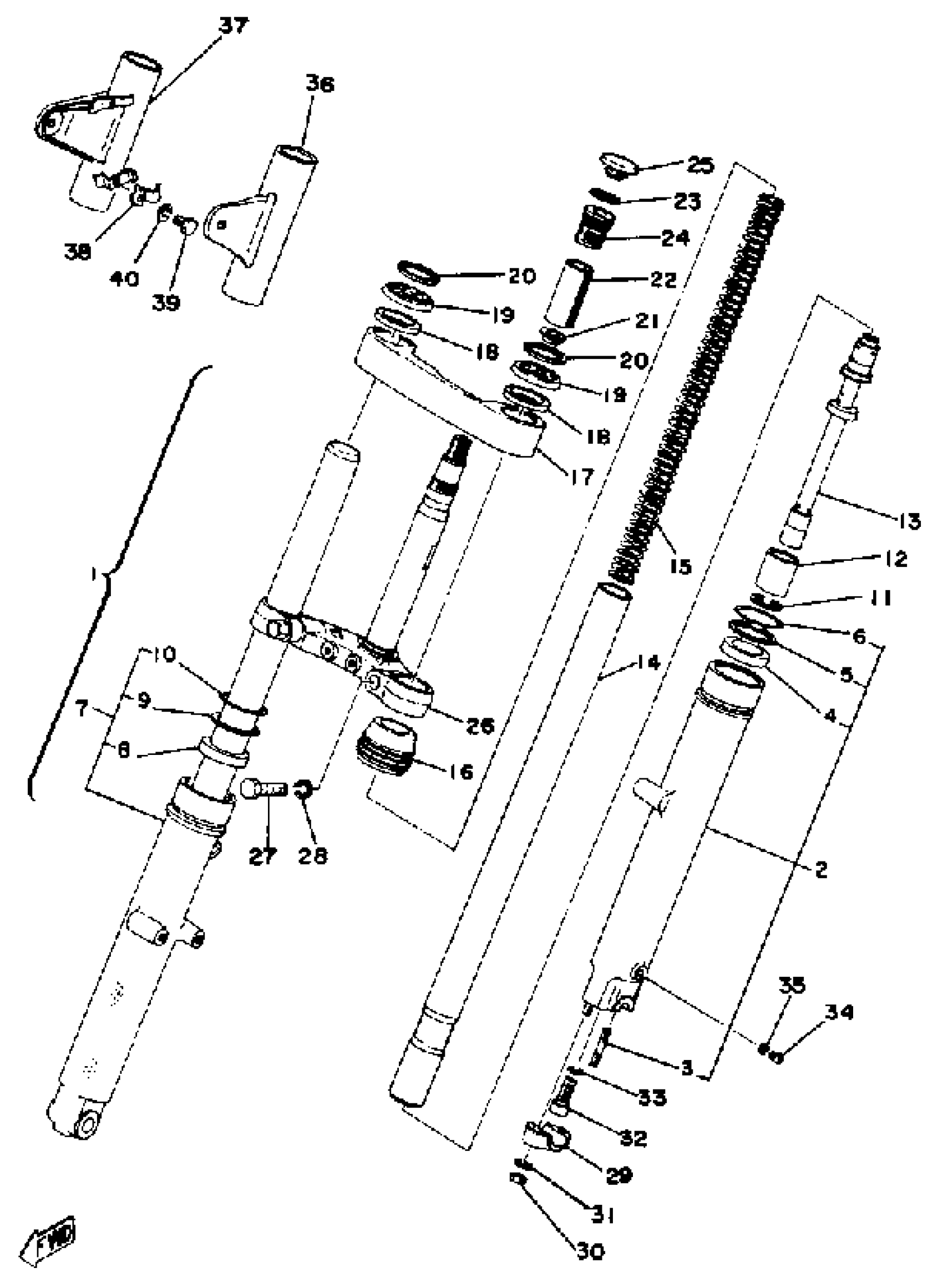

1978 Yamaha RD400 (RD400E) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

INACTIVE PART NUMBER

1A1-23101-00-00

1
Out of stock

2

. INACTIVE PART NUMBER

1A0-23126-01-00

1
Out of stock

3

BOLT, STUD (278)

90116-08261-00

1
Out of stock

4

OIL SEAL

584-23145-50-00

1

$52.72

In stock

5

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

6

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

7

. INACTIVE PART NUMBER

1A0-23136-01-00

1
Out of stock

8

OIL SEAL

584-23145-50-00

1

$52.72

In stock

9

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

10

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

11

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

12

. INACTIVE PART NUMBER

434-23171-00-00

1
Out of stock

13

. INACTIVE PART NUMBER

1A0-23170-01-00

1
Out of stock

14

. INACTIVE PART NUMBER

1A1-23124-00-00

1
Out of stock

15

. SPRING, FRONT FORK (1A0-23141-00)

1A1-23141-00-00

1
Out of stock

16

SEAL, DUST

584-23144-50-00

—

$26.80

In stock

17

. INACTIVE PART NUMBER

1A0-23122-00-00

1
Out of stock

18

. GASKET (LAMP STAY)

291-23163-61-00

1
Out of stock

19

. GUIDE, COVER LOWER

2R8-23116-00-00

1
Out of stock

20

. INACTIVE PART NUMBER

2R8-23115-00-00

1
Out of stock

21

. SEAT, SPRING UPPER

256-23142-60-00

1
Out of stock

22

. INACTIVE PART NUMBER

214-23118-00-00

1
Out of stock

23

RING, CAP BOLT

2F0-23114-00-00

—
Out of stock

24

. BOLT, CAP

1T3-23111-50-00

1
Out of stock

25

CAP

1T3-23168-50-00

—
Out of stock

26

. UNDER BRACKET

1A2-23340-30-33

1
Out of stock

27

. BOLT 1

306-23346-60-00

1
Out of stock

28

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

29

. INACTIVE PART NUMBER

306-23167-60-00

1
Out of stock

30

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

31

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

32

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

33

GASKET

509-23158-L0-00

—

$14.34

In stock

34

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

35

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

36

COVER, UPPER 1

1A0-23121-01-33

1
Out of stock

37

COVER, UPPER 1

1A0-23121-01-33

1
Out of stock

38

STAY, LIGHT GUARD

1A0-23164-00-00

1
Out of stock

39

BOLT (661)

97013-06012-00

—

$4.71

In stock

40

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
