Rear Wheel

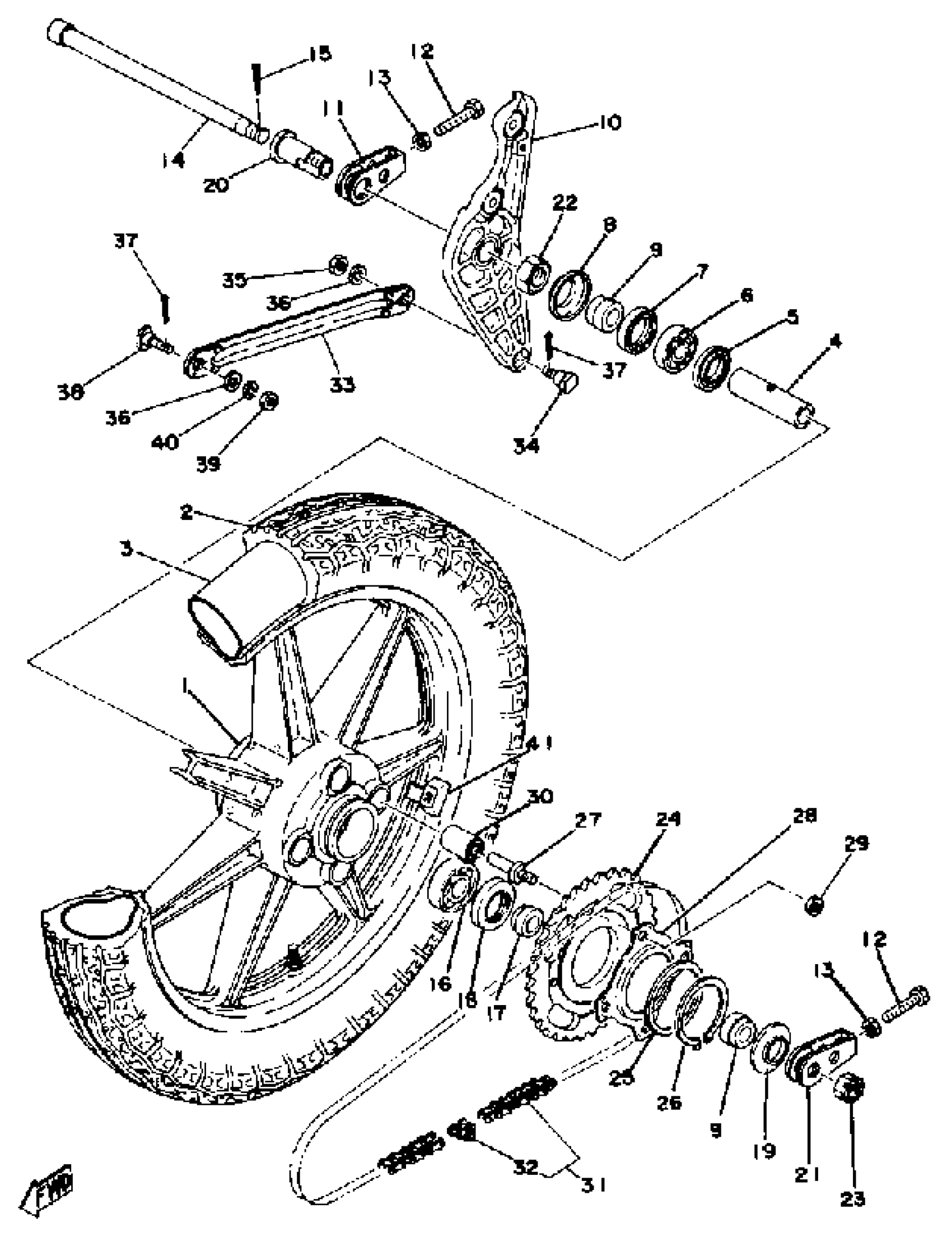

1976 Yamaha RD400 (RD400C) Rear Wheel Diagram
Find the part on the Rear Wheel diagram for your 1976 Yamaha RD400 (RD400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
WHEEL, CAST REAR
(1A1-25338-00-00)
2
YOKO 350S18Y 987
(94135-18380-00)
3
TUBE (2RH)
94232-18113-00
3
TUBE (2RH)
94232-18113-00
4
SPACER
90560-17233-00
8
COVER, HUB DUST
341-25118-00-00
9
COLLAR
90387-17433-00
10
BRACKET, CALIPER
(1A1-25819-00-33)
11
PULLER, CHAIN 2
(1A1-25389-00-00)
14
AXLE,WHEEL
150-25381-01-00
17
COLLAR, WHEEL
1A1-25377-00-00
19
COVER, HUB DUST
1A1-25367-00-00
20
SHAFT, BRKT CALIPER
1A1-25387-00-00
21
PULLER,CHAIN 2
12R-25389-00-00
22
NUT, HEXAGON
90170-22097-00
23
NUT, CASTLE
90171-16007-00
24
SPROCKET, DRIVN 38T
1A1-25438-20-00
24
SPROCKET, DRIVN 36T (1A1-25436-20)
1A3-25436-20-00
25
WASHER, PLATE
90201-66585-00
26
CIRCLIP, S-TYPE
93410-65040-00
27
BOLT
90109-12429-00
28
UNAVAILABLE IN PRICE BOOK
1A1-25412-00-00
30
BUSH, CLUTCH PIN
1A1-25363-00-00
31
530 DS 96L
94580-10096-00
32
UNAVAILABLE IN PRICE BOOK
94658-30011-00
33
BAR, TENSION
(171-25371-00-00)
34
BOLT
90109-08184-00
35
UNAVAILABLE IN PRICE BOOK
90170-08185-00
38
BOLT
90109-08375-00
