1976 Yamaha RD400 (RD400C) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1976 Yamaha RD400 (RD400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

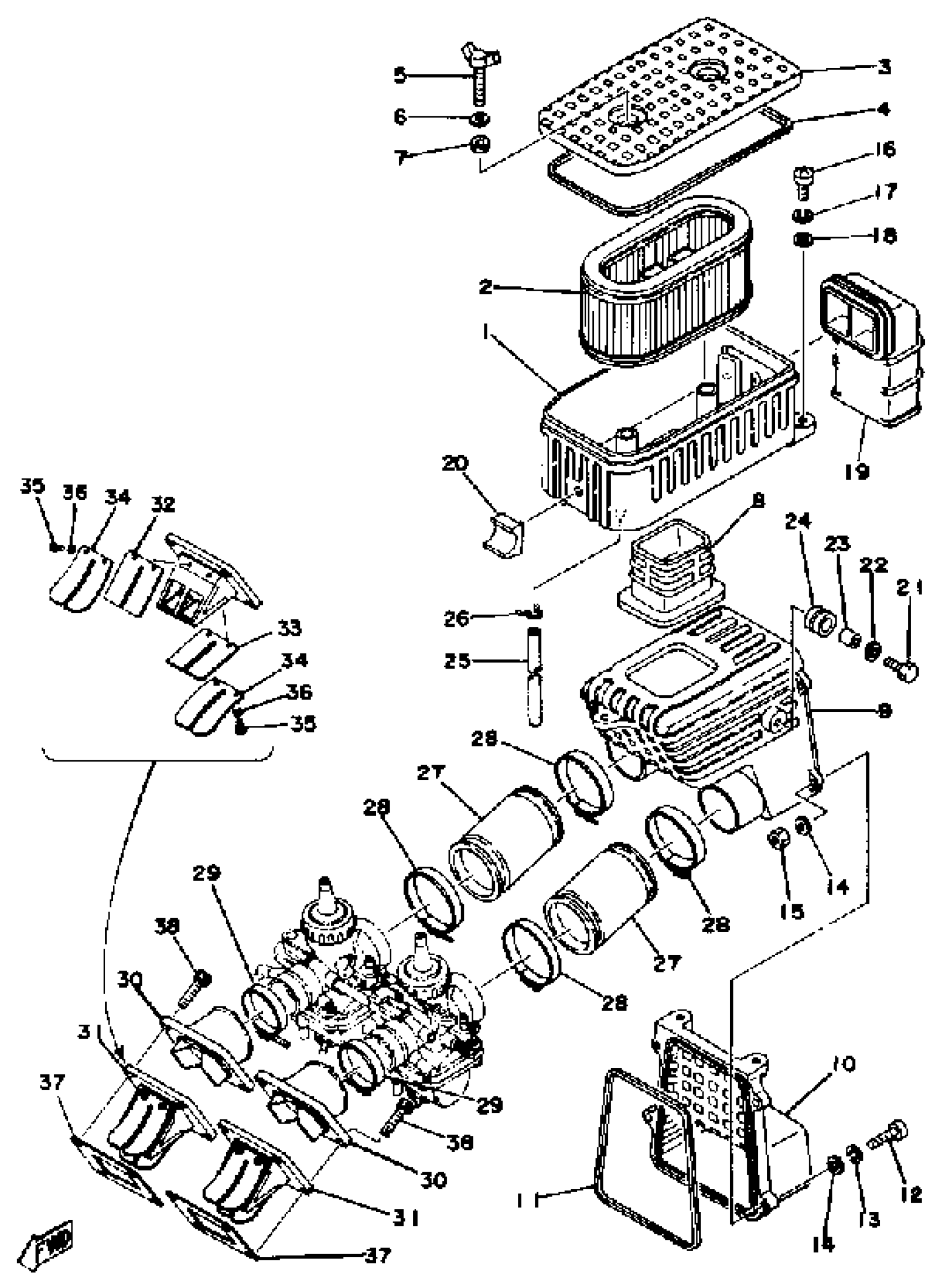

1976 Yamaha RD400 (RD400C) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(1A0-14411-00-00)

1
Out of stock

2

ELEMENT, AIR CLNR

1A0-14451-01-00

1
Out of stock

3

CAP, CLEANER CASE 1

1A0-14412-01-00

1
Out of stock

4

SEAL

51Y-14462-00-00

1

$11.61

In stock

5

BOLT, WING

(90122-06002-00)

1
Out of stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

WASHER, PLATE

90202-05101-00

1
Out of stock

8

PIPE

2R9-14419-00-00

1
Out of stock

9

SILENCER, INTAKE 1

(1A0-14431-00-00)

1
Out of stock

10

SILENCER, INTAKE 2

(1A0-14441-00-00)

1
Out of stock

11

SEAL

51Y-14462-00-00

1

$11.61

In stock

12

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

16

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

19

DUCT

(3J7-14437-00-00)

1
Out of stock

20

GROMMET

(1A0-14435-01-00)

1
Out of stock

21

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

22

WASHER, PLATE (4L0)

90201-062A8-00

—

$6.23

In stock

23

COLLAR

90387-07020-00

—

$6.17

In stock

24

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

25

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

26

CLIP 101235600

90467-08003-00

—

$6.13

In stock

27

JOINT, AIR CLNR 1

1A0-14453-01-00

1
Out of stock

28

CLAMP HOSE 278144550000

90460-49058-00

—
Out of stock

29

CLAMP, HOSE (5H0)

90460-43179-00

—

$16.69

In stock

30

JOINT, CARBURETOR

345-13565-71-00

1
Out of stock

31

REED VALVE ASSY

345-13610-20-00

—

$218.63

In stock

32

. REED, VALVE (401-13613-00)

2R9-13613-00-00

1
Out of stock

33

REED, VALVE

345-13613-70-00

—

$62.56

In stock

34

. STOPPER, REED VALVE

345-13616-70-00

1
Out of stock

35

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

36

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

37

GASKET, VALVE SEAT

87A-13621-00-00

—

$7.97

In stock

38

BOLT,SOCKET

91317-06025-00

—

$2.05

In stock
