1973 Yamaha RD350 (RD350) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1973 Yamaha RD350 (RD350), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

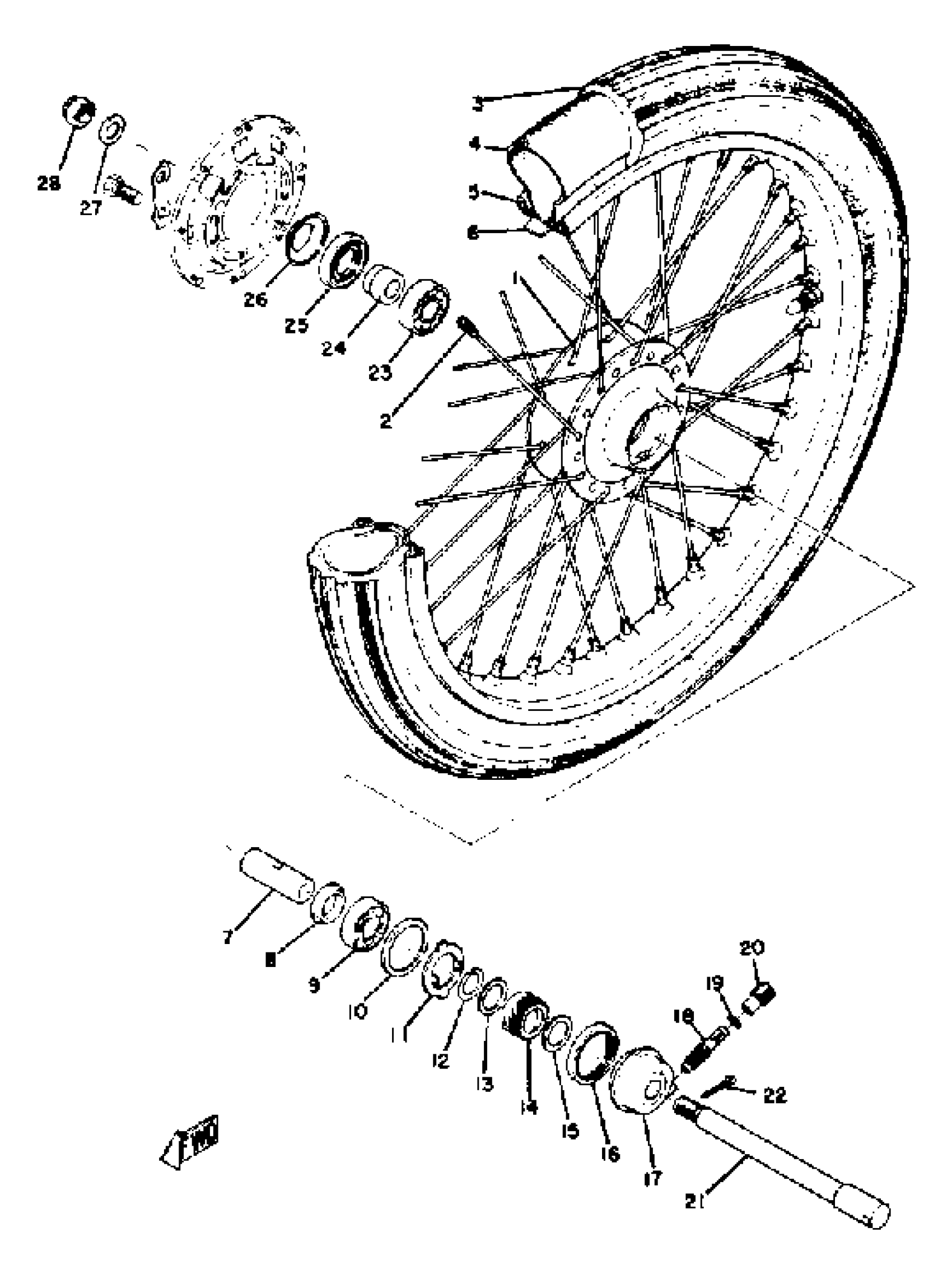

1973 Yamaha RD350 (RD350) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

35-12511-10-00

1
Out of stock

2

SPOKE SET, FRONT

351-25104-00-00

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

35-12519-69-00

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

35-12519-79-00

1
Out of stock

3

UNAVAILABLE IN PRICE BOOK

94-13018-36-30

1
Out of stock

4

TUBE (5H5)

94227-18195-00

1
Out of stock

5

RIM 1.60X18

(94416-18068-00)

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER

90560-17125-00

1
Out of stock

8

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

9

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

10

RETAINER, CLUTCH (371,447)

341-25846-00-00

1
Out of stock

11

CLUTCH, METER (371,447)

341-25149-00-00

1
Out of stock

12

RING, STOP

341-25137-00-00

1
Out of stock

13

WASHER PLATE 341251470000

90201-25286-00

—
Out of stock

14

UNAVAILABLE IN PRICE BOOK

35-12513-50-00

1
Out of stock

15

WASHER PLATE 152172260000

90201-25490-00

—
Out of stock

16

OIL SEAL (45X56X6)

93105-45017-00

—
Out of stock

17

GEAR UNIT ASSY

4TR-25190-20-00

—

$110.32

In stock

18

GEAR, METER

351-25138-00-00

1
Out of stock

19

SHIM, ROD

102-18416-00-00

1
Out of stock

20

BUSH

306-25136-00-00

1
Out of stock

21

AXLE, WHEEL

351-25181-10-00

1
Out of stock

22

PIN, COTTER

91490-30030-00

—

$7.15

In stock

23

BRG,R-B 6303 47MM 115G NK

93306-30302-00

—

$39.88

In stock

24

COLLAR

90387-17433-00

1
Out of stock

25

OIL SEAL (28X47X7-102)

93102-28022-00

—

$12.63

In stock

26

COVER, HUB DUST

341-25118-00-00

1
Out of stock

27

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

28

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock
