1973 Yamaha RD350 (RD350) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1973 Yamaha RD350 (RD350), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

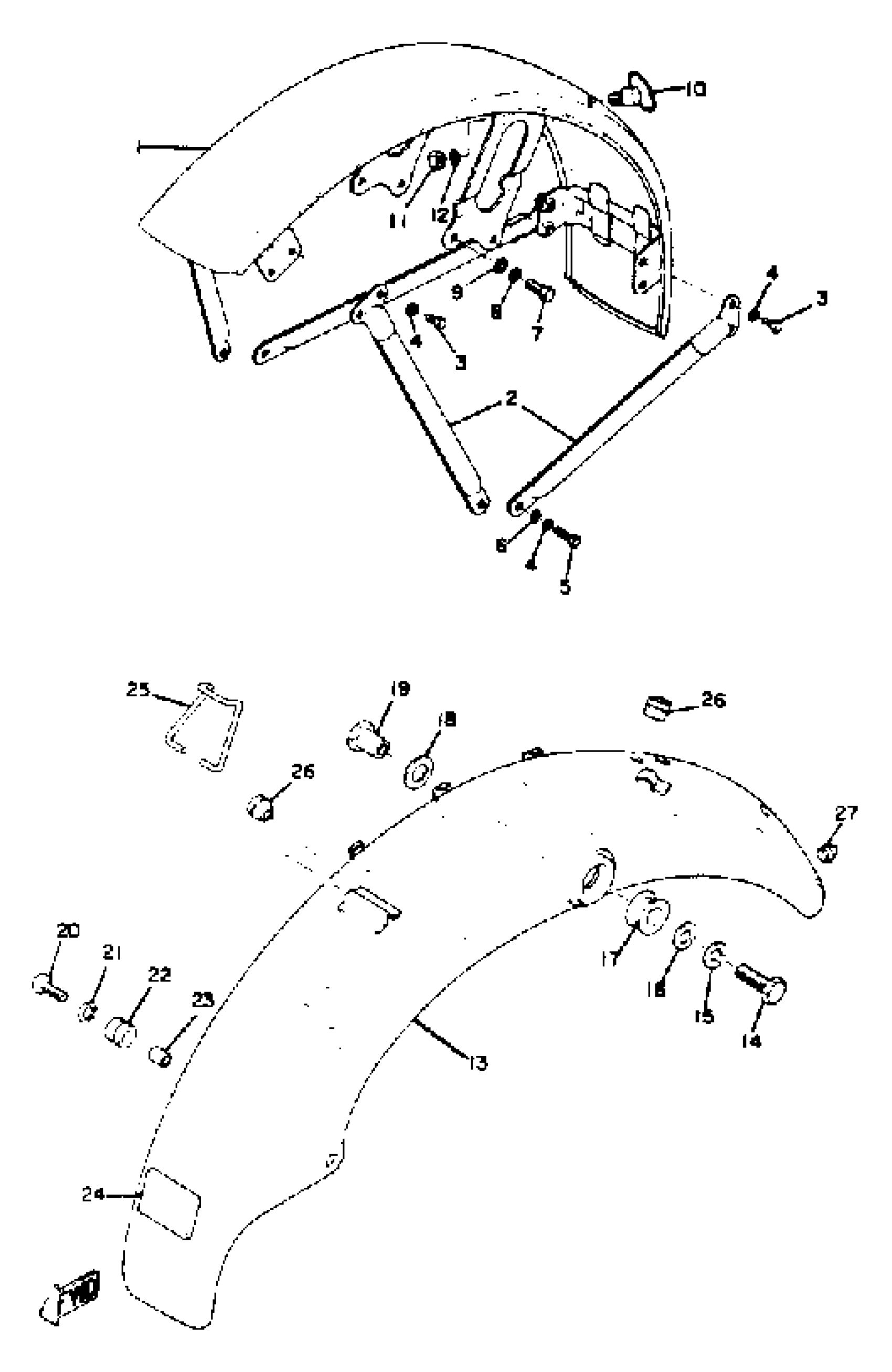

1973 Yamaha RD350 (RD350) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

(351-21510-00-93)

1
Out of stock

2

STAY, FENDER 1

(351-21513-00-00)

1
Out of stock

3

BOLT (661)

97013-06012-00

1

$4.71

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

9

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

10

HOLDER, CABLE

(174-21518-00-00)

1
Out of stock

11

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

FENDER, REAR

(351-21610-00-93)

1
Out of stock

14

BOLT(N02)

97070-10035-00

1

$11.38

In stock

15

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

16

—

$3.00

In stock

17

DAMPER, REAR

168-21639-00-00

—
Out of stock

18

WASHER, PLATE

90201-15239-00

1
Out of stock

19

NUT, SPEC''L SHAPE

90179-10123-00

1
Out of stock

20

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

21

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

22

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

23

COLLAR

90387-07020-00

—

$6.17

In stock

24

UNAVAILABLE IN PRICE BOOK

21-42126-80-00

1
Out of stock

25

UNAVAILABLE IN PRICE BOOK

27-82133-60-00

1
Out of stock

26

GROMMET 152845180000

90480-12013-00

—
Out of stock

27

DAMPER 2

5A8-21639-00-00

—

$8.17

In stock
