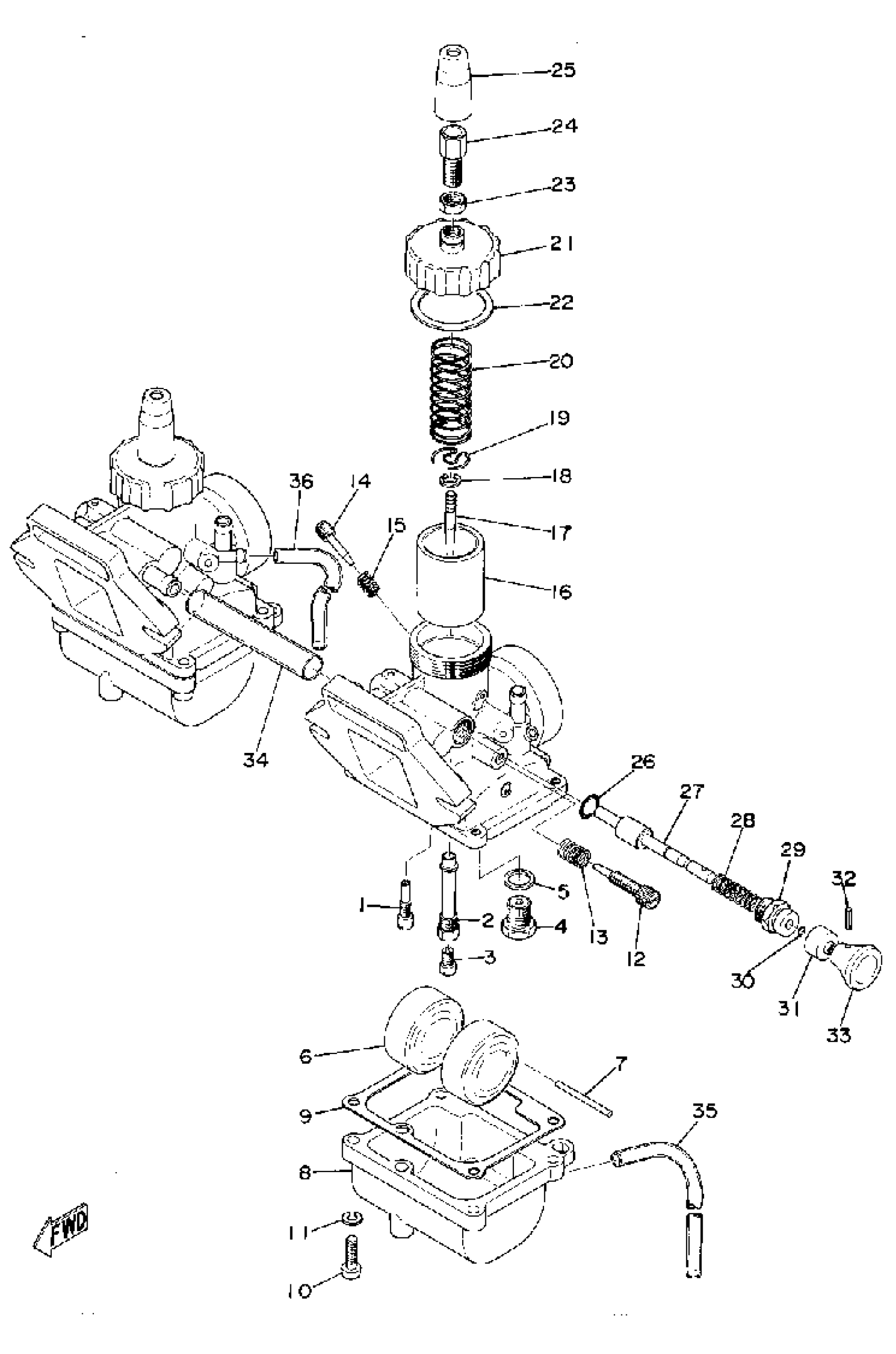

Find the part on the Carburetor diagram for your 1974 Yamaha RD200 (RD200A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha RD200 (RD200A) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JET, PILOT #42

(367-14342-21-00)

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(397-14301-63-00)

1
Out of stock

2

. NOZZLE, MAIN

396-14341-00-00

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(397-14302-63-00)

1
Out of stock

3

. JET, MAIN #88

396-14343-44-00

1
Out of stock

3

JET, MAIN #92

(396-14343-46-00)

1
Out of stock

3

. JET, MAIN #94

396-14343-47-00

1
Out of stock

3

JET, MAIN #96

(396-14343-48-00)

1
Out of stock

3

. JET, MAIN #100

396-14343-50-00

1
Out of stock

4

. NEEDLE VALVE ASSEMBLY (396-14390-25-00)

1J2-14390-25-00

1
Out of stock

5

WASHER, VALVE SEAT

367-14195-00-00

1

$5.52

In stock

6

FLOAT

367-14385-00-00

—
Out of stock

7

PIN, FLOAT

367-14386-00-00

1

$5.32

In stock

8

. BODY, FLOAT CHMBR 1

397-14181-14-00

1
Out of stock

9

. GASKET, FLOAT CHMBR

389-14384-00-00

1
Out of stock

10

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

12

. SCREW, PILOT ADJUSTING

396-14211-00-00

1
Out of stock

13

. SPRING, PILOT ADJUSTING

389-14212-00-00

1
Out of stock

14

. SCREW, AIR ADJUSTING

396-14323-00-00

1
Out of stock

15

. SPRING, THRTL STOP

389-14333-00-00

1
Out of stock

16

VALVE, THROTTLE 1

(397-14312-20-00)

1
Out of stock

16

VALVE, THROTTLE 2

(397-14313-20-00)

1
Out of stock

17

NEEDLE

(397-14336-00-00)

1
Out of stock

18

. CLIP

389-14137-00-00

1

$2.90

In stock

19

. SEAT, SPRING

396-14136-02-00

1
Out of stock

20

SPRING, THRTL VALVE

(396-14331-00-00)

1
Out of stock

21

CAP, MIXING CHAMBER

(389-14168-00-33)

1
Out of stock

22

GASKET

(389-14126-00-00)

1
Out of stock

23

NUT, CABLE ADJUSTING

85L-14161-00-00

1
Out of stock

24

SCREW, CABLE ADJUSTING

(396-14124-00-00)

1
Out of stock

25

. CAP

367-14169-00-00

1
Out of stock

26

O-RING

(389-14147-00-00)

1
Out of stock

27

PLUNGER, STARTER

(396-14371-00-00)

1
Out of stock

28

SPRING, PLUNGER

(389-14335-00-00)

1
Out of stock

29

CAP, PLUNGER

(396-14374-00-00)

1
Out of stock

30

CLIP, PLUNGER

(389-14138-00-00)

1
Out of stock

31

COVER, PLUNGER CAP

(389-14373-00-00)

1
Out of stock

32

PIN, SPRING

91690-20008-00

—

$7.77

In stock

33

. KNOB, STARTER

389-14261-01-00

1
Out of stock

34

PIPE

(397-14349-00-00)

1
Out of stock

35

PIPE

(389-14396-00-00)

1
Out of stock

36

PIPE 1

(396-14348-00-00)

1
Out of stock
