1976 Yamaha RD125 (RD125C) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1976 Yamaha RD125 (RD125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

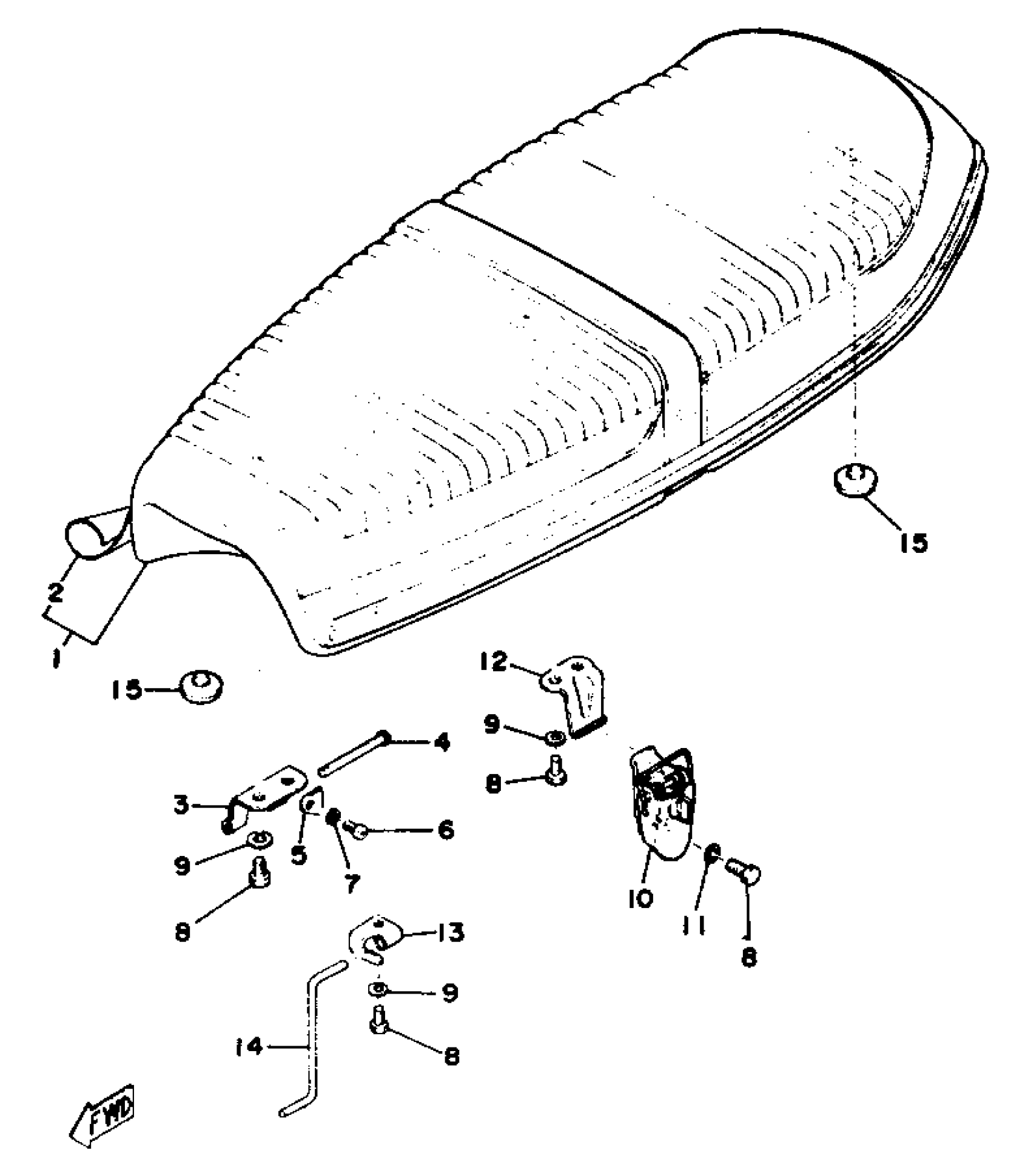

1976 Yamaha RD125 (RD125C) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

(398-24730-02-00)

1
Out of stock

2

COVER, DOUBLE SEAT

(398-24731-00-00)

1
Out of stock

3

HINGE, SEAT

389-24726-00-33

1
Out of stock

4

PIN, CLEVIS

91701-05055-00

1
Out of stock

5

COVER, TAIL

389-24756-00-00

1
Out of stock

6

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

BOLT (661)

97013-06012-00

1

$4.71

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

SEAT LOCK ASSEMBLY

526-24705-00-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

BRACKET, SEAT

278-24728-00-00

1
Out of stock

13

BRACKET, SEAT

(278-24748-00-00)

1
Out of stock

14

STOPPER

(337-24768-00-00)

1
Out of stock

15

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock
