1976 Yamaha RD125 (RD125C) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1976 Yamaha RD125 (RD125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

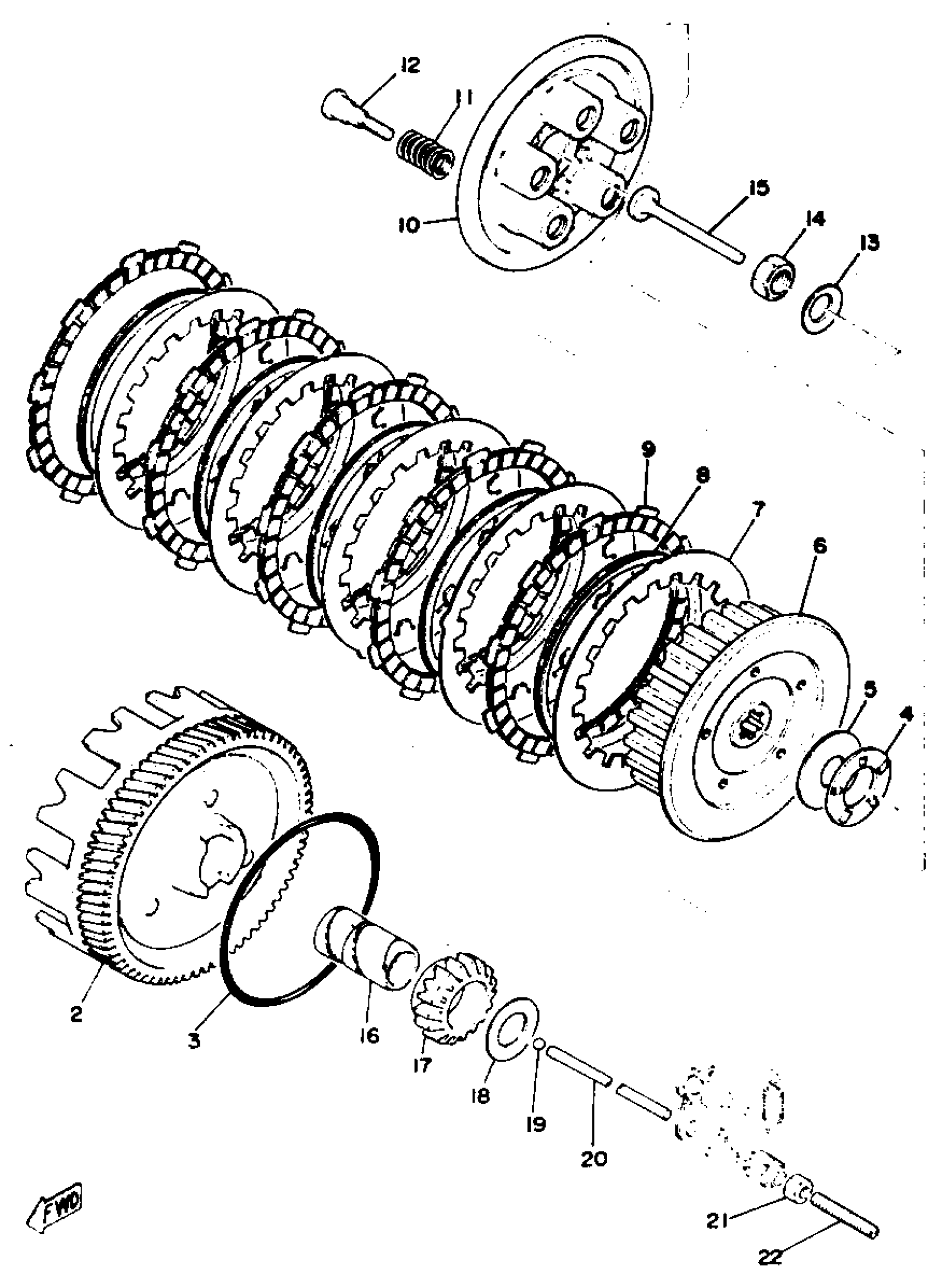

1976 Yamaha RD125 (RD125C) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH ASSEMBLY

(307-16301-00-00)

1
Out of stock

2

PRI DRVN GEAR

(307-16150-00-00)

1
Out of stock

3

RING, FRICTION

132-16369-00-00

1

$8.78

In stock

4

. BEARING, FLAT #41

93341-22302-00

1
Out of stock

5

PLATE, THRUST

131-16154-00-00

—

$7.15

In stock

6

. BOSS, CLUTCH

132-16371-02-00

1
Out of stock

7

PLATE, CLUTCH 1

336-16324-10-00

1

$17.51

In stock

8

. RING, CUSHION

307-16367-00-00

1
Out of stock

9

PLATE, FRICTION

307-16321-09-00

1
Out of stock

10

PLATE, PRESSURE

132-16351-00-00

1

$50.51

In stock

11

1

$6.17

In stock

12

SCREW, SPECL SHAPE

(90149-05147-00)

1
Out of stock

13

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

14

NUT, HEXAGON 1371637700

90170-12060-00

1

$8.29

In stock

15

ROD,PUSH (1)

137-16356-00-00

1

$28.05

In stock

16

SPACER

(90560-17158-00)

1
Out of stock

17

GEAR, KICK PINION

(132-15631-00-00)

1
Out of stock

18

PLATE, THRUST

122-16164-00-00

—

$7.08

In stock

19

BALL

93501-04011-00

—
Out of stock

20

ROD, PUSH 2

307-16357-00-00

1
Out of stock

21

NUT(650)

95380-06700-00

—

$6.17

In stock

22

BOLT SET 241163430000

90113-06013-00

—
Out of stock
