1976 Yamaha RD125 (RD125C) Carburetor Diagram

← All diagrams

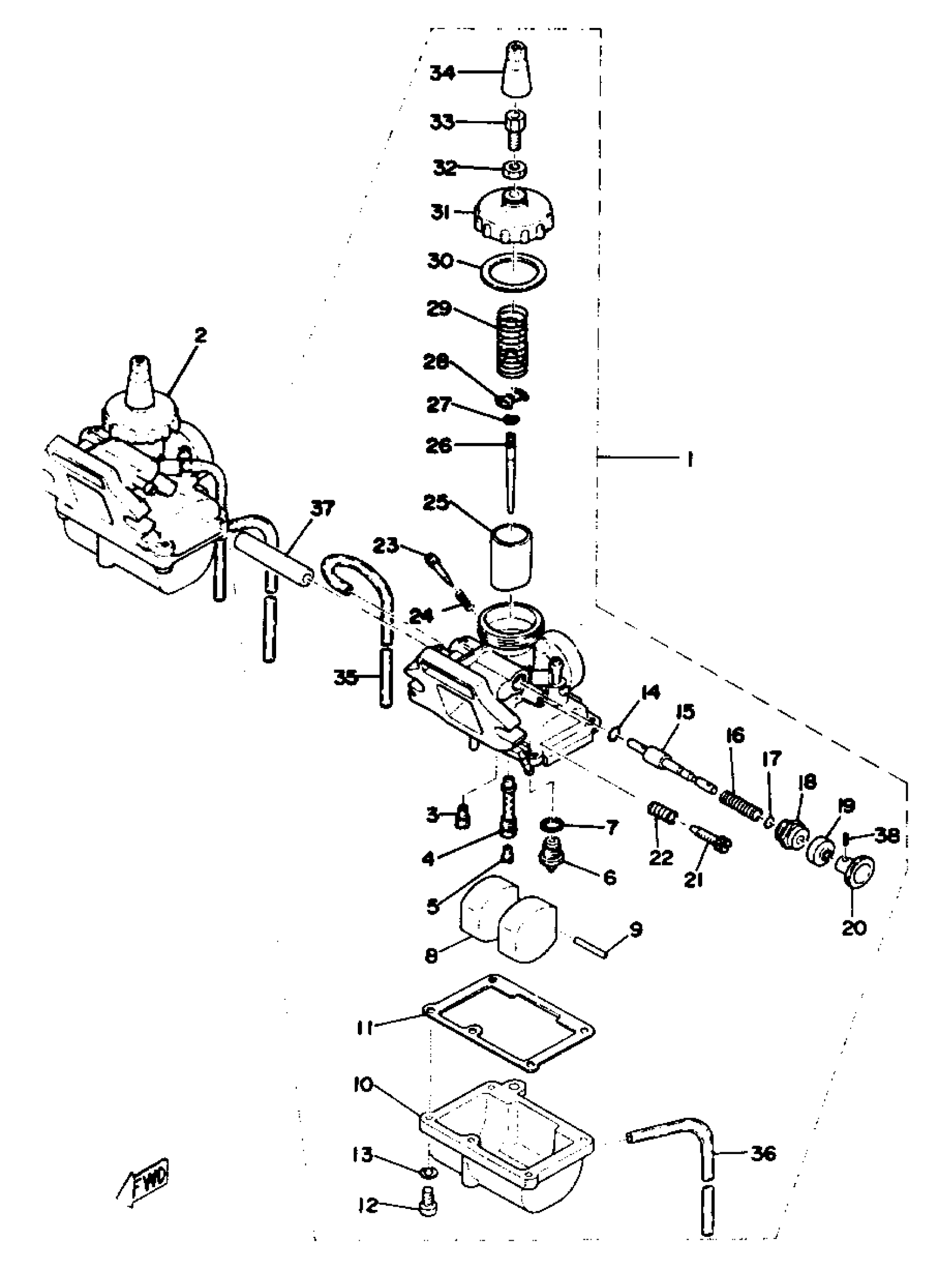

Find the part on the Carburetor diagram for your 1976 Yamaha RD125 (RD125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha RD125 (RD125C) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(507-14301-60-00)

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(507-14302-60-00)

1
Out of stock

3

JET, PILOT #44

(367-14342-22-00)

1
Out of stock

4

. NOZZLE, MAIN

396-14341-00-00

1
Out of stock

5

JET, MAIN #92

(396-14343-46-00)

1
Out of stock

6

. NEEDLE VALVE ASSEMBLY

396-14390-16-00

1
Out of stock

7

WASHER, VALVE SEAT

367-14195-00-00

1

$5.52

In stock

8

FLOAT

367-14385-00-00

—
Out of stock

9

PIN, FLOAT

367-14386-00-00

1

$5.32

In stock

10

. BODY, FLOAT CHMBR 1

397-14181-14-00

1
Out of stock

10

BODY, FLOAT CHMBR 2

(397-14183-00-33)

1
Out of stock

11

. GASKET, FLOAT CHMBR

389-14384-00-00

1
Out of stock

12

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

14

O-RING

(389-14147-00-00)

1
Out of stock

15

PLUNGER, STARTER

(396-14371-00-00)

1
Out of stock

16

SPRING, PLUNGER

(389-14335-00-00)

1
Out of stock

17

CLIP, PLUNGER

(389-14138-00-00)

1
Out of stock

18

CAP, PLUNGER

(396-14374-00-00)

1
Out of stock

19

COVER, PLUNGER CAP

(389-14373-00-00)

1
Out of stock

20

. KNOB, STARTER

389-14261-01-00

1
Out of stock

21

. SCREW, PILOT ADJUSTING

396-14211-00-00

1
Out of stock

22

. SPRING, PILOT ADJUSTING

389-14212-00-00

1
Out of stock

23

. SCREW, AIR ADJUSTING

396-14323-00-00

1
Out of stock

24

. SPRING, THRTL STOP

389-14333-00-00

1
Out of stock

25

VALVE, THROTTLE 1

(396-14312-20-00)

1
Out of stock

25

VALVE, THROTTLE 2

(396-14313-20-00)

1
Out of stock

26

NEEDLE

(396-14336-00-00)

1
Out of stock

27

. CLIP

389-14137-00-00

1

$2.90

In stock

28

. SEAT, SPRING

396-14136-02-00

1
Out of stock

29

SPRING, THRTL VALVE

(396-14331-00-00)

1
Out of stock

30

GASKET

(389-14126-00-00)

1
Out of stock

31

CAP, MIXING CHAMBER

(389-14168-00-33)

1
Out of stock

32

NUT, CABLE ADJUSTING

85L-14161-00-00

1
Out of stock

33

SCREW, CABLE ADJUSTING

(396-14124-00-00)

1
Out of stock

34

. CAP

367-14169-00-00

1
Out of stock

35

PIPE 1

(396-14348-00-00)

1
Out of stock

36

PIPE

(389-14396-00-00)

1
Out of stock

37

PIPE

(389-14349-00-00)

1
Out of stock

38

PIN, SPRING

91690-20008-00

—

$7.77

In stock
