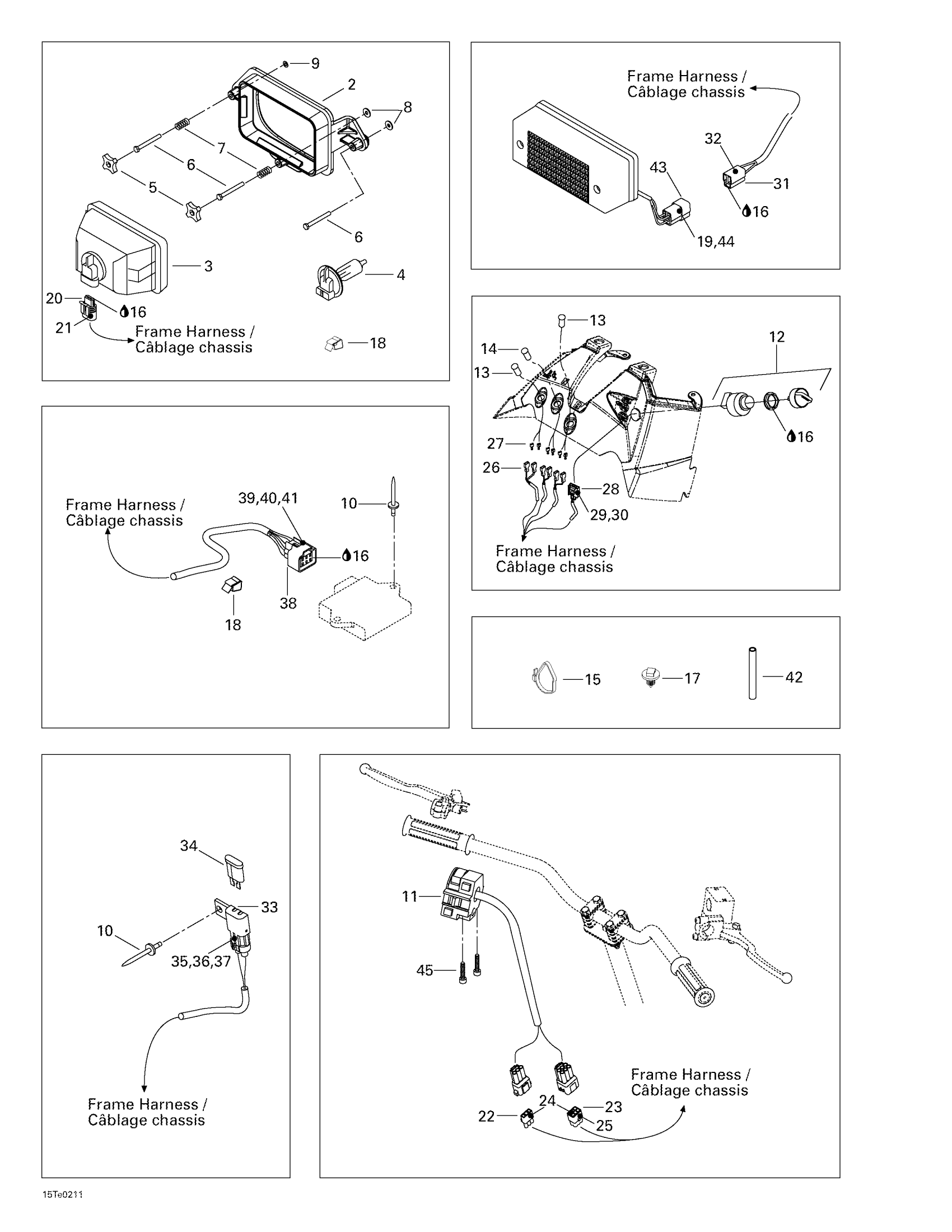

Can-Am Rally, 2003 Main Harness And Electrical Accessories Diagram

#

Description
Price

1

Harness Ass'y | Includes 1 - 4.

710000233

Unavailable

2

RH Headlight Support

710000236

Unavailable

2

LH HEADLIGHT SUPPORT - Call your local BRP dealership

710000277

Unavailable

3

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

4

BULB - Call your local BRP dealership

710000176

Unavailable

5

Handle

572106600

$9.03

6

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

7

SPRING - Call your local BRP dealership

710000285

Unavailable

8

Flat Washer 4 mm, Stainless

234042600

$0.92

9

Flat Washer 4 mm

234040600

$0.46

10

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

11

Handle

710000242

Unavailable

12

Switch_Ignition

710007867

$81.31

12

Key, Groove on Left Side

715900019

$21.42

13

PILOT LAMP - Call your local BRP dealership

710000239

Unavailable

14

PILOT LAMP, GREEN - Call your local BRP dealership

710000240

Unavailable

15

Tie-Rap 180 mm

414115200

$0.09

16

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

17

Mount Dart

293730040

$0.86

18

Clip

414227300

$1.40

19

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

20

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

21

Female Terminal

278001114

$2.55

22

Female Terminal Housing, 3 Circuits

710000275

Unavailable

23

Female Housing, 6 Circuits

710000081

$7.88

24

Female Terminal

409012100

$3.73

25

Seal

409012300

$4.25

26

Rubber Envelope Terminal

710000115

Unavailable

27

FEMALE TERMINAL - Call your local BRP dealership

710000114

Unavailable

28

Female Terminal Housing, 4 Circuits

710000272

$9.84

29

Female Terminal

710000274

$8.72

30

Lock, 4 Circuits

710000273

$8.72

31

Female Housing

409204300

Unavailable

32

FEMALE TERMINAL - Call your local BRP dealership

409009500

Unavailable

33

Fuse Holder

278001325

$8.31

34

Fuse, 15 Amperes

278000343

$2.72

35

Cushion

278000805

$3.12

36

Fuse Holder Cap

278001326

$5.85

37

Female Terminal

710000113

$5.85

38

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000190

Unavailable

39

LOCK, 6 CIRCUITS - Call your local BRP dealership

710000191

Unavailable

40

WIRE SEAL - Call your local BRP dealership

710000189

Unavailable

41

FEMALE TERMINAL - Call your local BRP dealership

278001638

Unavailable

42

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

219704446

Unavailable

42

Tubing 6 Mm 3000Mm Long

219704425

$12.75

42

Was 409901700 Tubing (9 mm)

219704399

$77.58

42

Was 409901800 Tubing (13 mm)

219704400

$9.40

42

Tubing 16 Mm 1000Mm Long

219704408

$6.23

43

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

44

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

45

SOCKET SCREW M5 X 35 - Call your local BRP dealership

205453546

Unavailable
