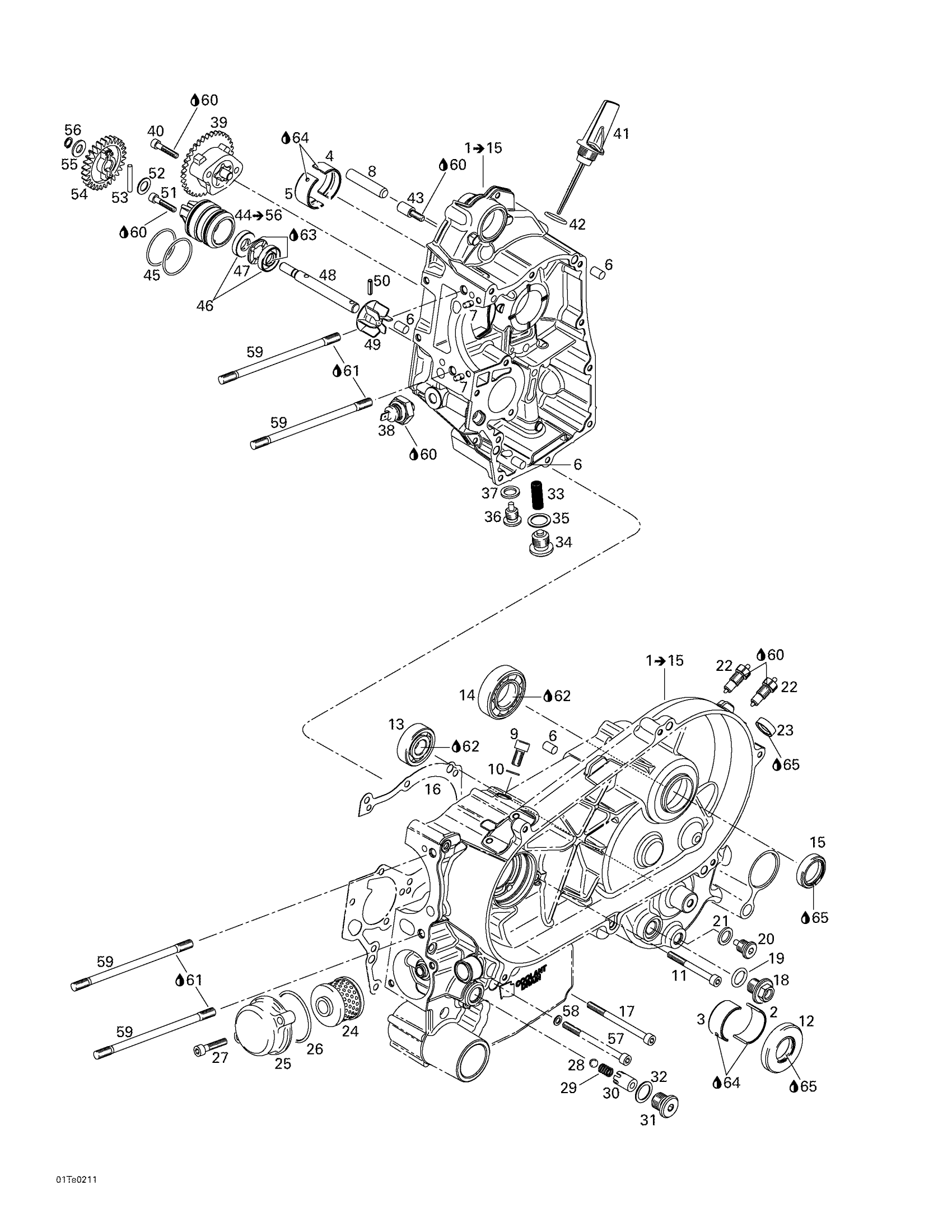

Can-Am Rally, 2003 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 - 15.

711296691

Unavailable

2

Plain Bearing

711233710

Unavailable

3

Plain Bearing

711233712

Unavailable

4

Plain Bearing

711233715

Unavailable

5

Plain Bearing

711233717

Unavailable

6

Center Pin 8 X 12

420632010

$3.07

7

Drive Pin 5 X 10

420929650

$1.34

8

Location Pin 10 M6x50

420229302

$3.01

9

Socket Head Screw M8 X 16

205081660

Unavailable

10

Sealing Ring

420950141

$1.64

11

ALLEN SCREW M6 X 60 - Call your local BRP dealership

420240373

Unavailable

12

Oil Seal

420831178

$32.81

13

Ball Bearing

711232293

Unavailable

14

Ball Bearing

711232768

Unavailable

15

Oil Seal

711250950

Unavailable

16

Gasket

711650745

Unavailable

17

ALLEN SCREW, M6 X 80 - Call your local BRP dealership

420241503

Unavailable

18

Plug Screw M14 X 1.5

420241662

$13.51

19

O-Ring

420650350

$8.81

20

Plug screw

420841924

$13.18

21

Copper Washer

420250640

$0.81

22

Position Switch

420241856

$34.30

23

Oil Seal

711250992

Unavailable

24

OIL FILTER - Call your local BRP dealership

715500367

Unavailable

25

Oil Filter Cover

711211500

Unavailable

26

O-Ring

420430920

$2.22

27

Hex. Flange Screw M6 x 30

711241941

Unavailable

28

Ball 8.5 mm

420432680

$5.10

29

Compression Spring

711239280

Unavailable

30

PRESSURE RETAINER VALVE HOUSING - Call your local BRP dealership

420256483

Unavailable

31

Plug Screw M16 X 1.5

420240234

$13.18

32

O-Ring

420430622

$3.61

33

Oil Sieve

711256490

Unavailable

34

Plug Screw M16 x 1.5

711240235

Unavailable

35

O-Ring

420430622

$3.61

36

Magnetic Drain Plug M12 X 1.5

420241780

$16.39

37

Copper Washer

420250640

$0.81

38

OIL PRESSURE SWITCH - Call your local BRP dealership

711956166

Unavailable

39

Oil Pump Ass'y

711295630

Unavailable

40

Taptite Screw

711241275

Unavailable

41

Oil Dipstick

711256465

Unavailable

42

O-Ring

420230890

$4.41

43

Bearing Screw M6

711240940

Unavailable

44

WATER PUMP ASS'Y - Call your local BRP dealership

420293419

Unavailable

45

O-Ring

711430900

Unavailable

46

Oil Seal

420230195

$12.65

47

Distance Shim

711260710

Unavailable

48

Water Pump Shaft

711220355

Unavailable

49

Water Impeller

711222482

Unavailable

50

Spring Pin

420229280

$4.91

51

Taptite Screw

711241275

Unavailable

52

Thrust Washer

420827590

$3.75

53

Needle Pin

420232431

$3.67

54

Water Pump Gear

711634430

Unavailable

55

Flat Washer

420827405

$1.61

56

Retaining Ring

420245570

$6.16

57

ALLEN SCREW, M6 X 80 - Call your local BRP dealership

420241503

Unavailable

58

Seal Washer

420230415

$1.72

59

Stud

711640240

Unavailable

60

Loctite 243, 10 ml

293800060

$20.77

61

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

62

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

63

Dow Corning 111, 150 g

413707000

$57.82

64

Molykote G-N, 50 g

420297433

$22.72

65

Grease, Super Lube

293550030

$24.67
