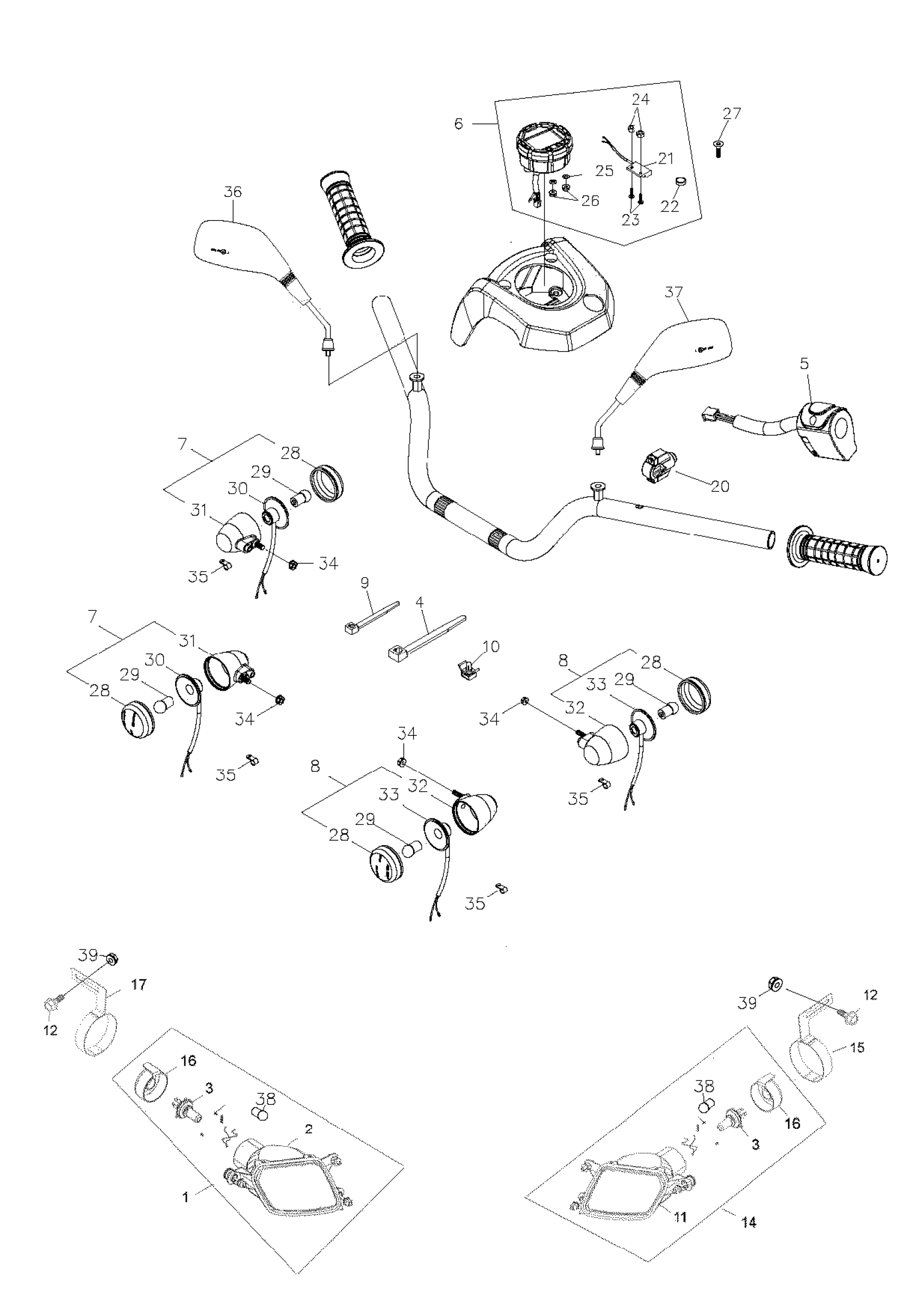

Can-Am Rally 175, 2007 Electrical Accessories Europe Diagram

#

Description
Price

1

RH front Light Ass'y

A3310017900A

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

BULB - Call your local BRP dealership

A34901179000

$26.12

4

Tie-Rap 180 mm

414115200

$0.09

5

LH SWITCH - Call your local BRP dealership

A3520017900A

$85.35

6

Speedometer

A37200179000

Unavailable

7

RH Turn Signal Light

A3340015900A

Unavailable

8

LH Turn Signal Light

A3345015900A

Unavailable

9

Tie-Rap 180 mm

414115200

$0.09

10

Mount Dart

293730040

$0.86

11

Not Available As Spare Part - Friction Washer

Unavailable

12

HEX.WASHER LADDER BOLT M6 X 16 - Call your local BRP dealership

A901120601610

$5.29

14

LH front Light Ass'y

A3320017900A

Unavailable

15

LH HEAD LIGHT BRACKET - Call your local BRP dealership

A33154179000

$18.43

16

Lamp Rubber

A33109179000

Unavailable

17

RH Head Light Bracket

A33155179000

Unavailable

20

SWITCH - Call your local BRP dealership

A35115179000

$21.51

21

Sensor

A37218169000

$14.23

22

Magnet

A37217169000

Unavailable

23

Phillips Screw

A9350003010

Unavailable

24

NUT HEX. - Call your local BRP dealership

A9400103000

$0.62

25

PLAIN WASHER - Call your local BRP dealership

A941010615010

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

27

PHILLIPS SCREW M6 X 15 - Call your local BRP dealership

A9370106015G

$2.89

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Bulb

A3490511800A

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

PHILLIPS SCREW M6 X 12 - Call your local BRP dealership

A9370106012G

$2.89

35

Clip

A90667179000

Unavailable

36

RH MIRROR - Call your local BRP dealership

A88120145000

$23.05

37

LH MIRROR - Call your local BRP dealership

A88110145000

$23.05

38

Bulb

A34909179000

Unavailable

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
