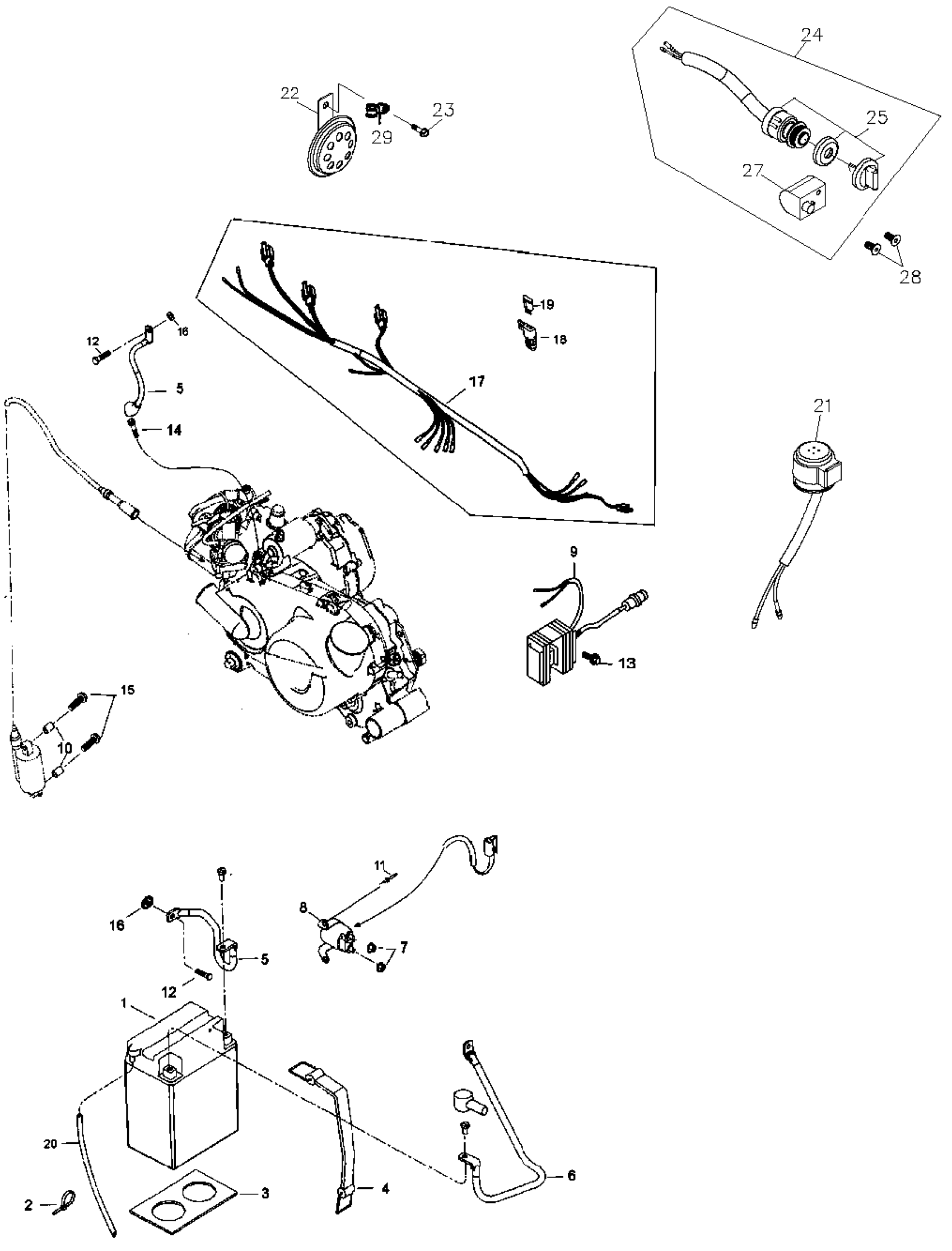

Can-Am Rally 175, 2007 Battery And Electrical Accessories Europe Diagram

#

Description
Price

1

Battery, 13 Amperes

715000194

Unavailable

2

Tie-Rap 180 mm

414115200

$0.09

3

RUBBER PROTECTOR - Call your local BRP dealership

710000241

$6.89

4

Battery Strap

515176044

$14.27

5

Ground Cable

A32103179000

Unavailable

6

POSITIVE CABLE - Call your local BRP dealership

A32101179000

$16.45

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Starter Relay

515176011

$51.97

9

VOLTAGE REGULATOR - Call your local BRP dealership

A31600179000

$184.58

10

Spacer

A30512179000

Unavailable

11

POP RIVET - Call your local BRP dealership

A90662118000

$3.82

12

Socket Screw M6 X 15

A9200306015

Unavailable

13

Hexagonal Head Screw

210262050

$1.74

14

Socket Head Screw M6 X 20

205062044

$1.07

15

SOCKET SCREW M6 X 35 - Call your local BRP dealership

A9200306035

$5.29

16

Serrated Lock Washer M6

A941150611006

Unavailable

17

Harness Ass'y

A3210017900A

Unavailable

18

FUSE HOLDER - Call your local BRP dealership

A98201179000

$10.74

19

Fuse, 15 Amperes

278000343

$2.72

20

Not Available As Spare Part - Friction Washer

Unavailable

21

RELAY - Call your local BRP dealership

A3830110700C

$26.89

22

Horn

A38110197001

Unavailable

23

Screw-hex.flange

A960000601010G

Unavailable

24

Key Set

A35010179000

Unavailable

25

IGNITION SWITCH - Call your local BRP dealership

A3510017900A

$30.74

27

Steering Handle Lock

A53600197000

Unavailable

28

Flat Head Phillips Bolt

A9390206012

Unavailable

29

Clamper

A1135112000A

Unavailable
