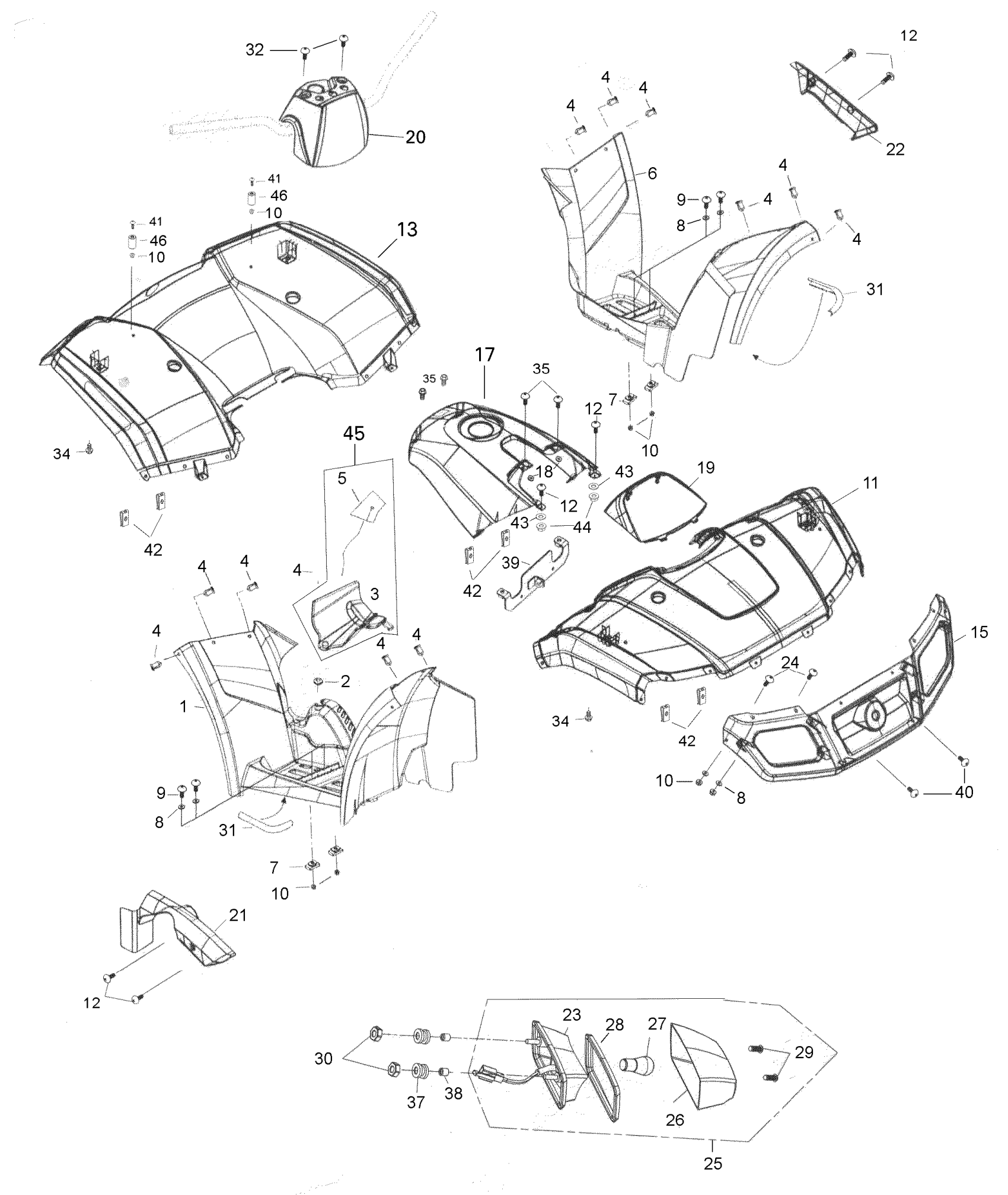

Can-Am Rally 175, 2007 Body And Accessories Diagram

#

Description
Price

1

RH Footboard, Black

A64312179000

Unavailable

2

Oval Washer

705005156

$4.85

3

CHAIN COVER - Call your local BRP dealership

705000870

$11.06

4

Tuflok Plastic Rivet

293150230

$1.21

5

Reflective Sheet

705000563

Unavailable

6

LH Footboard, Black

A64313179000

Unavailable

7

Rubber Stopper

705000407

Unavailable

8

Washer M6

250200029

$1.83

9

PAN HEAD SCREW PHILLIPS M6 X 32 - Call your local BRP dealership

A9380006032k

Unavailable

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Front Fender, Red

A64301179000RD

Unavailable

11

Front Fender, Yellow

A64301179000YL

Unavailable

12

PAN HEAD SCREW PHILLIPS M6 X 25 - Call your local BRP dealership

A9370106025k

Unavailable

13

REAR FENDER, RED - Call your local BRP dealership

A83400179000RD

$115.35

13

Rear Fender, Yellow

A83400179000YL

Unavailable

15

Front Fascia, Red

A64321179000RD

Unavailable

15

Front Fascia, Yellow

A64321179000YL

Unavailable

16

Flat Washer

224060201

$1.15

17

Dash Board, Red

A64501179001RD

Unavailable

17

DASH BOARD, YELLOW - Call your local BRP dealership

A64501179001YL

$33.05

18

Oval Washer

705005156

$4.85

19

CONSOLE COVER, RED - Call your local BRP dealership

A64502179000RD

$13.82

19

CONSOLE COVER, YELLOW - Call your local BRP dealership

A64502179000YL

$13.05

20

Steering Cover

A64211179000

Unavailable

21

RH PANEL - Call your local BRP dealership

A83505179000

$54.58

22

LH PANEL - Call your local BRP dealership

A83506179000

$54.58

23

Not Available As Spare Part - Friction Washer

Unavailable

24

PHILLIPS SCREW M6 X 18 - Call your local BRP dealership

A9370106018KL

$5.29

25

Tail Light Housing | Includes 25 To 29

A33700179000

Unavailable

26

TAIL LIGHT LENS, RED - Call your local BRP dealership

A33702179000

$26.89

27

Bulb

520000758

$7.49

28

Gasket

A33717179000

Unavailable

29

Screw M4 X 35

A9390304035

Unavailable

30

NYLON NUT M6 - Call your local BRP dealership

A9035006000

$8.06

31

Gasket, Neoprene 2000Mm Long

219704476

$12.64

32

PAN HEAD SCREW PHILLIPS M6 X 15 - Call your local BRP dealership

A9370106015k13

Unavailable

34

Hexagonal Head Screw

210262050

$1.74

35

Hex. Flange Screw M6 X 10 | Not Illustrated

A9600006010

$6.45

37

Tail Light Rubber Ring

A33713179000

Unavailable

38

Tail Light Rubber Ring Spacer

A33718179000

Unavailable

39

Dash Board Bracket

A64504179000

Unavailable

40

Phillips Screw M6 X 18

A9370106018k

Unavailable

41

PHILLIPS SCREW M6 X 60 - Call your local BRP dealership

A9370106060

$5.29

42

U Plate Nut

A903440600B

Unavailable

43

Washer M6

250200029

$1.83

44

NYLON NUT M6 - Call your local BRP dealership

A9035006000

$8.06

45

Not Available As Spare Part - Friction Washer

Unavailable

46

REAR COVER RUBBER - Call your local BRP dealership

A83406179000

$10.74
