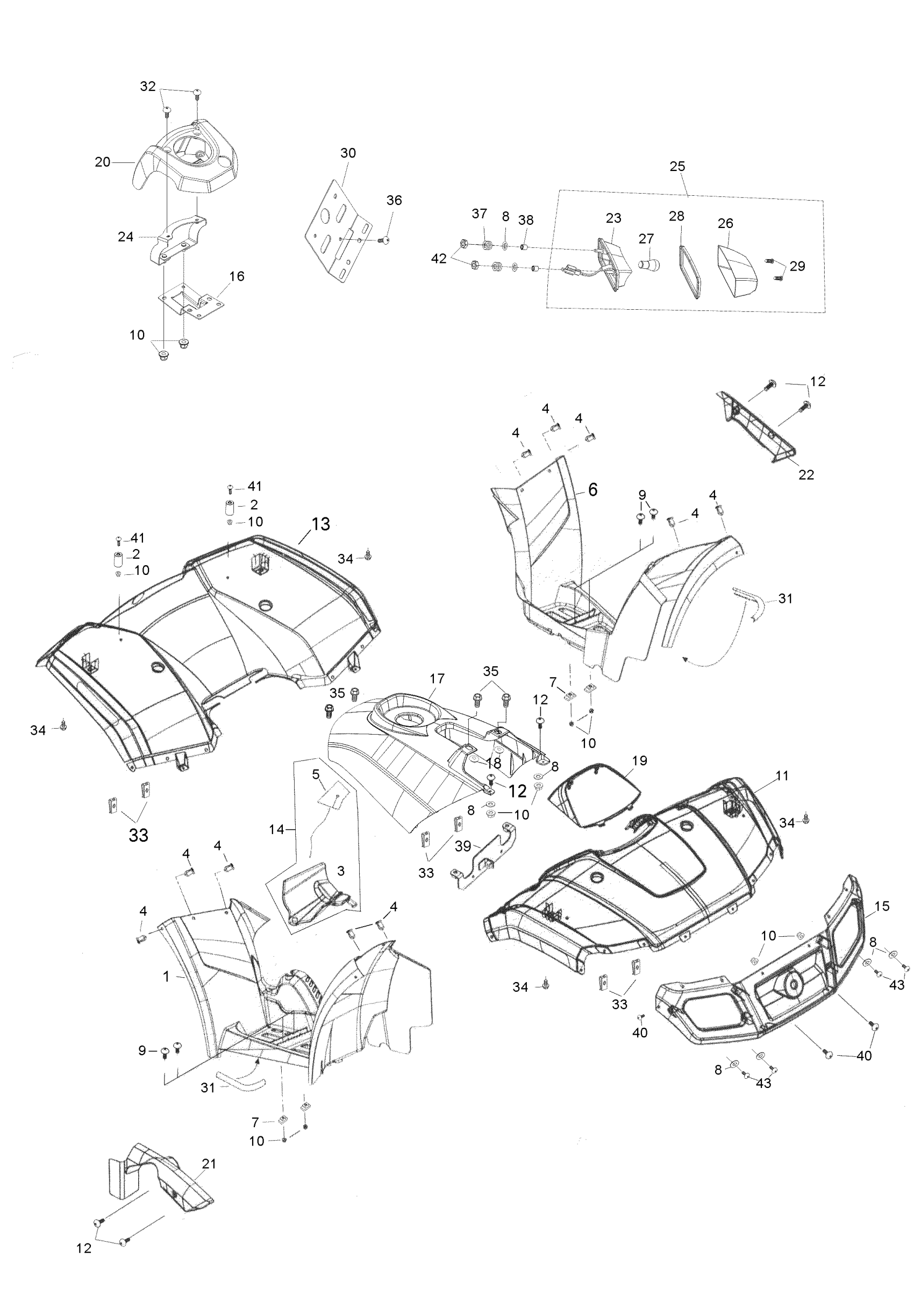

Can-Am Rally 175, 2007 Body And Accessories Europe Diagram

#

Description
Price

1

RH Footboard, Black

A64312179000

Unavailable

2

REAR COVER RUBBER - Call your local BRP dealership

A83406179000

$10.74

3

CHAIN COVER - Call your local BRP dealership

705000870

$11.06

4

Tuflok Plastic Rivet

293150230

$1.21

5

Reflective Sheet

705000563

Unavailable

6

LH Footboard

A6431317900A

Unavailable

7

Rubber Stopper

705000407

Unavailable

8

Washer M6

250200029

$1.83

9

PAN HEAD SCREW PHILLIPS M6 X 32 - Call your local BRP dealership

A9380006032k

Unavailable

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Front Fender, Red

A64301179000RD

Unavailable

11

Front Fender, Yellow

A64301179000YL

Unavailable

12

PAN HEAD SCREW PHILLIPS M6 X 25 - Call your local BRP dealership

A9370106025k

Unavailable

13

REAR FENDER, RED - Call your local BRP dealership

A83400179000RD

$115.35

13

Rear Fender, Yellow

A83400179000YL

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Front Fascia, Red

A64321179000RD

Unavailable

15

Front Fascia, Yellow

A64321179000YL

Unavailable

16

Gauge Holder

A53113179000

Unavailable

17

Dash Board, Red

A64501179001RD

Unavailable

17

DASH BOARD, YELLOW - Call your local BRP dealership

A64501179001YL

$33.05

18

Oval Washer

705005156

$4.85

19

CONSOLE COVER, RED - Call your local BRP dealership

A64502179000RD

$13.82

19

CONSOLE COVER, YELLOW - Call your local BRP dealership

A64502179000YL

$13.05

20

HANDBAR COVER - Call your local BRP dealership

A6421117900A

$13.82

21

RH PANEL - Call your local BRP dealership

A83505179000

$54.58

22

LH PANEL - Call your local BRP dealership

A83506179000

$54.58

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Speedometer Holder

A37212223000

Unavailable

25

TAIL LIGHT HOUSING - Call your local BRP dealership

A3370017900A

$25.35

26

Tail Light Lens

A3370217900A

$25.35

27

Tail Light Bulb

A3490617900A

Unavailable

28

Gasket

A33717179000

Unavailable

29

Screw M4 X 35

A9390304035

Unavailable

30

Bracket

A50357179000

Unavailable

31

Gasket, Neoprene 2000Mm Long

219704476

$12.64

32

PHILLIPS SCREW M6 X 12 - Call your local BRP dealership

A9370106012G

$2.89

33

U Plate Nut

A903440600B

Unavailable

34

Hexagonal Head Screw

210262050

$1.74

35

Hex. Flange Screw M6 X 10 | Not Illustrated

A9600006010

$6.45

36

HEXAGONAL WASHER FACE BOLT M6X12 - Call your local BRP dealership

A960000601210G

Unavailable

37

Tail Light Rubber Ring

A33713179000

Unavailable

38

Tail Light Rubber Ring Spacer

A33718179000

Unavailable

39

Dash Board Bracket

A64504179000

Unavailable

40

Phillips Screw M6 X 18

A9370106018k

Unavailable

41

PHILLIPS SCREW M6 X 60 - Call your local BRP dealership

A9370106060

$5.29

42

NYLON NUT M6 - Call your local BRP dealership

A9035006000

$8.06

43

PHILLIPS SCREW M6 X 18 - Call your local BRP dealership

A9370106018KL

$5.29
