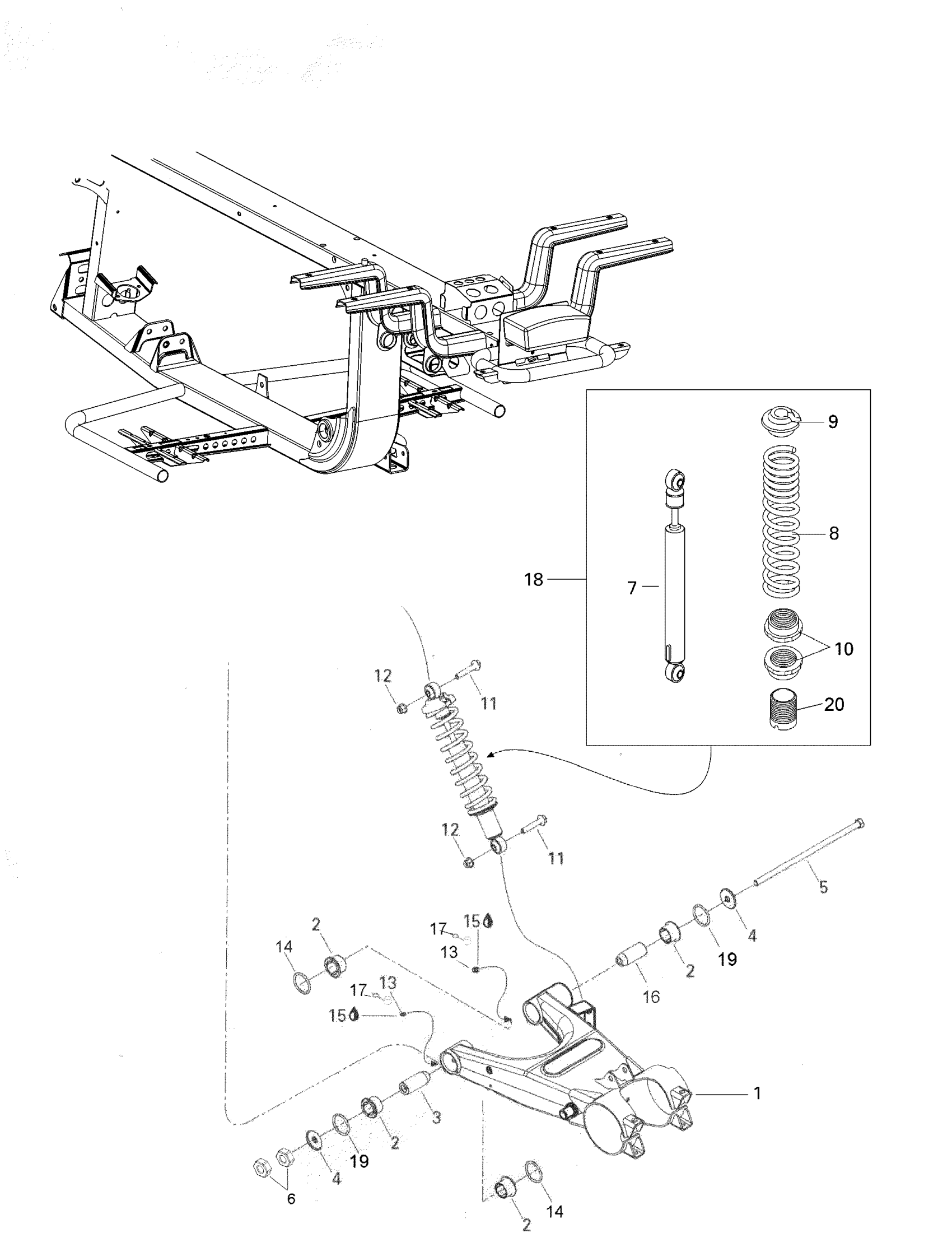

Can-Am Rally 175, 2007 Rear Suspension Europe Diagram
#
Description
Price
1
Swing Arm
A52100179001
Unavailable
2
CUSHION - Call your local BRP dealership
A52103179000
Unavailable
3
INNER BUSHING - Call your local BRP dealership
A52113179000
Unavailable
4
Thrust Washer
A904511245050
Unavailable
5
Hex. Screw M12 X 320
A920001232017
Unavailable
7
Rear Shock
A52404179000
Unavailable
8
Rear Spring
A52405179000
Unavailable
10
Spring Seat
706000197
Unavailable
12
Hex. Flange Nut
A9405010000L
Unavailable
15
Synthetic Grease, 400 G
293550010
Unavailable
16
Inner Bushing
A52119179000
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
20
Spring Seat Stopper
A51422179000
Unavailable
