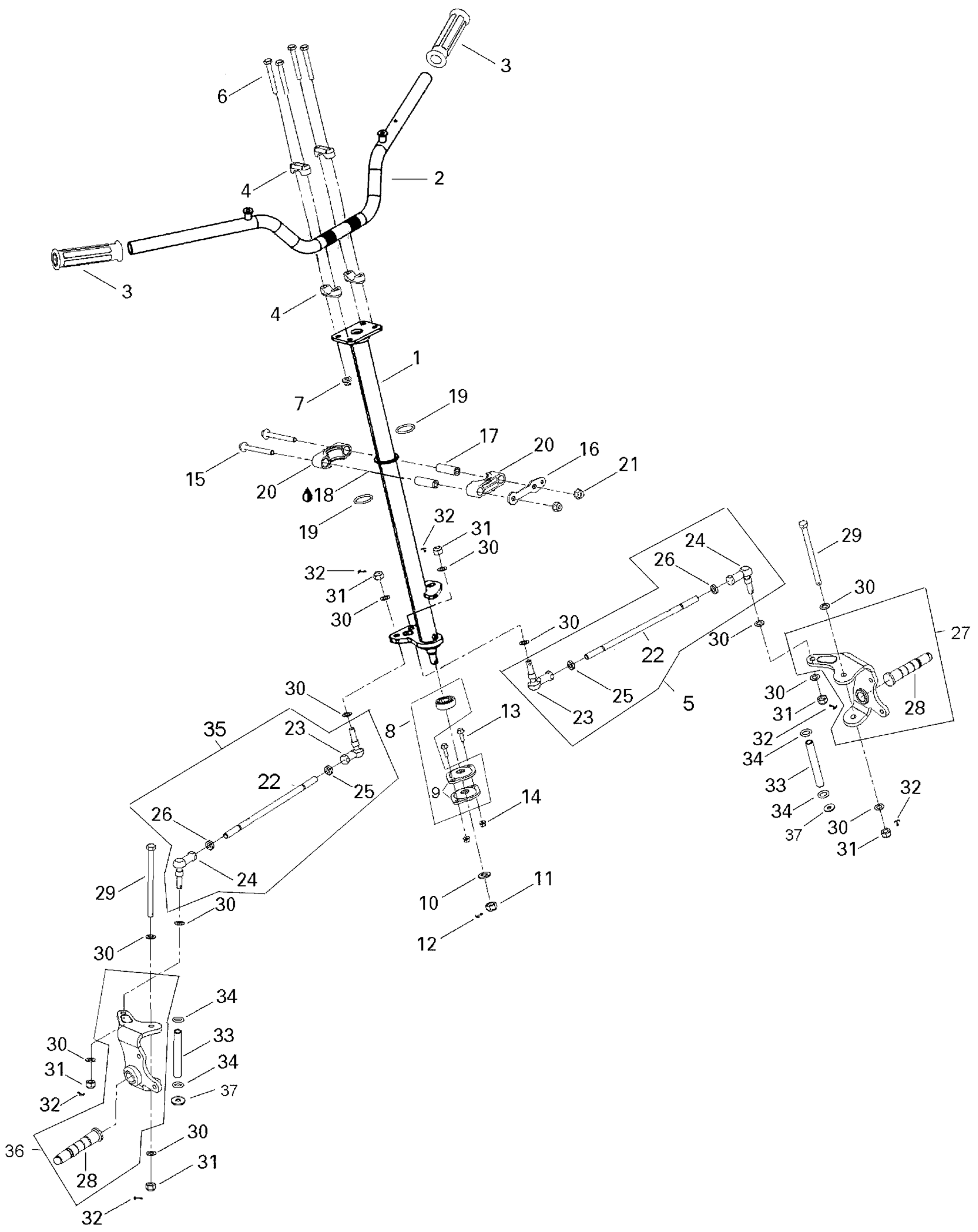

Can-Am Rally 175, 2007 Steering System Europe Diagram

#

Description
Price

1

Main Tube

A5110917900B

Unavailable

2

Handle Bar

A5310017900C

Unavailable

3

GRIP - Call your local BRP dealership

A53165179000

$10.74

4

Steering Support

709400919

$20.74

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Hex. Screw M8 X 55

207085544

$1.62

7

Hex. Elastic Flange Nut M8

233281416

$1.25

8

Ball Bearing

709400439

$18.43

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Flat Washer 12 mm

234021410

$0.68

11

Hexagonal Nut M12

A9035012000G

$6.45

12

Cotter Pin

211400017

$0.25

13

Hex. Flange Screw M6 X 20

207662044

$1.66

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Hex. Flange Screw M8 X 70

207687044

$6.11

16

STOPPER PLATE - Call your local BRP dealership

709400053

$10.57

17

BUSHING - Call your local BRP dealership

709400072

Unavailable

18

Synthetic Grease, 400 G

293550010

Unavailable

19

O-Ring

293300068

$5.29

20

Half Bushing

709400471

$13.63

21

Hex. Flange Elastic Nut M8

233281414

$1.14

22

Tie Rod

715900006

Unavailable

23

RH Ball Joint

709400148

$36.89

24

LH Ball Joint

709400149

$38.43

25

RH Threaded Hex. Jam Nut M10

732610010

$0.72

26

LH Threaded Hex. Jam Nut M10

250100016

$0.72

27

LH Knuckle

709400108

$124.58

28

Not Available As Spare Part - Friction Washer

Unavailable

29

AXLE SCREW M10 X 145 - Call your local BRP dealership

709400150

$10.74

30

Washer

503175800

$3.26

31

Elastic Flange Nut M10

232501416

$1.25

32

Cotter Pin

211400013

$0.32

33

Pivot Bushing

709400110

Unavailable

34

O-RING - Call your local BRP dealership

414549700

$0.74

35

Not Available As Spare Part - Friction Washer

Unavailable

36

RH Knuckle

709400109

Unavailable

37

WASHER - Call your local BRP dealership

A941051030008

$7.66
