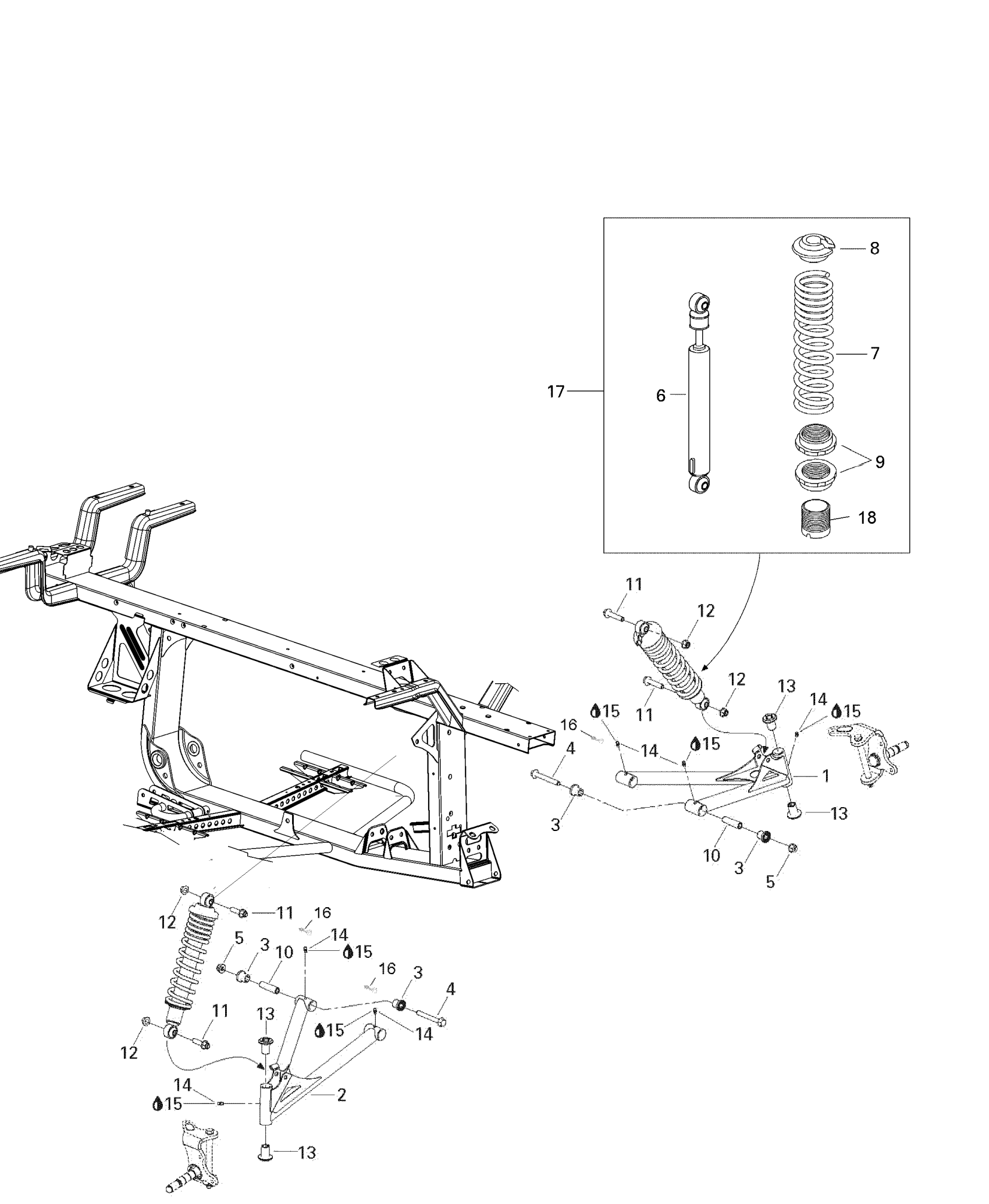

Can-Am Rally 175, 2007 Front Suspension Diagram

#

Description
Price

1

LH ARM - Call your local BRP dealership

706200175

$141.51

2

RH Arm

706200176

Unavailable

3

Cushion

706200063

Unavailable

4

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

A9600010080

$9.20

5

Elastic Flange Nut M10

A9035110000

Unavailable

6

Front Shock

A51411179000

Unavailable

7

Front Spring

A51401179000

Unavailable

8

Spring Stopper

A51402179000

Unavailable

9

Spring Seat

706000197

Unavailable

10

INNER BUSHING - Call your local BRP dealership

706200177

$13.82

11

Hex. Flange Screw M10 X 50

A9600010050

Unavailable

12

Elastic Flange Nut M10

A9035110000L

Unavailable

13

CUSHION - Call your local BRP dealership

706200169

$8.60

14

Grease Fitting

408200700

$2.80

15

Synthetic Grease, 400 G

293550010

Unavailable

16

GREASE VALVE CAP - Call your local BRP dealership

A9650206000

$5.51

17

Front Shock Ass'y

A51400179000

Unavailable

18

Spring Seat Stopper

A51422179000

Unavailable
