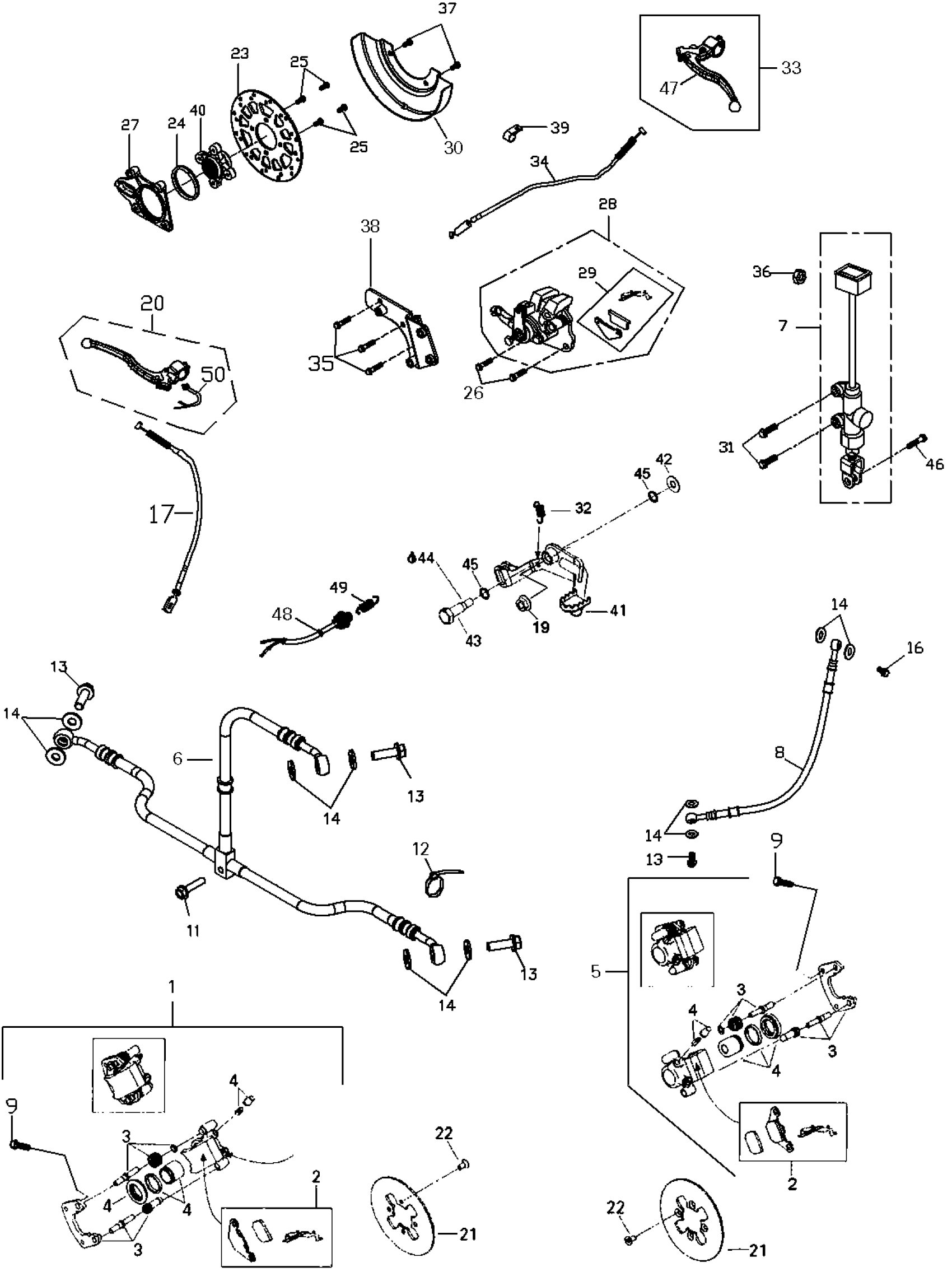

Can-Am Rally 175, 2007 Hydraulic Brakes Europe Diagram

#

Description
Price

1

RH CALIPER ASS'Y - Call your local BRP dealership

A4500017900A

$169.97

2

FRONT BRAKE PAD SET - Call your local BRP dealership

A45120179000

$23.05

3

BOOT KIT - Call your local BRP dealership

705600286

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

LH Caliper Ass'y

A4520017900A

Unavailable

6

Brake Hose Ass'y

A545017900B

Unavailable

7

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership

A4350017900A

Unavailable

8

Rear Brake Hose

A4346017900A

Unavailable

9

Hex. Flange Screw M8 X 16, Scotch Grip

A9600008016GL

Unavailable

11

SOCKET SCREW M6 X 35 - Call your local BRP dealership

A9200306035

$5.29

12

Tie-Rap 180 mm

414115200

$0.09

13

Banjo Bolt

A45456107000

Unavailable

14

COPPER WASHER - Call your local BRP dealership

A941031015012

$5.35

16

Banjo Bolt

A43501197000

Unavailable

17

REAR BRAKE CABLE - Call your local BRP dealership

A43490179000

$36.12

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

RH Brake Lever Ass'y

A53170179000

Unavailable

21

FRONT BRAKE DISC - Call your local BRP dealership

705600223

$24.58

22

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

23

BRAKE DISC - Call your local BRP dealership

A4501519700A

$87.66

24

CIRCLIP - Call your local BRP dealership

A945117800S

$14.58

25

SCREW-HEX.FLANGE - Call your local BRP dealership

A45016146000

Unavailable

26

SCREW-HEX.FLANGE M10 X 28 - Call your local BRP dealership

A960001002814GL

$5.29

27

REAR AXLE ADJUSTER BRACKET - Call your local BRP dealership

A52120179000

$56.12

28

REAR CALIPER ASS'Y - Call your local BRP dealership

A4300017900A

$200.74

29

REAR BRAKE PAD KIT - Call your local BRP dealership

A43120179000

$29.97

30

Rear Brake Disc Cover

A45018179000

Unavailable

31

Hex. Flange Screw M8 X 25

207682544

$0.90

32

BRAKE PEDAL SPRING - Call your local BRP dealership

705600288

$8.43

33

LH Brake Lever Ass'y

A5317917900A

Unavailable

34

BRAKE CABLE - Call your local BRP dealership

A4347017900A

$33.82

35

Socket Head Screw M8 X 16

205081660

Unavailable

36

NYLON NUT M6 - Call your local BRP dealership

A9035006000

$8.06

37

Hex. Flange Screw

207681244

$0.69

38

REAR MASTER CYLINDER BRACKET - Call your local BRP dealership

A43502179000

$39.20

39

Open Clamp

A11352179000

Unavailable

40

BUSHING - Call your local BRP dealership

A42106179000

$58.43

41

Brake Pedal

A4650017900B

Unavailable

42

WASHER - Call your local BRP dealership

A941051225010

$5.29

43

PIVOT - Call your local BRP dealership

705600201

$13.82

44

Synthetic Grease, 400 G

293550010

Unavailable

45

O-RING - Call your local BRP dealership

293300053

$5.35

46

SOCKET HEAD SCREW M6 X 41 - Call your local BRP dealership

A9120006041

$9.91

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Brake Light Switch

A35350108000

Unavailable

49

STOP SWITCH SPRING - Call your local BRP dealership

A35357197000

$7.66

50

RH BRAKE SWITCH WIRE - Call your local BRP dealership | Europe

A3534016900A

$15.35
