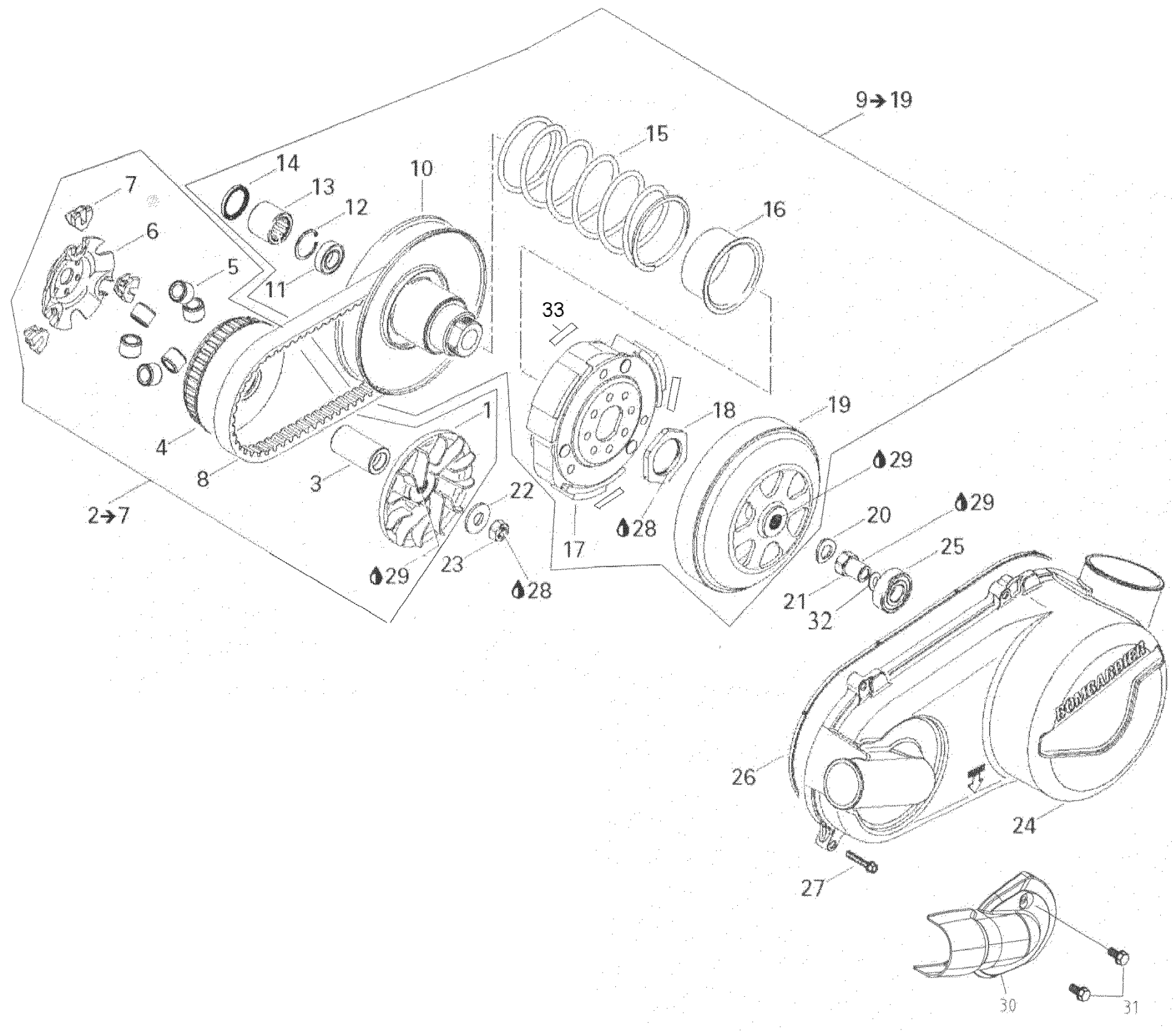

Can-Am Rally 175, 2007 Pulley System Diagram

#

Description
Price

1

Fixed Pulley

711280092

Unavailable

2

CVT DRIVE UNIT ASS?Y - Call your local BRP dealership | Includes 2 To 7

420296785

Unavailable

3

Spacer

420233779

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

ROLLER KIT - Call your local BRP dealership

420281310

$65.35

6

Not Available As Spare Part - Friction Washer

Unavailable

7

SLIDE PIECE, 3 PIECES - Call your local BRP dealership

420281320

Unavailable

8

BELT-V - Call your local BRP dealership

A23100179000

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

CVT DRIVEN UNIT - Call your local BRP dealership

420684011

Unavailable

11

BALL BEARING - Call your local BRP dealership

420632420

Unavailable

12

RETAINING RING - Call your local BRP dealership

420945615

$9.97

13

Sprag Clutch

420659400

Unavailable

14

OIL SEAL - Call your local BRP dealership

420631090

$13.82

15

SPRING - Call your local BRP dealership

420239402

$38.43

16

Spring Seat

420627172

Unavailable

17

CLUTCH ASS?Y - Call your local BRP dealership

420659252

$192.99

18

HEX. NUT M10 - Call your local BRP dealership

420242040

$11.45

19

CLUTCH DRUM - Call your local BRP dealership

420259664

Unavailable

20

LOCK WASHER - Call your local BRP dealership

420945754

$1.35

21

NUT M12 - Call your local BRP dealership

420242230

Unavailable

22

Thrust Washer

420227180

$12.91

23

HEX. NUT M12 - Call your local BRP dealership

420242515

$7.66

24

Transmission Cover

A11341179000

Unavailable

25

BALL BEARING - Call your local BRP dealership

A961006203LLU

$15.35

26

Rubber Gasket

A11359179000

Unavailable

27

HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership

420241941

$3.82

28

Loctite 243, 10 ml

293800060

$20.77

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

CVT Cover

A11347179000

Unavailable

31

Torx Screw M6 X 12

A9151006012

Unavailable

32

O-RING - Call your local BRP dealership

293300058

$5.35

33

SPRING PLATE - Call your local BRP dealership

A22540201000

$7.66
