Partiron

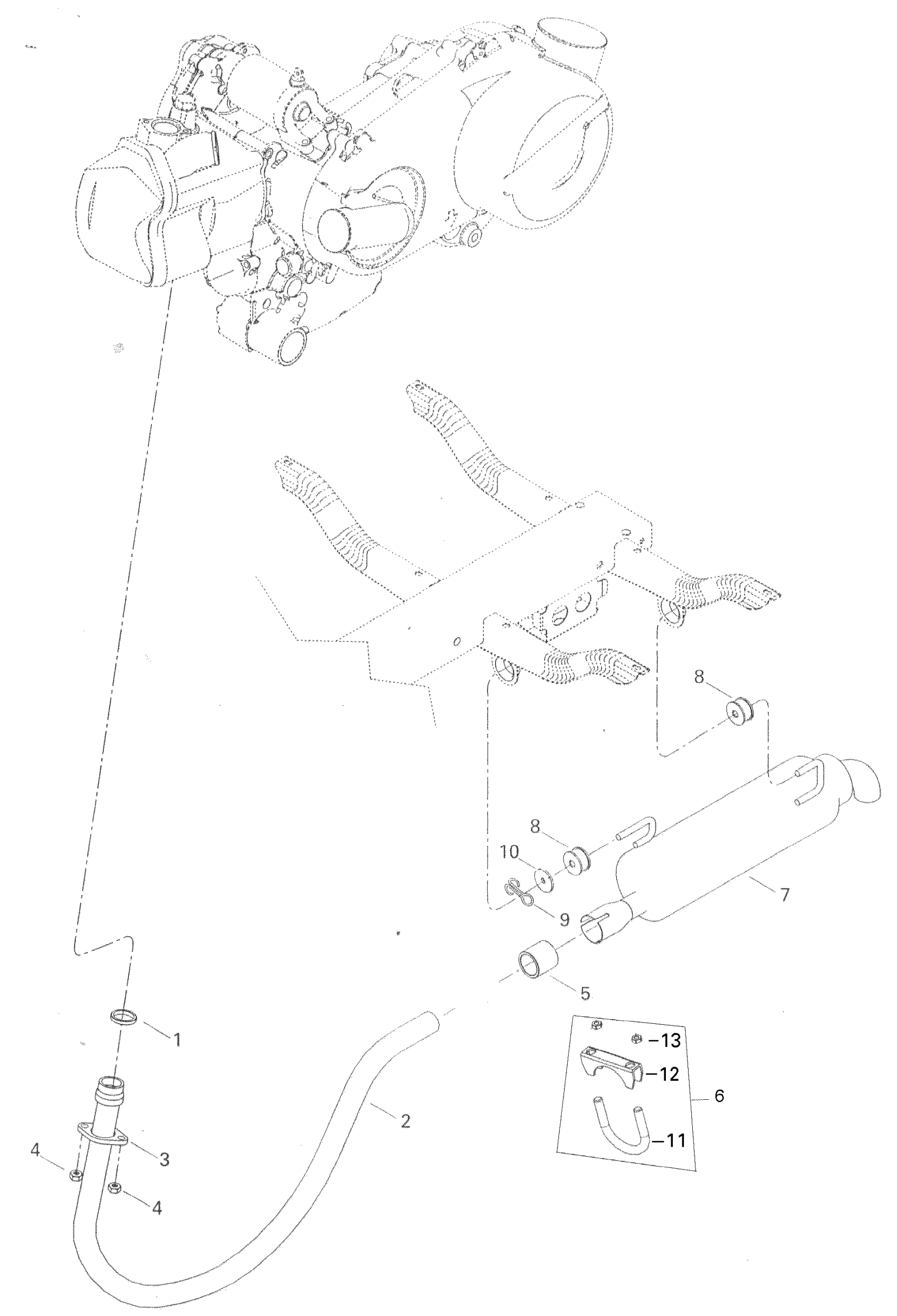

Can-Am Rally 175, 2007 Exhaust System Diagram

#

Description
Price

1

PIPE GASKET - Call your local BRP dealership

707600239

$10.74

2

Tuned Pipe

707600199

$55.35

3

Seal Ring

707600174

Unavailable

4

Hex. Elastic Flange Nut M8

233281416

$1.25

5

PIPE GASKET - Call your local BRP dealership

707600175

$22.28

6

U-CLAMP - Call your local BRP dealership

293650148

$6.89

7

TUNED PIPE ASS?Y - Call your local BRP dealership

A18321179000

$156.12

8

Anti-Vibration Rubber

707600702

$8.34

9

Cotter Pin

211400017

$0.25

10

WASHER - Call your local BRP dealership

250200030

$1.35

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable
